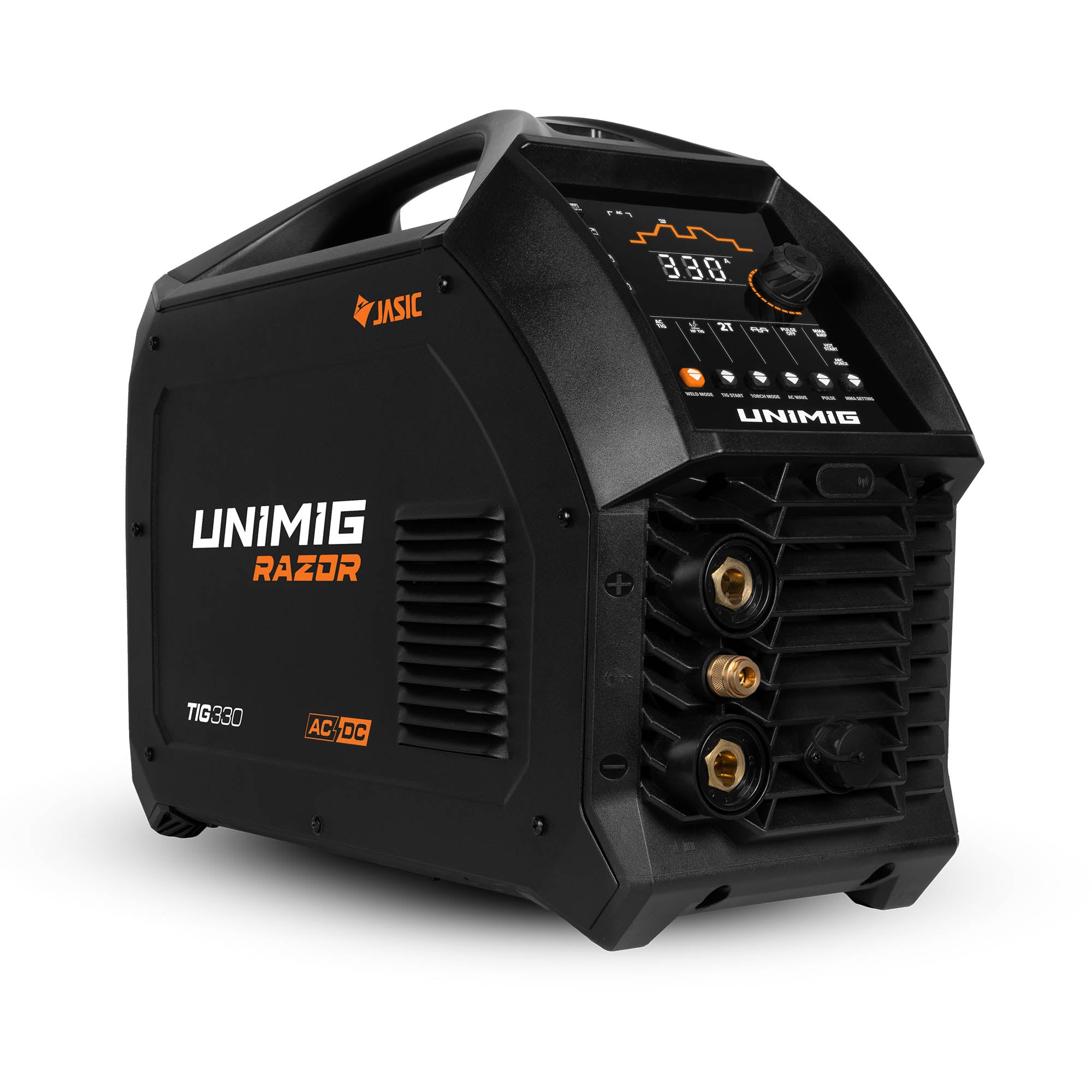

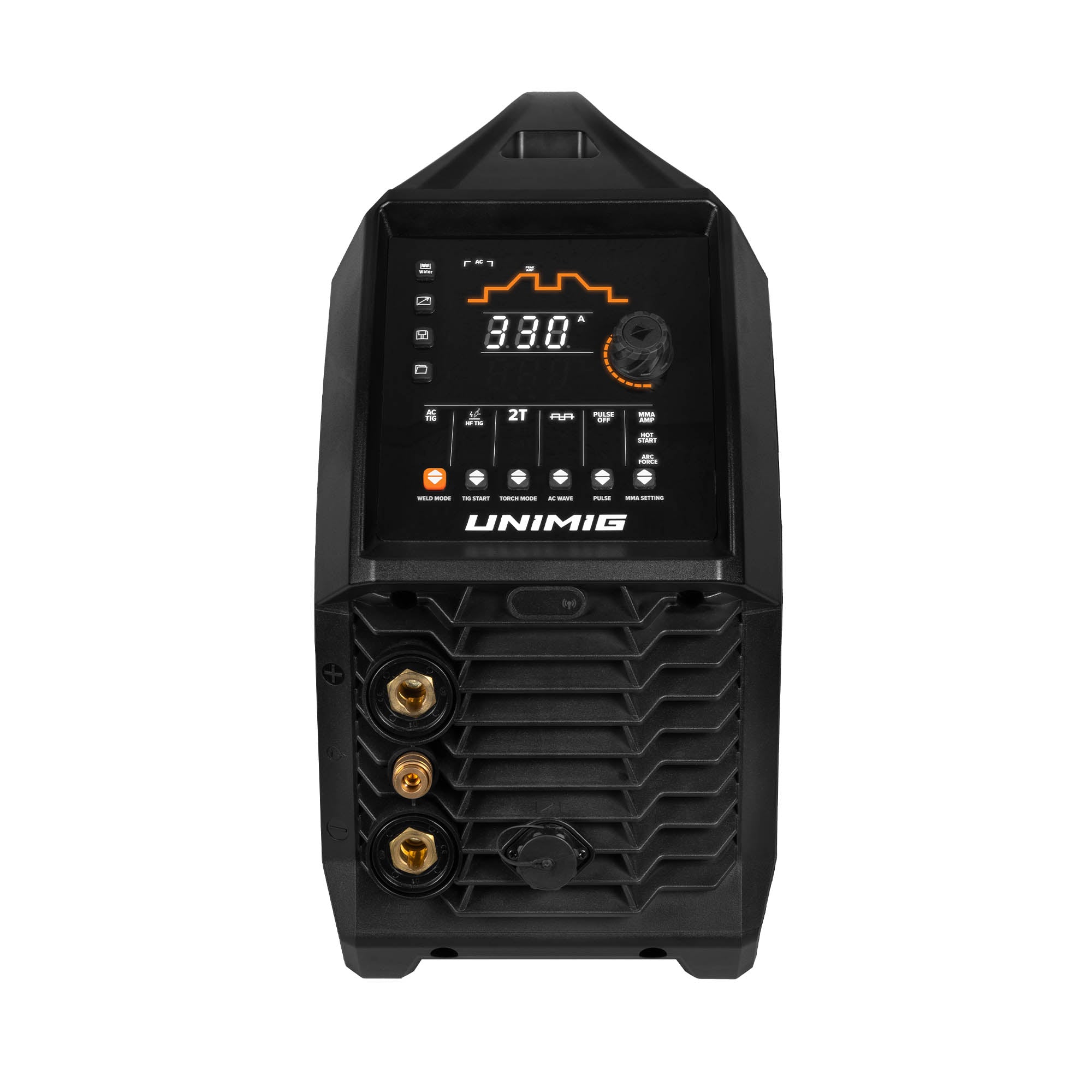

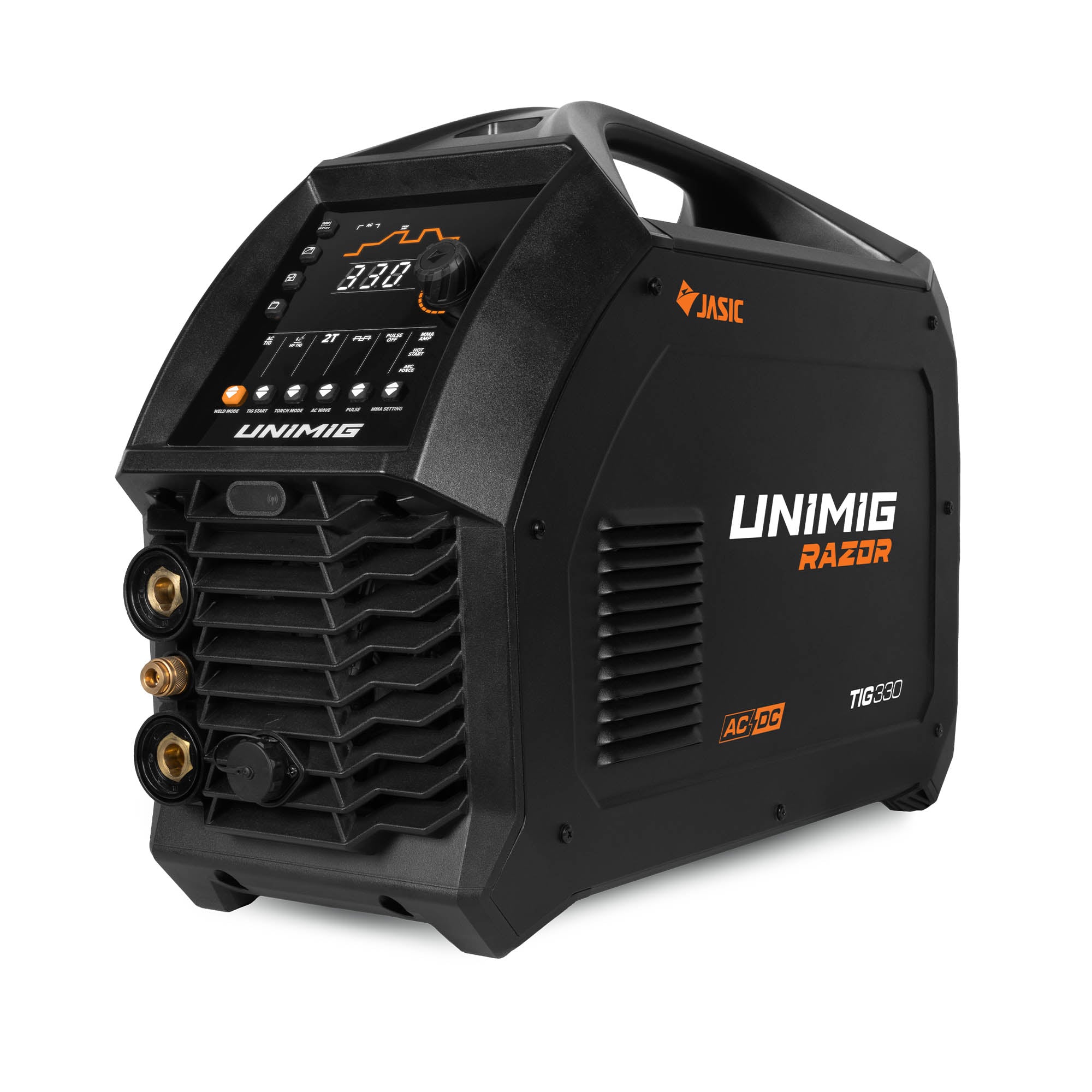

Unimig RAZOR TIG 330 AC/DC Welder

• Effortlessly weld any metal with the high-frequency AC/DC TIG
• The ultimate combination of AC and DC  with mixed arc settings
• Switch your AC welds to suit your needs with the choice of three waveforms

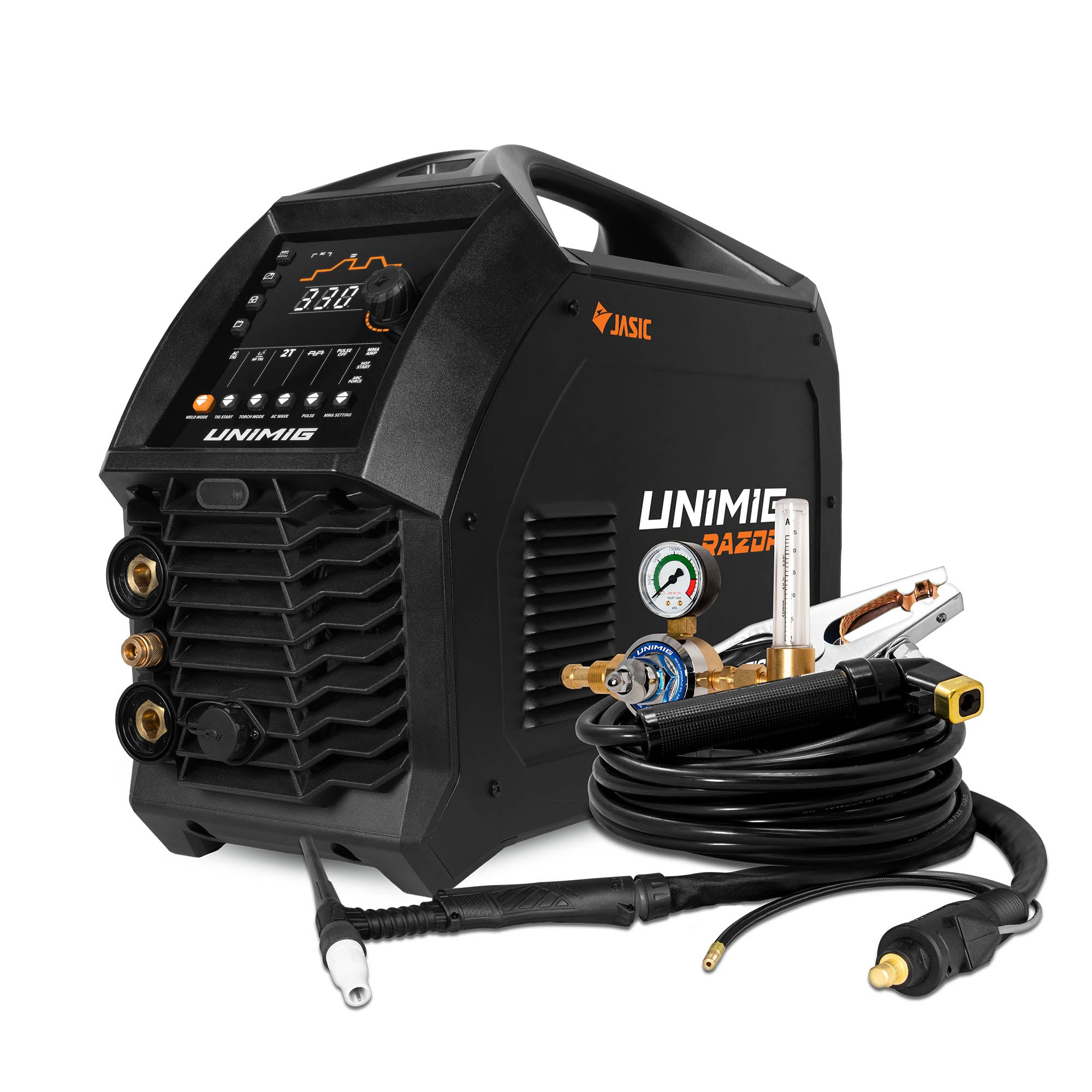

In the box:

RAZOR TIG 330 AC/DC Welder
4m T2 TIG Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Flowmeter Regulator
2.5m Gas Hose with fittings
Operating Manual

Technical Data
SKU: U11021
Primary Input Voltage: 415V Three-Phase
Supply Plug: Unplugged (32A Recommended)
Ieff (A): 10
Rated Output: 20A/10.8V – 330A/23.2V
No Load Voltage: 71V
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 20
Dinse Connectors: 35/50
Standard Compliance: AS 60974.1
Welds:
– TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
– MMA: Mild Steel, Stainless Steel, Cast Iron
Warranty: 5 Years

TIG Specifications
Arc Ignition Type: High-Frequency, Lift Arc
Process Type: AC TIG, DC TIG, Pulsed AC, Pulsed DC, Mixed AC/DC
DC Welding Current Range: 10–330A
AC Welding Current Range: 20–330A
Duty Cycle @ 40°C:
30% @ 330A
60% @ 233A
100% @ 181A
Welding Thickness Range: 1–16mm

MMA Specifications
Welding Current Range: 10–270A
Duty Cycle @ 40°C:
30% @ 270A
60% @ 190A
100% @ 148A
Electrode Range: 2.5–4.0mm
Welding Thickness Range: 2–16mm

Size & Weight
Dimensions (LxWxH): 568 × 230 × 416 mm
Weight: 23.8 kg
