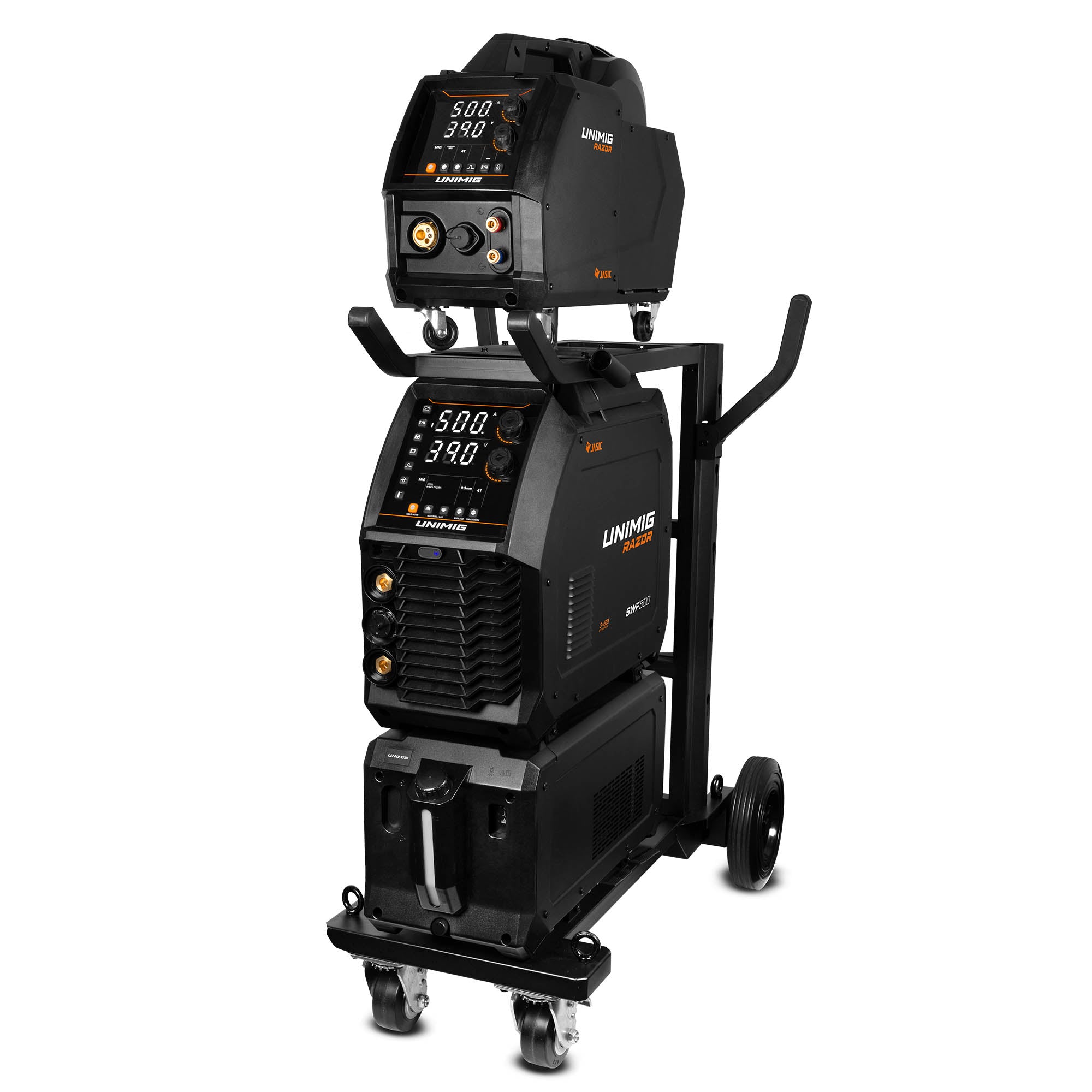

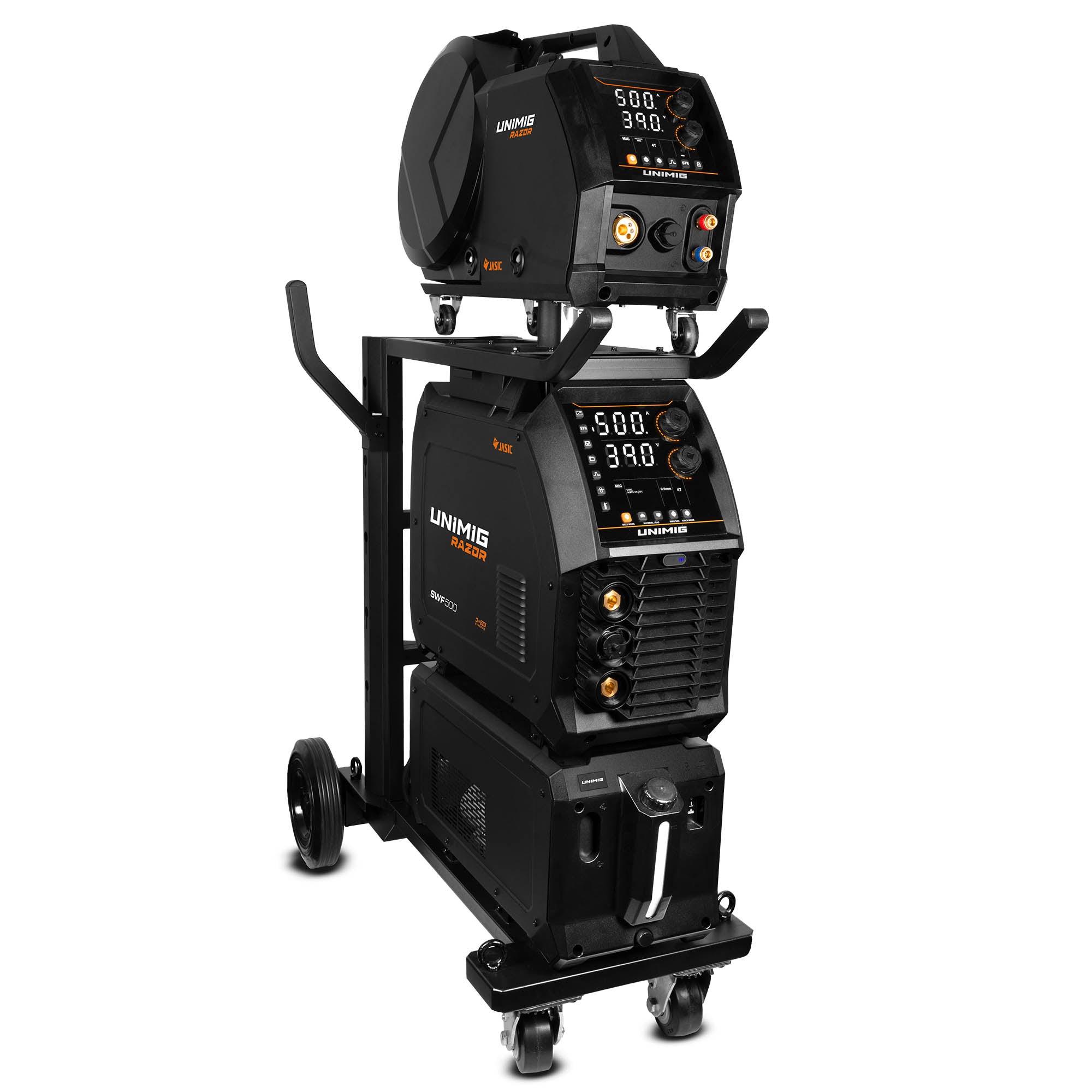

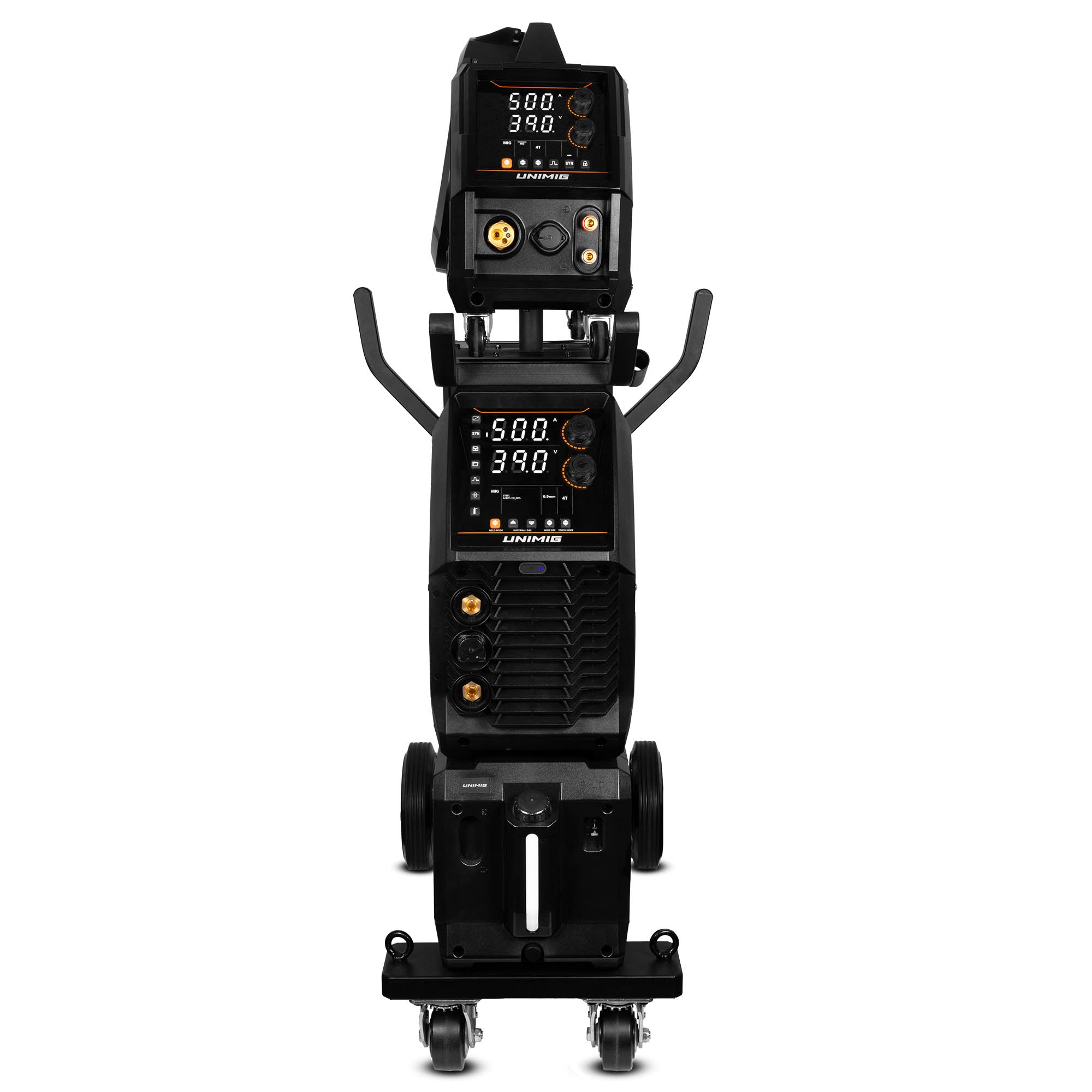

UNIMIG RAZOR SWF 500 Water-Cooled Welder
Couldn't load pickup availability
Superior performance even in the harshest conditions, this powerful water-cooled workshop machine delivers nothing less than top-tier weld quality.
* A separate wire feeder gives extra manoeuvrability
* Push-Pull gun ready for heavy-duty welding
* 4 geared wire drive system for the smoothest wire feeding experience
In the box:
RAZOR SWF 500 Water-Cooled Welder
4m M580 Digital Water-Cooled MIG Torch
4m Twist Lock Electrode Holder
4m 500A Earth Clamp & Lead
Twin Gauge Argon Regulator
1.8m Quick-Connect Gas Hose
Operating Manual
2 x 0.8-0.9mm V Groove Rollers
2 x 1.0-1.2mm V Groove Rollers
2 x 0.8-0.9mm F Groove Rollers
2 x 1.0-1.2mm F Groove Rollers
4 x 1.0-1.2mm U Groove Rollers
Smart-Set MIG
Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
Multi-Process
Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.
4 Geared Wire Drive
The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.
Digital Control MIG Torch
Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.
TECHNICAL DATA
SKU: U11234 (Water-Cooled)
Primary Input Voltage: 415V Three-Phase
Supply Plug: Unplugged (32A Recommended)
Ieff (A): 22.0
Imax (A): 42.8
Rated Output: 20–500A
No Load Voltage (V): 82
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 40
Dinse Connector: 35/50
Standard: AS 60974.1
Welds:
MIG - Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
MMA - Mild Steel, Stainless Steel, Cast Iron
TIG - Mild Steel, Stainless Steel, Copper, Silicon Bronze
Warranty: 5 Years
MIG SPECIFICATIONS
MIG Welding Current Range: 30–500A
MIG Duty Cycle @ 40°C:
40% @ 500A
60% @ 408A
100% @ 316A
MIG Wire Size Range: 0.8–1.6mm
MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
MIG Welding Thickness Range: 1–30mm
Drive Roller Size: 37/24
TIG SPECIFICATIONS
TIG Function Type: DC Lift Arc
TIG Welding Current Range: 20–500A
TIG Duty Cycle @ 40°C:
40% @ 500A
60% @ 408A
100% @ 316A
TIG Welding Thickness Range: 1–10mm
MMA SPECIFICATIONS
STICK Welding Current Range: 10–500A
STICK Duty Cycle @ 40°C:
40% @ 500A
60% @ 408A
100% @ 316A
STICK Electrode Range: 2.5–6.0mm
STICK Welding Thickness Range: 2–20mm
SIZE & WEIGHT
Dimensions (mm): 1520 x 520 x 980
Power Source Weight (kg): 30.0
Separate Wire Feeder Weight (kg): 17.8
Trolley With Water Cooler Weight (kg): 46.85
