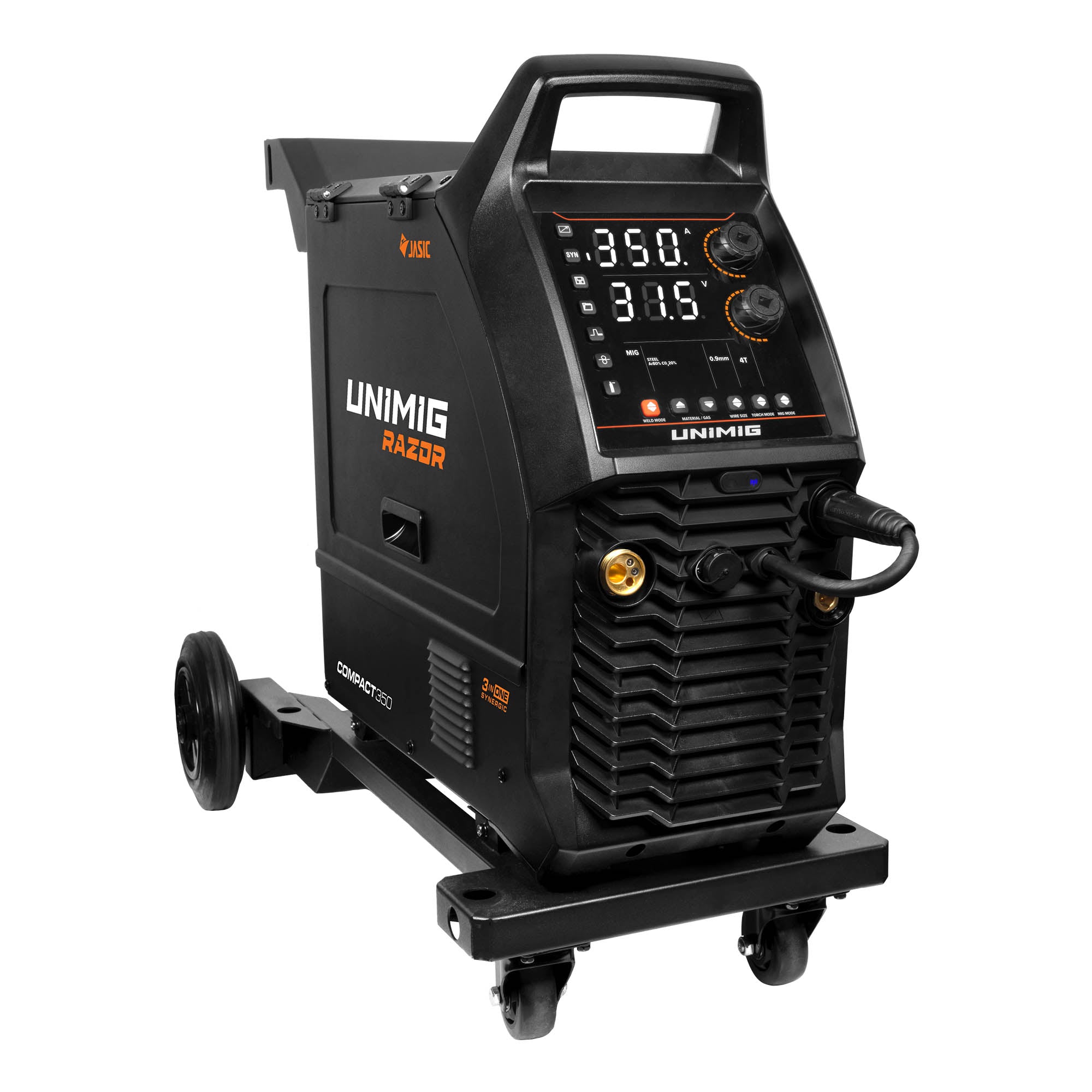

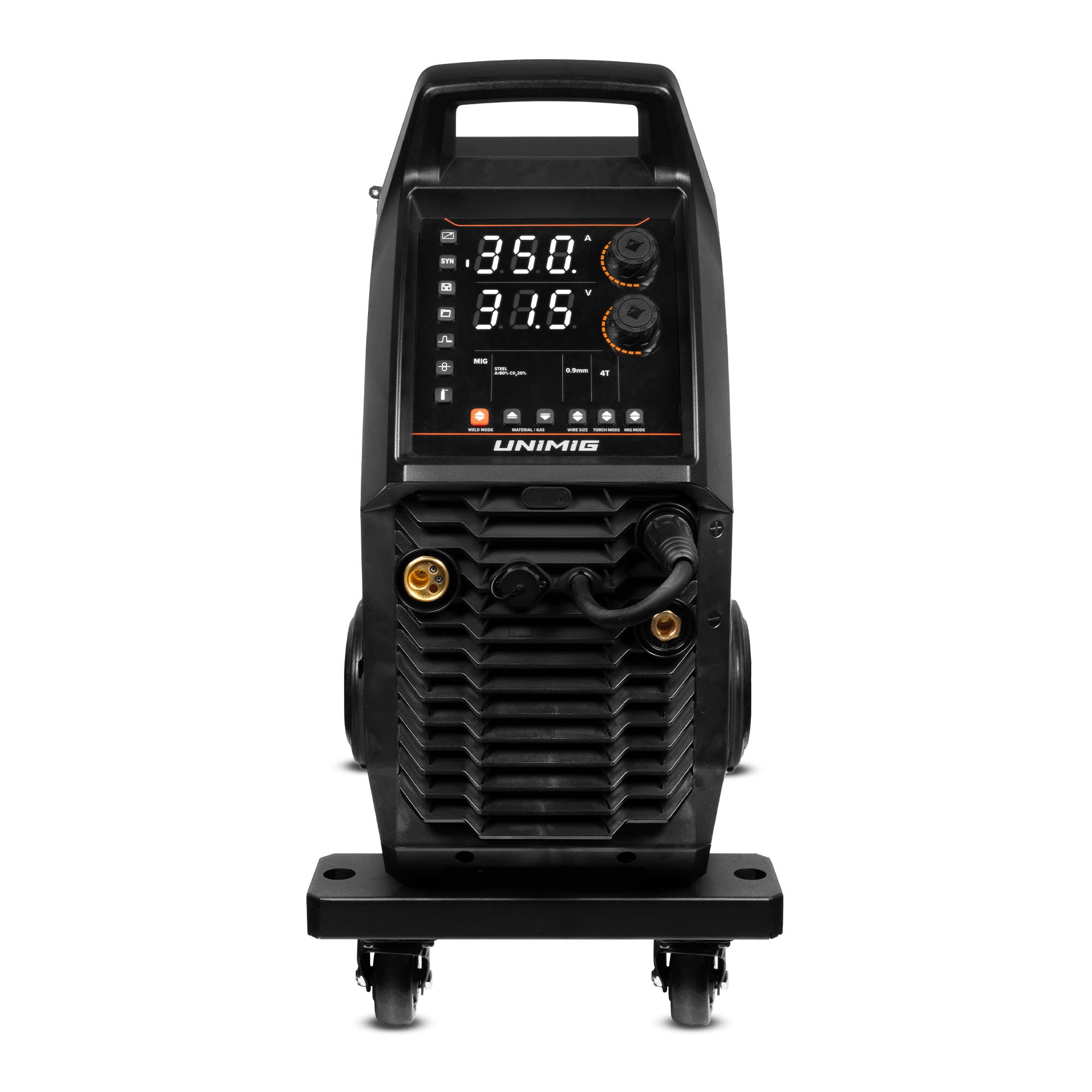

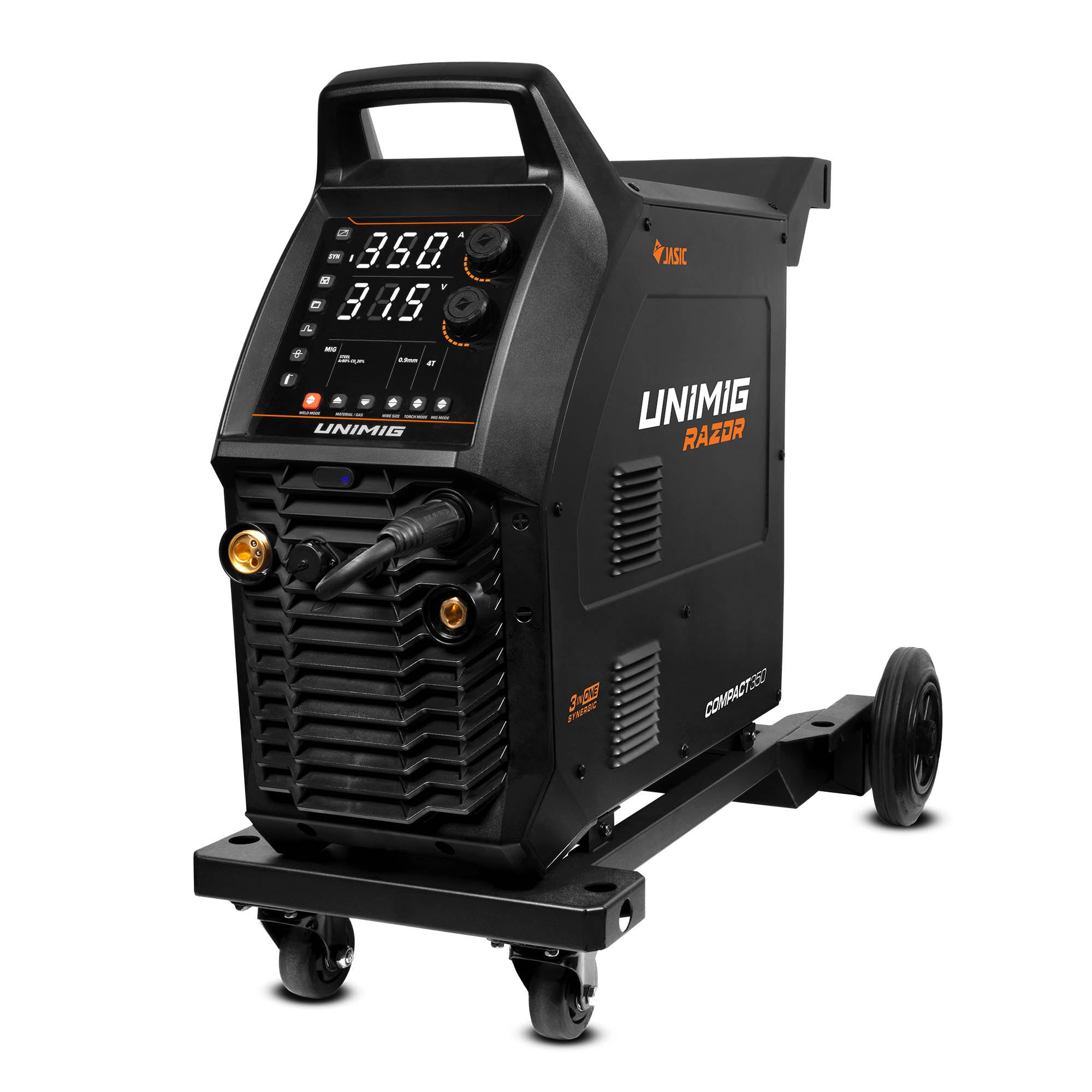

UNIMIG RAZOR COMPACT 350 Welder

SKU: U11218
$3,599.00 inc. GST
Finance Calculator

This multi-process machine gives you professional-grade welds in a compact design with a built-in trolley that's made for mobility.

 * Built-in trolley for flexibility
 * Push-Pull gun ready for heavy-duty welding
 * 4 geared wire drive system for the smoothest wire feeding experience

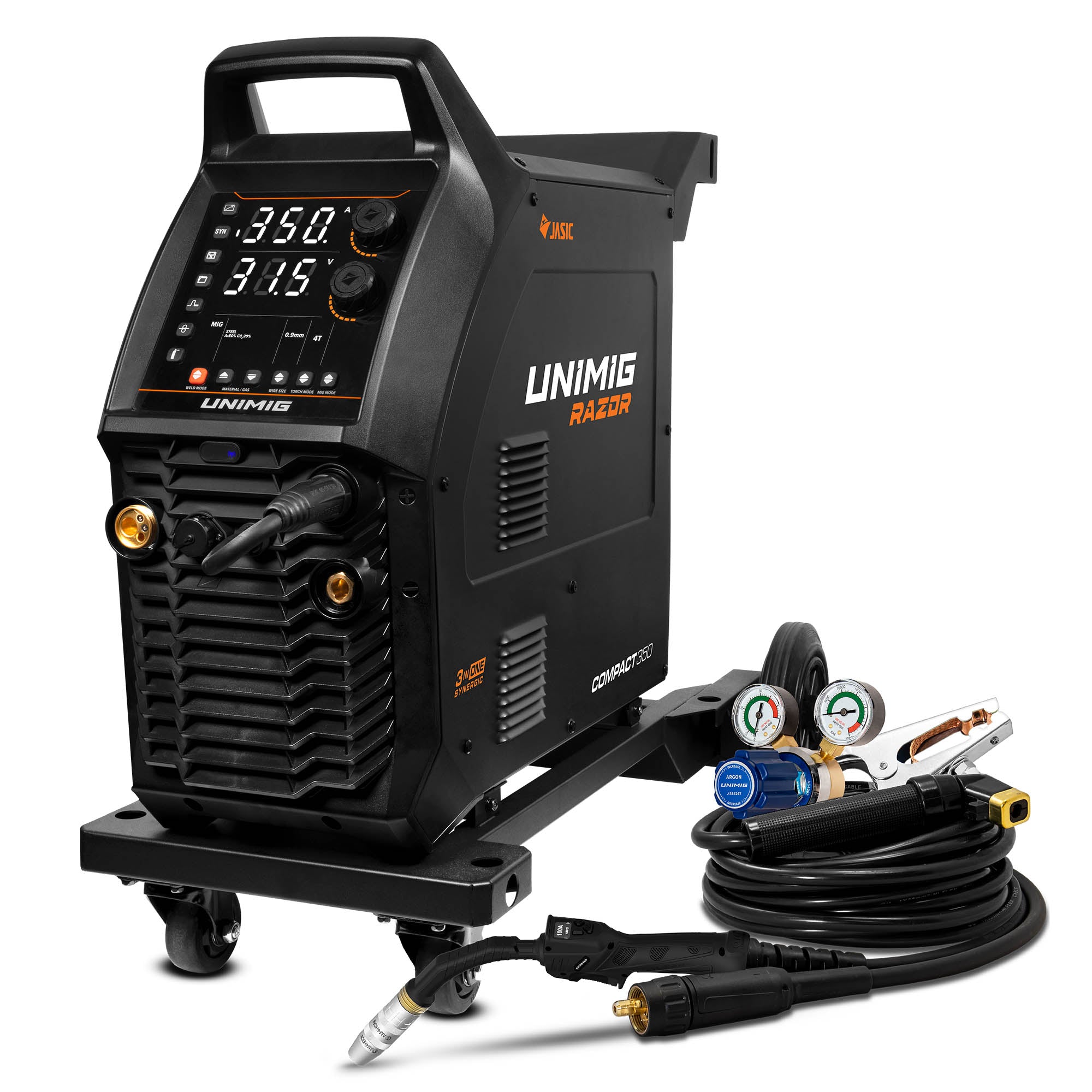

In the box:

  • RAZOR COMPACT 350 Welder
  • 4m M350 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 500A Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Quick-Connect Gas Hose
  • Operating Manual
  • 2 x 0.8-0.9mm V Groove Rollers
  • 2 x 1.0-1.2mm V Groove Rollers
  • 2 x 0.8-0.9mm F Groove Rollers
  • 2 x 1.0-1.2mm F Groove Rollers
  • 4 x 1.0-1.2mm U Groove Rollers

Smart-Set MIG

Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.

Multi-Process

Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.

Digital Control MIG Torch

Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.

4 Geared Wire Drive

The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.

TECHNICAL DATA

SKU: U11218
Primary Input Voltage: 415V Three-Phase
Supply Plug: Unplugged (32A Recommended)
Ieff (A): 12.6
Imax (A): 21.4
Rated Output: 30A/15.5V – 350A/31.5V
No Load Voltage (V): 80
Protection Class: IP23S
Insulation Class: H
Minimum Generator (kVA): 20
Dinse Connector: 35/50
Standard: AS/NZ60974-1
Welds:
  MIG - Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  TIG - Mild Steel, Stainless Steel, Copper, Silicon Bronze
  MMA - Mild Steel, Stainless Steel, Cast Iron
Warranty: 5 Years

MIG SPECIFICATIONS

MIG Welding Current Range: 30–350A
MIG Duty Cycle @ 40°C:
  40% @ 350A
  60% @ 285A
  100% @ 221A
MIG Wire Size Range: 0.6–1.2mm
MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
MIG Welding Thickness Range: 1–16mm
Drive Roller Size: 37/24

TIG SPECIFICATIONS

TIG Process Type: DC Lift Arc
TIG Welding Current Range: 20–350A
TIG Duty Cycle @ 40°C:
  40% @ 350A
  60% @ 285A
  100% @ 221A
TIG Welding Thickness Range: 1–10mm

MMA SPECIFICATIONS

STICK Welding Current Range: 20–350A
STICK Duty Cycle @ 40°C:
  40% @ 350A
  60% @ 285A
  100% @ 221A
STICK Electrode Range: 2.5–4.0mm
STICK Welding Thickness Range: 2–16mm

SIZE & WEIGHT

Dimensions (mm): 977 x 480 x 753
Weight (kg): 45.1
