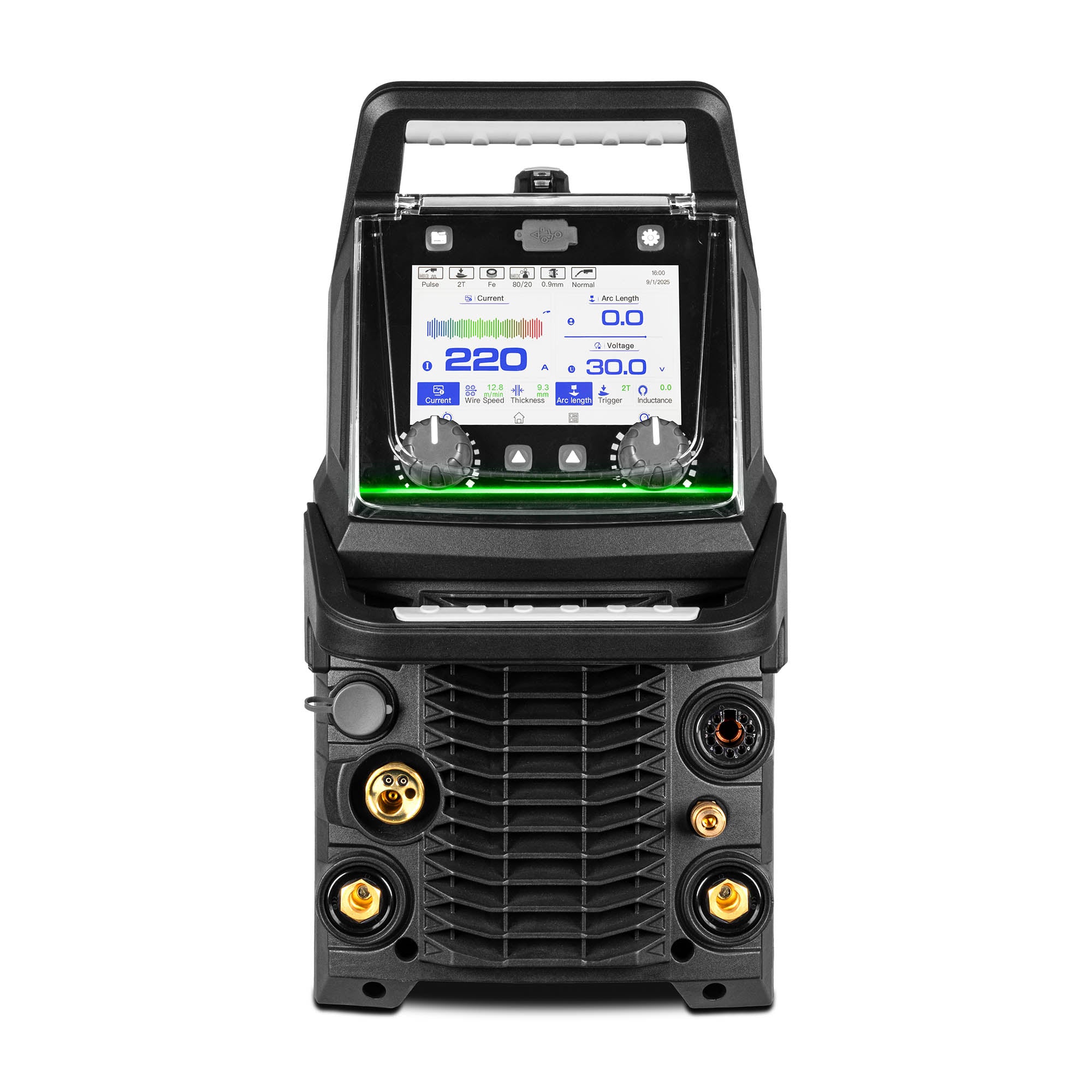

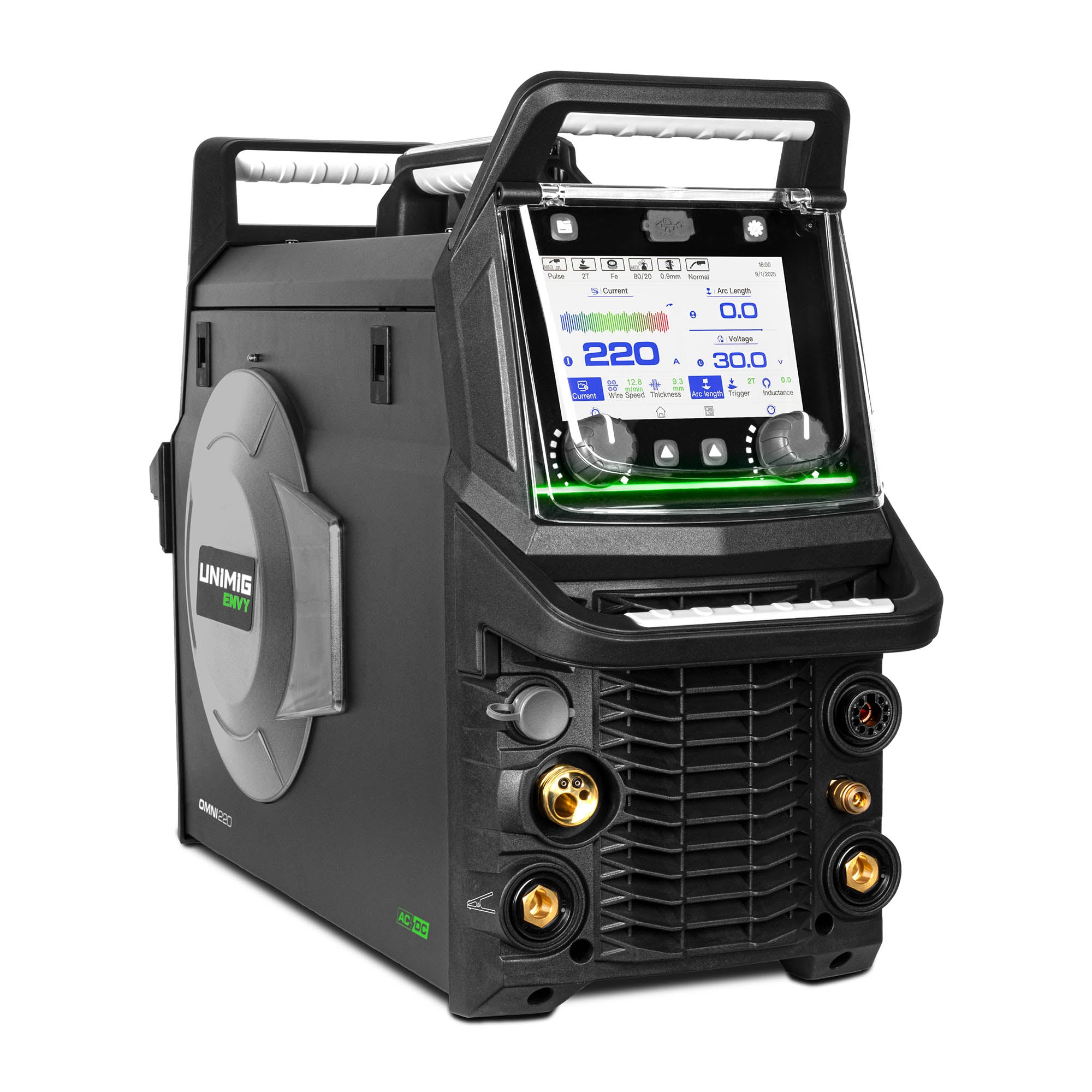

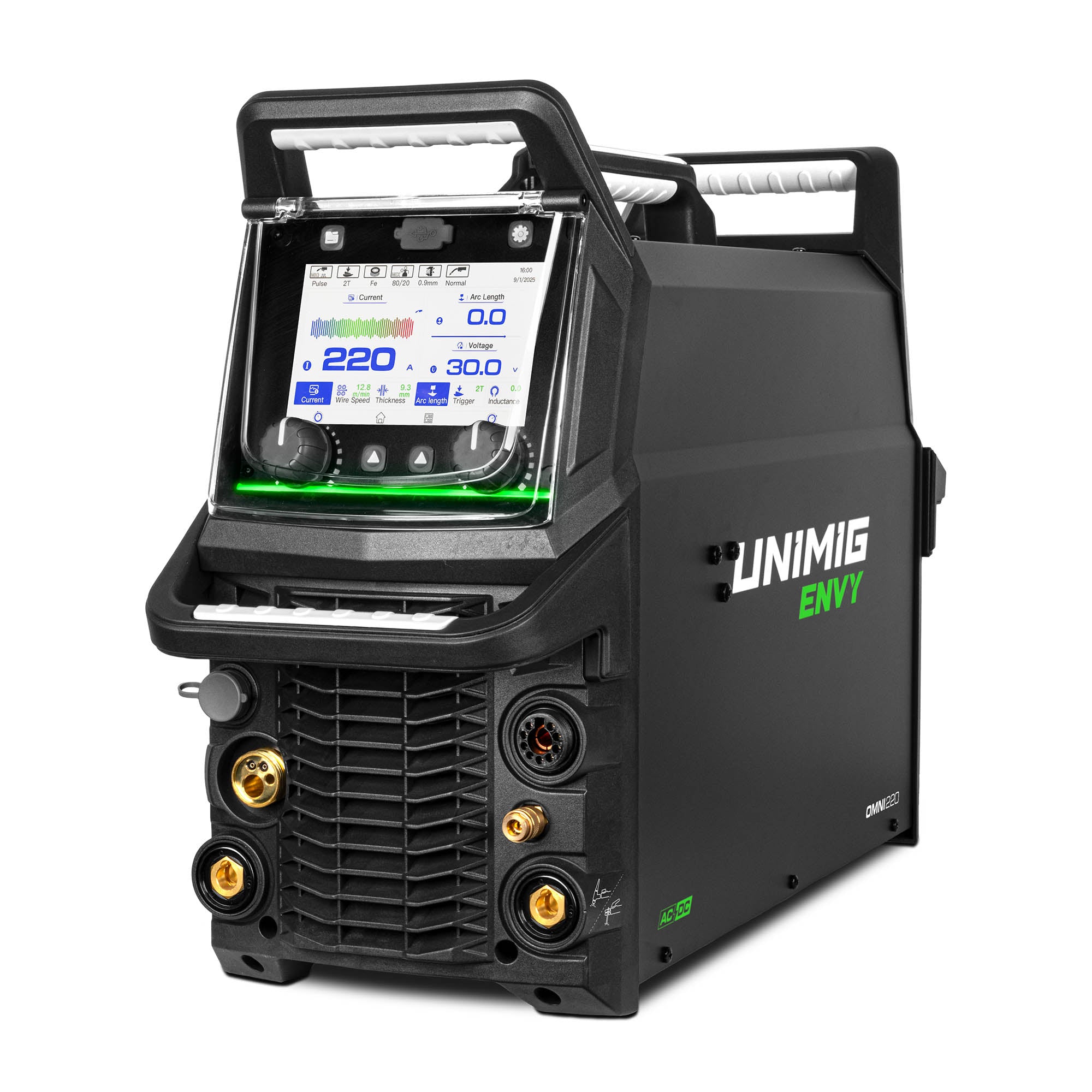

Unimig ENVY OMNI 220 AC/DC Welder

ENVY OMNI 220 AC/DC MIG/TIG/MMA WELDER/PLASMA CUTTER

A true all-in-one machine delivering MIG, AC/DC TIG, MMA and plasma cutting from a single platform.

- Single and double pulse MIG programs & high-frequency AC & DC TIG

- MIG & TIG Smart-Set weld modes for complete synergic setups

- Fast, clean cutting with pilot arc start & a 25mm cutting capacity

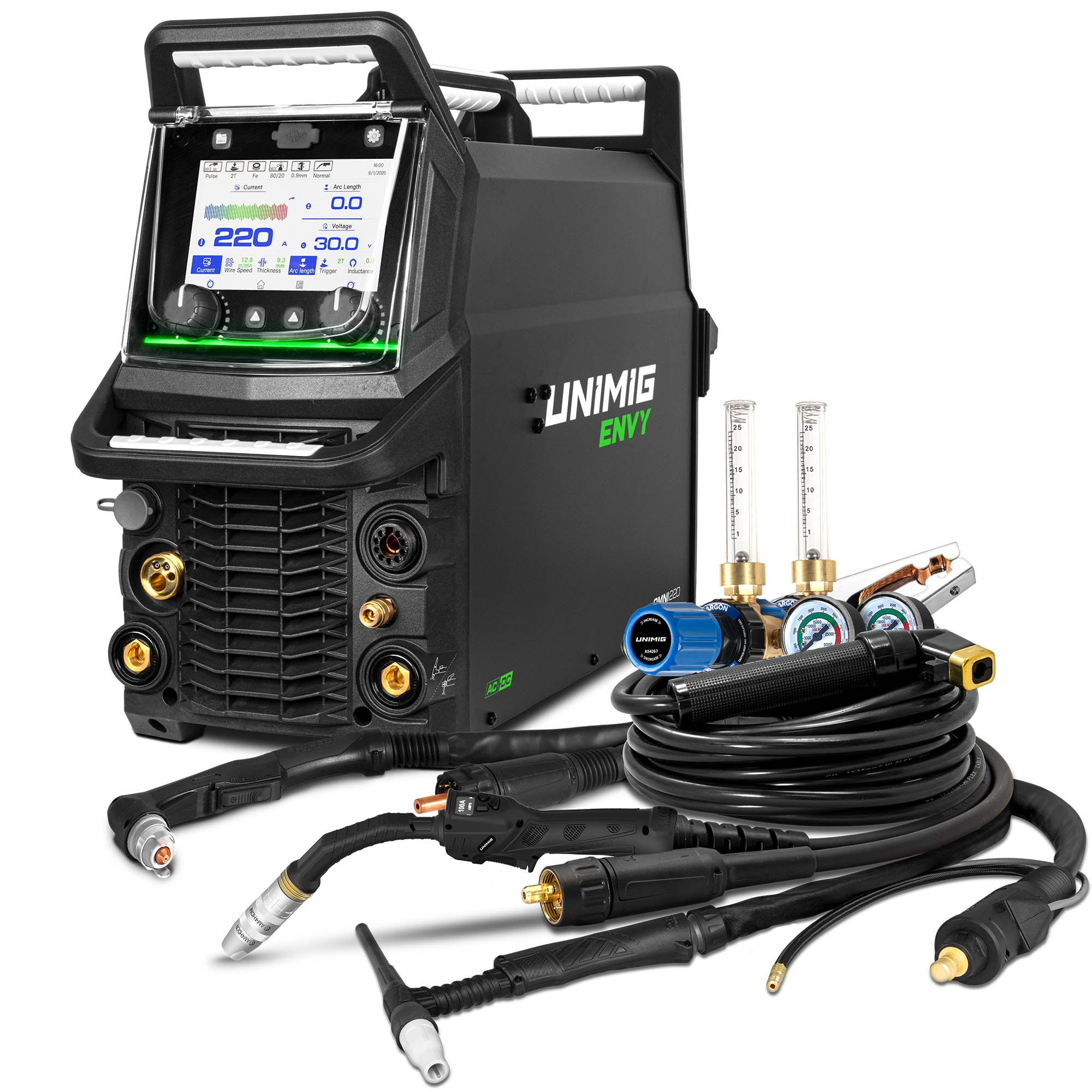

In The Box:

ENVY OMNI 220 AC/DC Welder
3m M26 Digital MIG Torch
4m T2 TIG Torch
6m SC80 Plasma Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
2 x Dual Stage Argon Flowmeters
2 x 1.8m Quick-Connect Gas Hoses
Operating Manual
4 x 0.8-0.9mm V Groove Roller
4 x 0.8-0.9mm F Groove Roller
4 x 1.0-1.2mm U Groove Roller

Technical Data:
Primary Input Voltage: 240V Single-Phase
Supply Plug: 15A
Ieff (A): 15.0
Imax (A): 32.0
Open Circuit Voltage (OCV): 90.0
Protection Class: IP21S
Insulation Class: H
Minimum Generator (kVA): 10.0
Dinse Connector: 35/50
Standard: AS 60974.1
Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze, Titanium, Magnesium, Zinc Alloys
MMA: Mild Steel, Stainless Steel, Cast Iron:
Warranty (Years): 5
MIG Specifications:
MIG Current Range: 25-220A
MIG Duty Cycle @ 40°C: 20% @ 220A,
60% @ 127A,:
100% @ 98A:
MIG Wire Sizes: 0.6-1.2mm
MIG Wire Spool Sizes: 5kg (D200), 15kg (D300)
MIG Welding Thickness Range: 1-10mm
Drive Roller Size: 37/24
TIG Specifications:
TIG Ignition Type: AC/DC High-Frequency
TIG Current Range: 5-220A
TIG Duty Cycle @ 40°C: 35% @ 220A,
60% @ 168A,:
100% @ 130A:
TIG Welding Thickness Range: 1-10mm
MMA Specifications:
MMA Current Range: 10-200A
MMA Duty Cycle @ 40°C: 25% @ 200A,
60% @ 129A,:
100% @ 100A:
MMA Electrode Range: 2.5-4.0mm
MMA Welding Thickness Range: 2-12mm
Plasma Specifications:
Plasma Cut Current Range: 20-40A
Plasma Cut Duty Cycle @ 40°C: 40% @ 40A,
60% @ 33A,:
100% @ 25A:
Mild Steel Cut Thickness: 20mm
Mild Steel Severance Thickness: 25mm
Stainless Steel Cut Thickness: 18mm
Aluminium Cut Thickness: 14mm
Copper Cut Thickness: 8mm
Size & Weight:
Dimensions (LxWxH): 820 x 275 x 520mm
Weight (kg): 33.50
