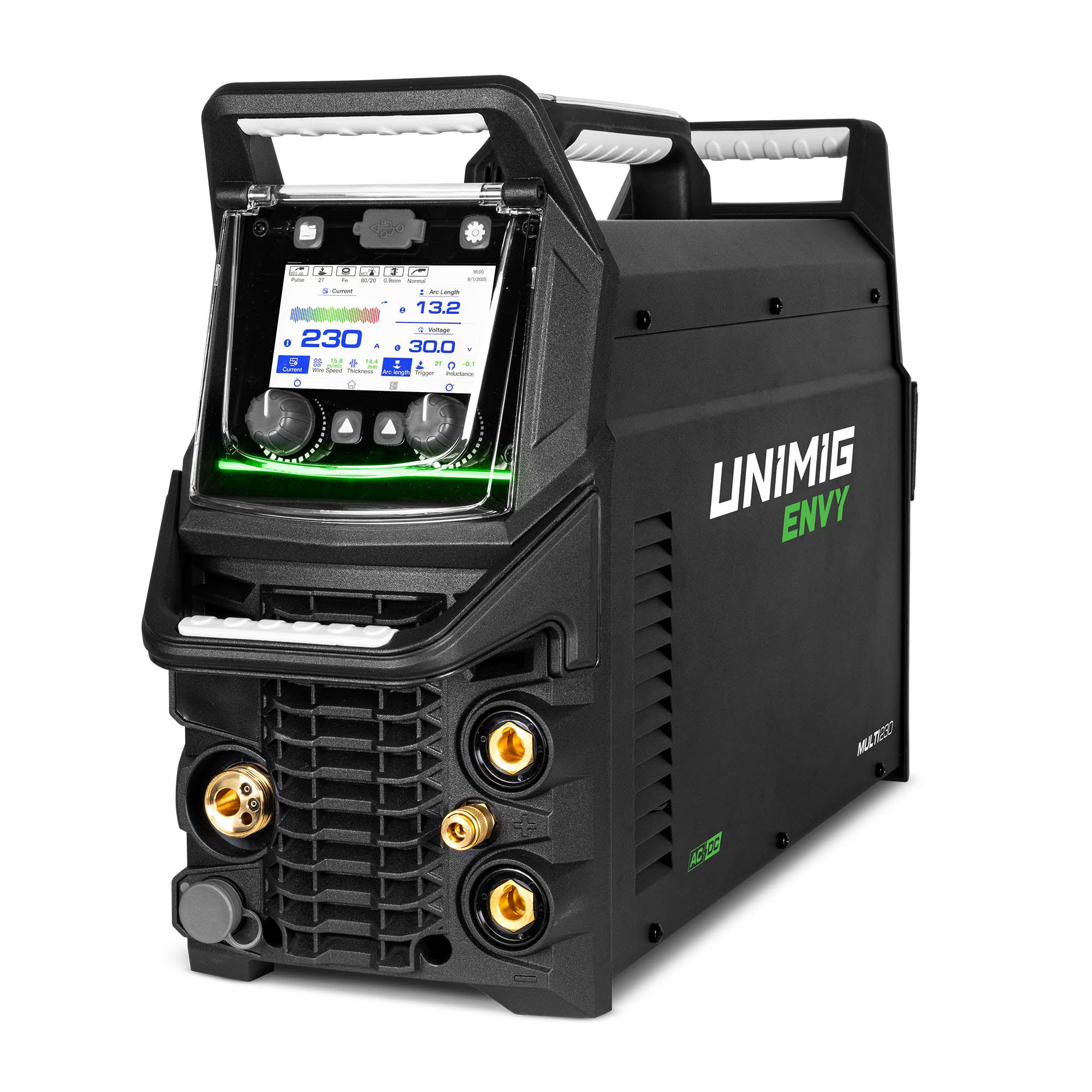

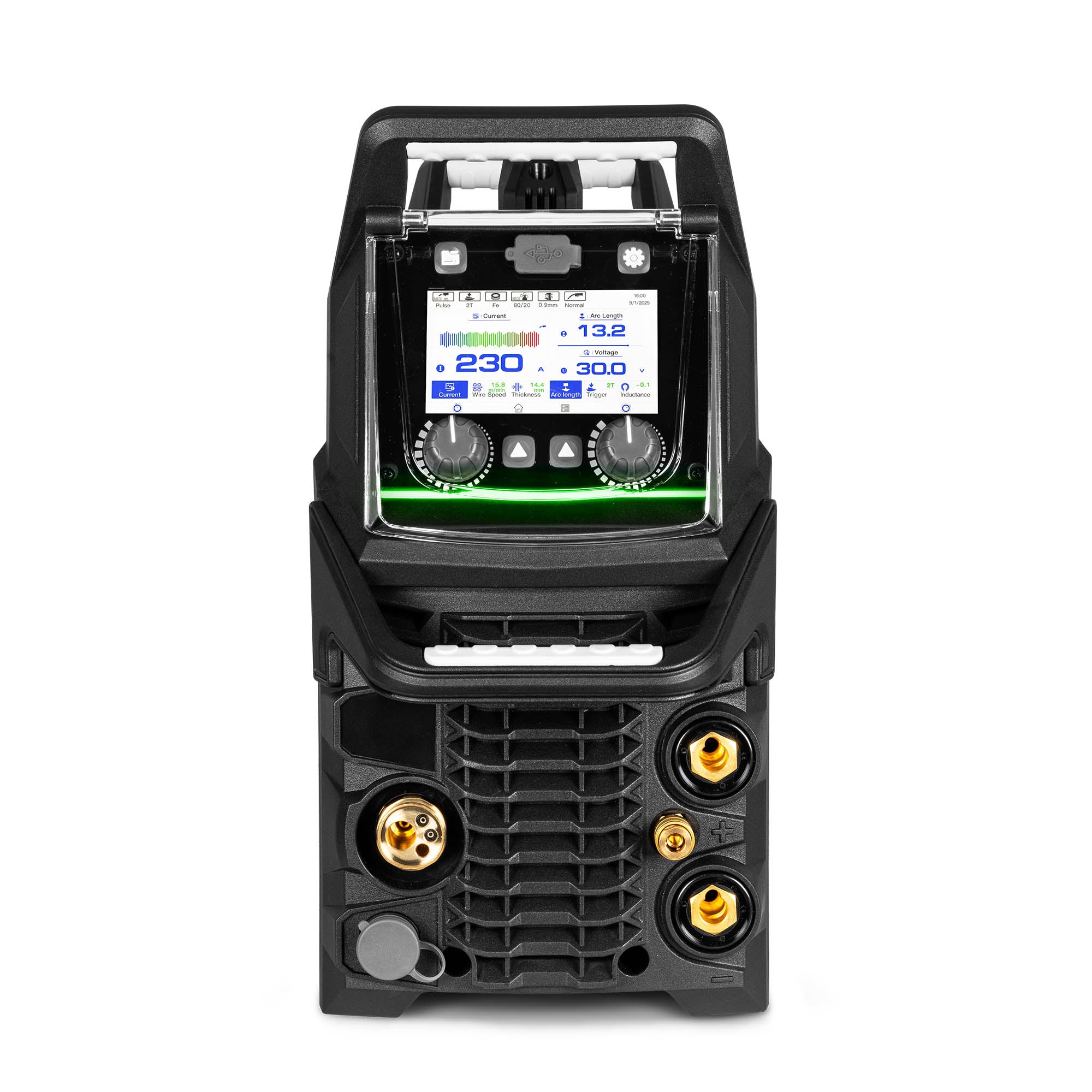

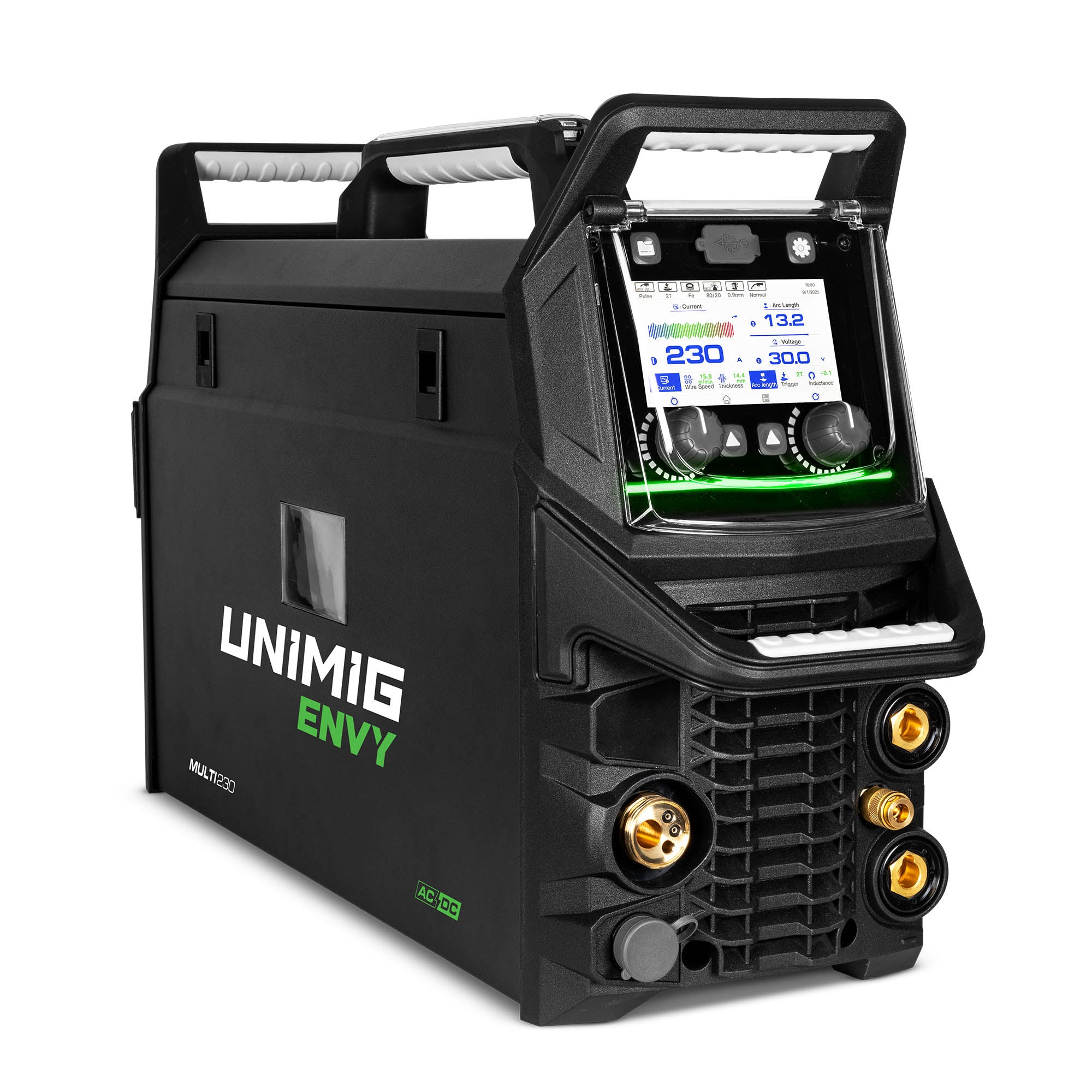

Unimig ENVY MULTI 230 AC/DC Welder

Filled with the latest revolutionary technologies, this professional-grade multi-process welder is capable of every kind of welding you need.

 * Single and double pulse MIG programs
 * High-frequency AC & DC TIG
 * MIG & TIG Smart-Set weld modes for complete synergic setups

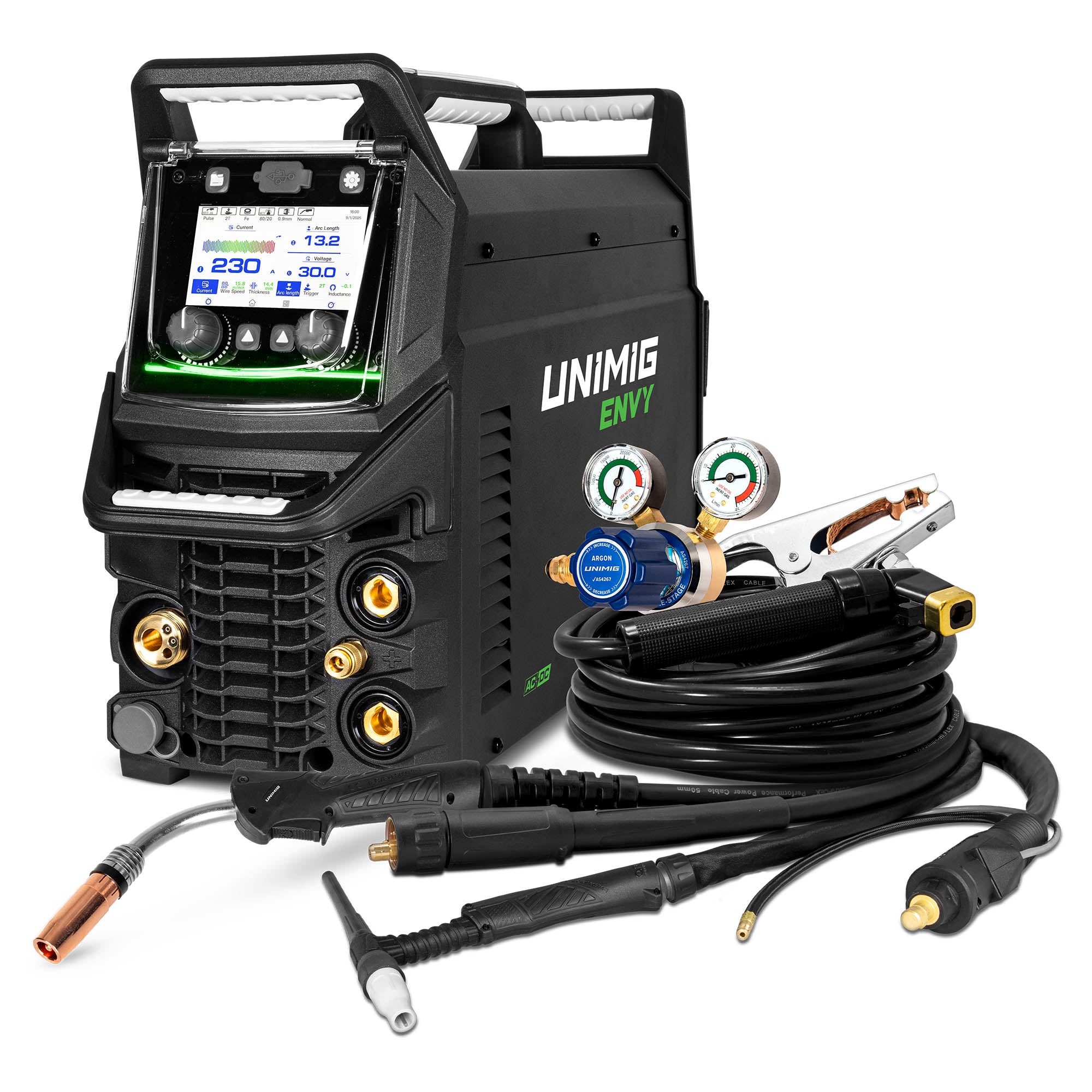

In The Box

ENVY MULTI 230 AC/DC Welder
3m M26 Digital MIG Torch
4m T2 TIG Torch
4m Twist Lock Electrode Holder
4m 300 Amp Earth Clamp & Lead
Argon Regulator
1.8m Quick-Connect Gas Hose
Operating Manual
2 x 0.8-0.9mm V Groove Roller
2 x 0.8-0.9mm F Groove Roller
2 x 1.0-1.2mm U Groove Roller

Technical Data
SKU: U11203
Primary Input Voltage: 240V Single Phase 50/60Hz
Supply Plug: 15A
Ieff (A): 15
Imax (A): 30A
Rated Output: 25-230A
No Load Voltage (V): 76V
Protection Class: IP21S
Insulation Class: H
Minimum Generator (kVA): 10
Dinse Connector: 35/50
Standard: AS 60974.1
Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Aluminium, Copper, Silicon Bronze
Warranty (Years): 5

MIG Specifications
MIG Welding Current Range: 25-230A
MIG Duty Cycle @ 40°C: 25% @ 230A, 60% @ 148A, 100% @ 145A
MIG Wire Size Range: 0.6-1.2mm
MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm)
MIG Welding Thickness Range: 1-10mm
Drive Roller Size: 30/22

TIG Specifications
TIG Function Type: AC/DC HF TIG & AC/DC Pulse
TIG Welding Current Range: 10-230A
TIG Duty Cycle @ 40°C: 35% @ 230A, 60% @ 175A, 100% @ 136A
TIG Welding Thickness Range: 1-8mm

MMA Specifications
STICK Welding Current Range: 10-200A
STICK Duty Cycle @ 40°C: 25% @ 200A, 60% @ 130A, 100% @ 100A
STICK Electrode Range: 2.5-4.0mm
STICK Welding Thickness Range: 2-12mm

Size & Weight
Dimensions (mm): 680x210x395mm
Weight (kg): 24kg
