BT / Tecmen PAPR Freflow iEXP TM1000 Welding Helmet
Couldn't load pickup availability
The BT Weld/Tecmen Freflow iEXP TM1000 is an advanced PAPR welding helmet system delivering integrated eye, face and respiratory protection. Combining high definition auto darkening optics with intelligent airflow and high efficiency filtration, it keeps welders safe, comfortable and productive during extended industrial use.
Key Features:
- Classification Helmet: CE, UKCA, UKNI, ANSI Z87.1, Z94.3, AS/NZS1338.1 Respirator: EN12941, AS/NS1716:2012
- Compatibility suitable for MIG, TIG, stick welding, plasma cutting, grinding and metalworking with integrated respiratory and eye protection.
- Auto-Darkening 1/1/1/1 optical class Auto Darkening Filter (ADF) which provides high-definition clarity and true colour perception.
- Viewing area large 107 × 75 mm lens expands field of vision for safer, more accurate work.

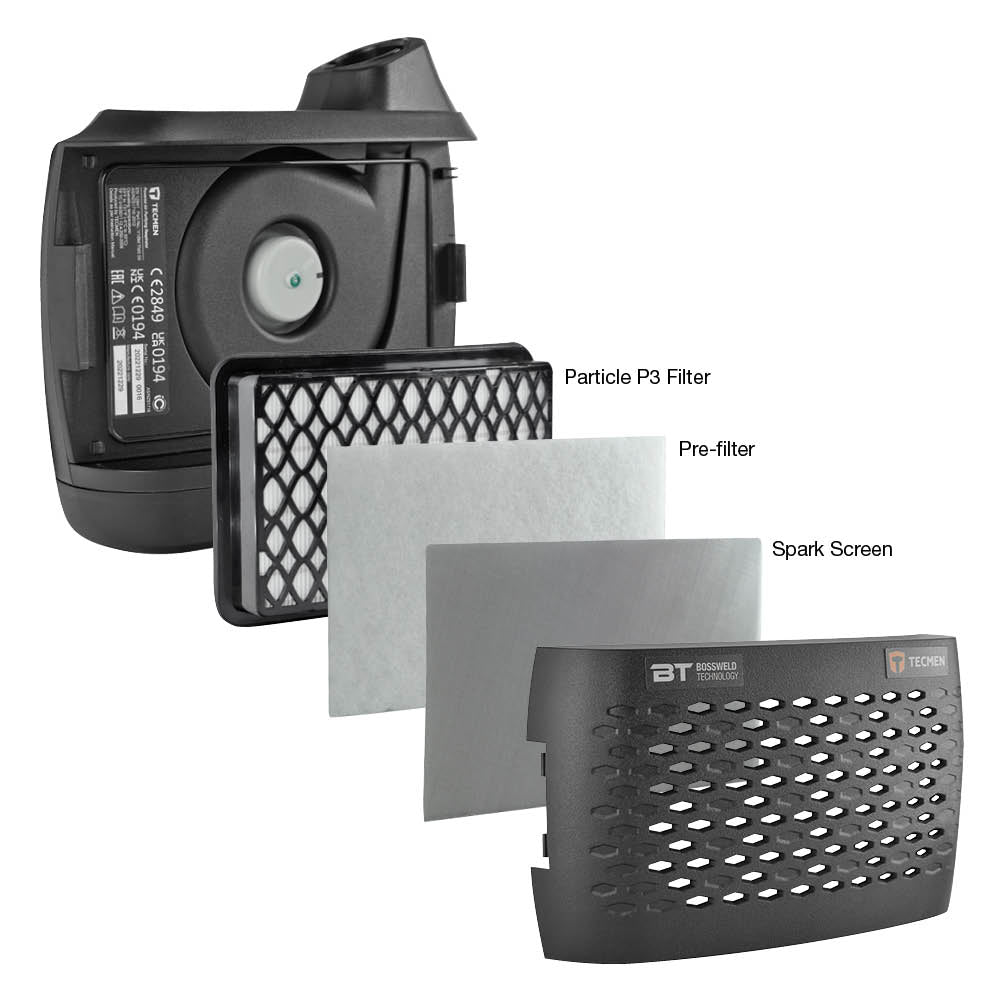

- Protection & safety class leading P3 multi-layer filter (>99.97 % efficiency) with intelligent airflow management, rechargeable Li-ion battery supports extended sessions, covered by standard Dynaweld warranty.

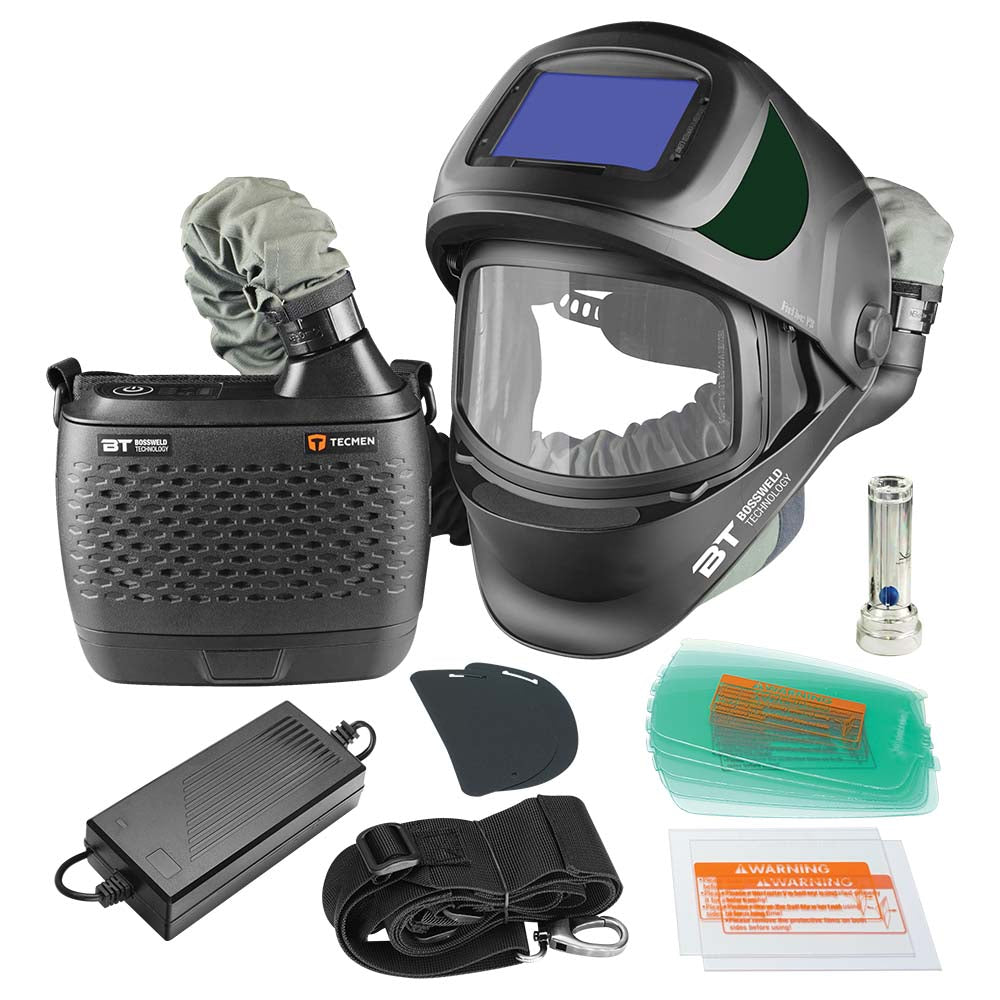

STANDARD INCLUSIONS

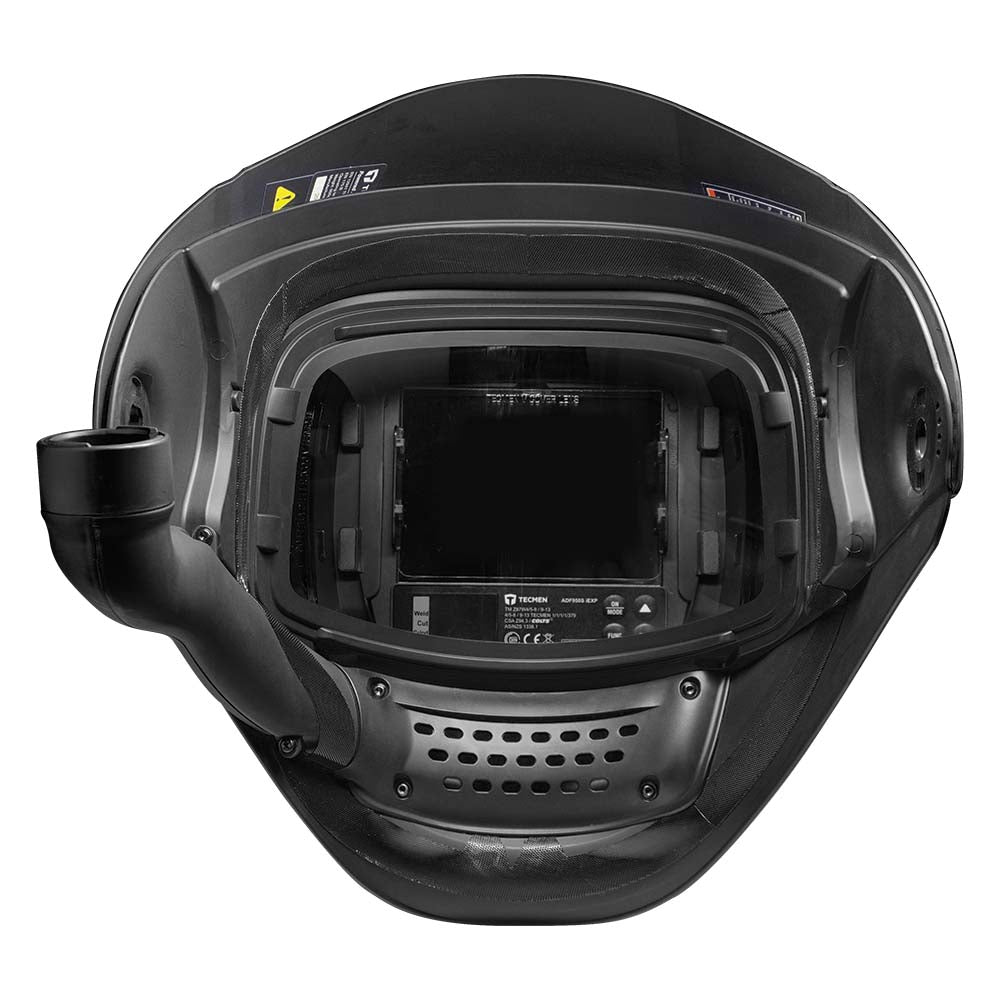

1. Flip Front Auto Darkening Welding Helmet

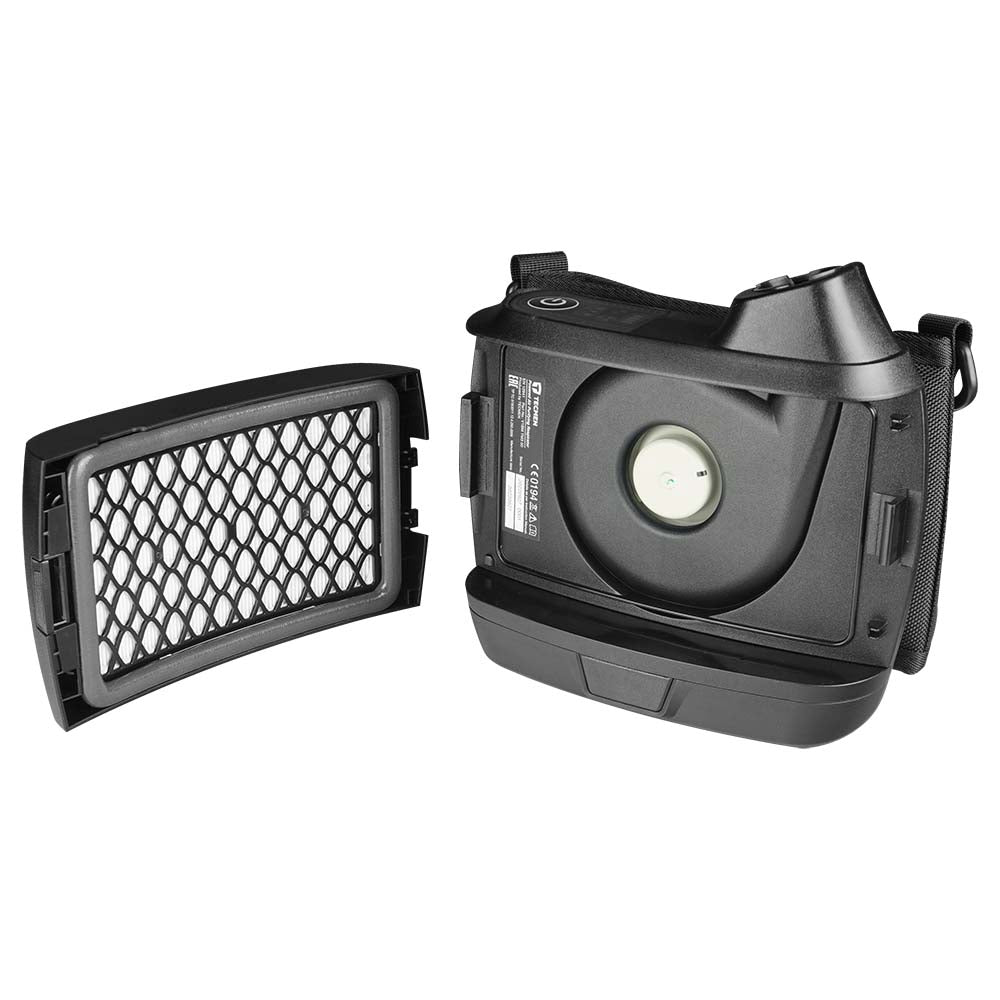

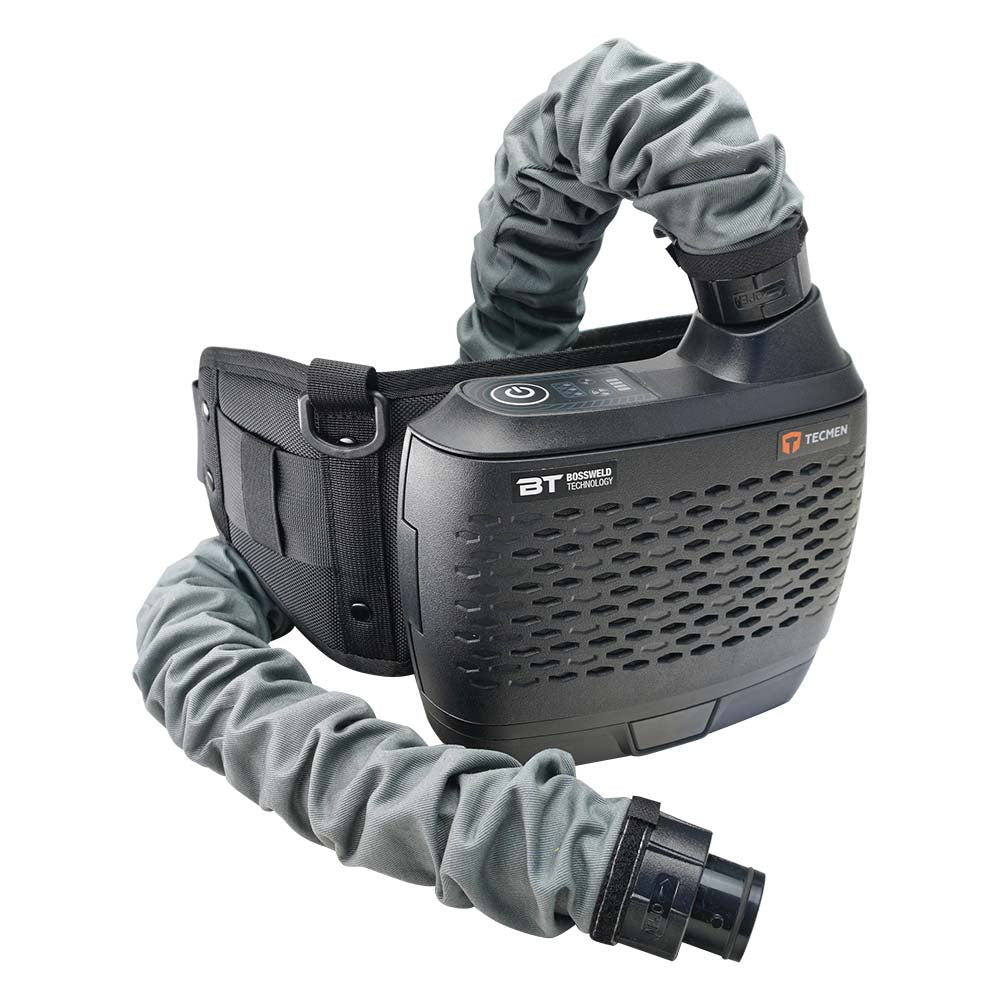

2. Blower unit (with waist strap and battery)
3. Spare outside cover lens x 5
4. Spare inside cover lens x 2
5. Side lens x 2
6. Hose with cover
7. Battery Charger
8. Shoulder Strap
9. Airflow Indicator

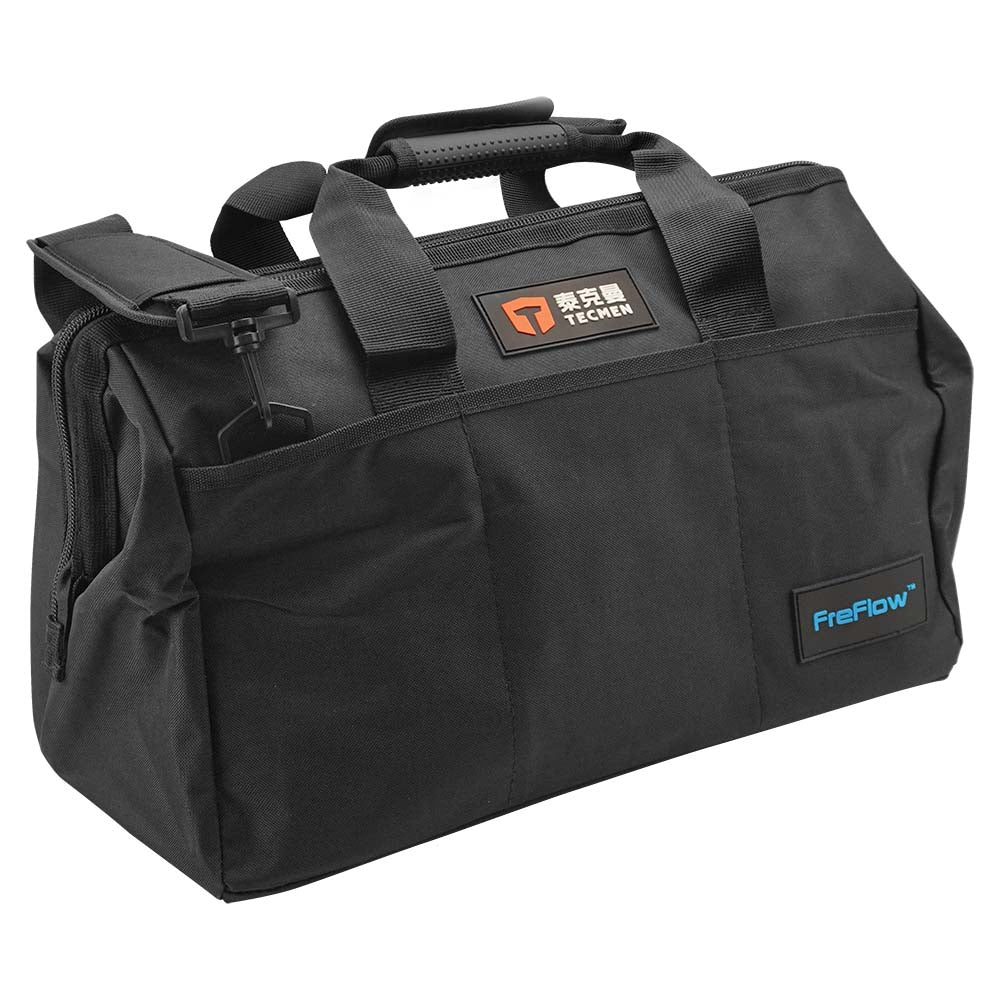

10. Carry Bag
Helmet Specifications
| Specification | Details |
|---|---|
| Auto-Darkening Filter (ADF) Model | 950 iEXP |
| Optical Class | 1 / 1 / 1 / 1 |
| Viewing Area | 107 × 75 mm |
| Arc Sensors | 4 |
| Light State | DIN 3.5 |
| Dark State – Variable Shade | DIN 5–8 / DIN 9–13 |
| Power On/Off | Manual On/Off with automatic shut-off |
| UV/IR Protection | Up to DIN 16 at all times |
| Power Supply | Solar cell and replaceable batteries |
| Battery Type | 2 × CR2450 lithium batteries |
| Battery Life | Up to 4,000 hours |
| Switching Time (Light to Dark) | 1/25,000 second |
| Switching Time (Dark to Light) | 0.1–1.0 seconds |
| Controls | Digital display control |
| Low-Amperage TIG Rating | ≥ 2 amps (AC/DC) |
| Grinding Mode | Yes |
| Helmet Material | High-impact-resistant nylon |
| Warranty – ADF and Blower Unit | 2 years |
| Warranty – Blower Unit Battery | 1 year |
Respirator Specifications
| Specification | Details |
|---|---|
| Minimum Design Airflow Rate | 165+ L/min (5.8+ CFM) |
| Airflow Rate – Low Speed | 170+ L/min (6+ CFM) |
| Airflow Rate – High Speed | 210+ L/min (7.4+ CFM) |
| Battery Type | Rechargeable lithium-ion battery |
| Battery Runtime – Low Speed | Up to 9 hours |
| Battery Runtime – High Speed | 5–6 hours |
| Charging Time | Approximately 1 hour |
| Filter Efficiency | Greater than 99.97% |
| Operating Relative Humidity | Less than 90% RH |
| Storage Relative Humidity | Less than 85% RH |
| Weight | 1,020 g (blower unit and battery) |
