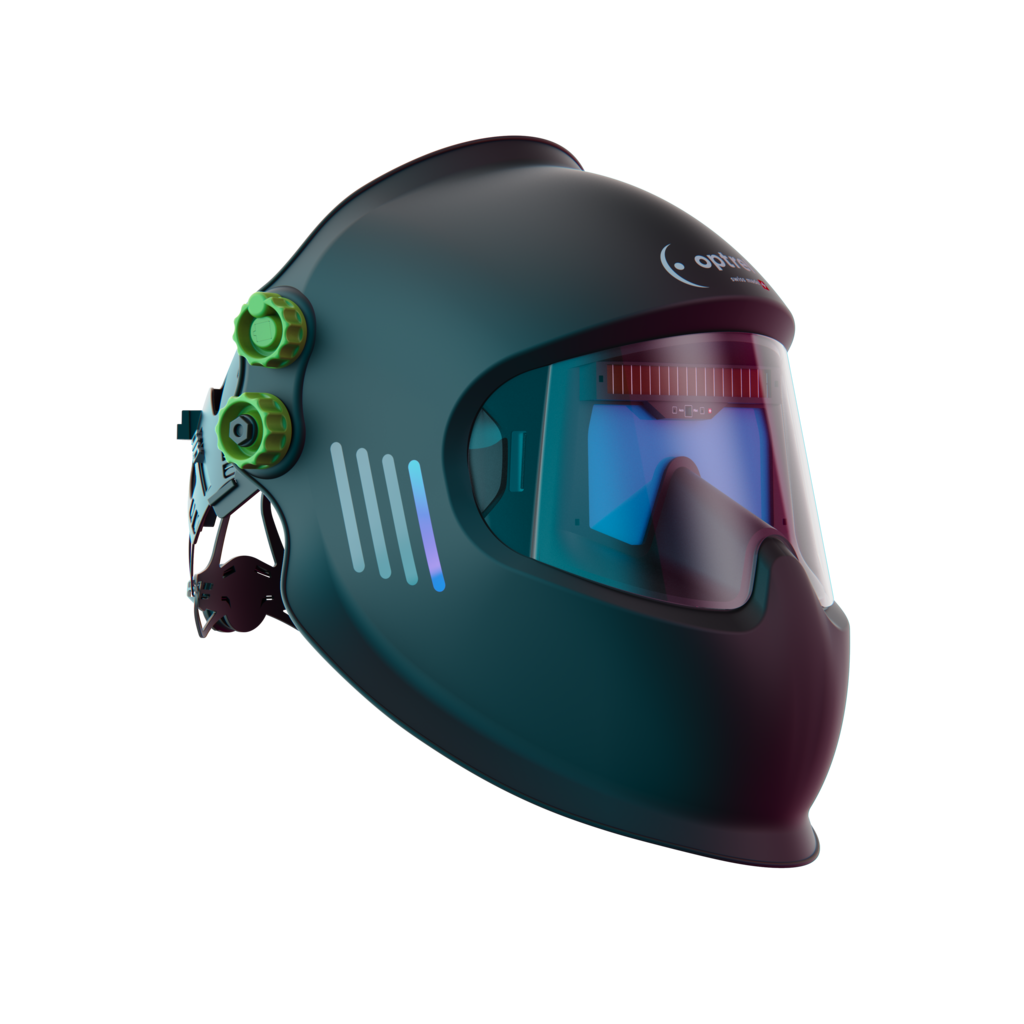

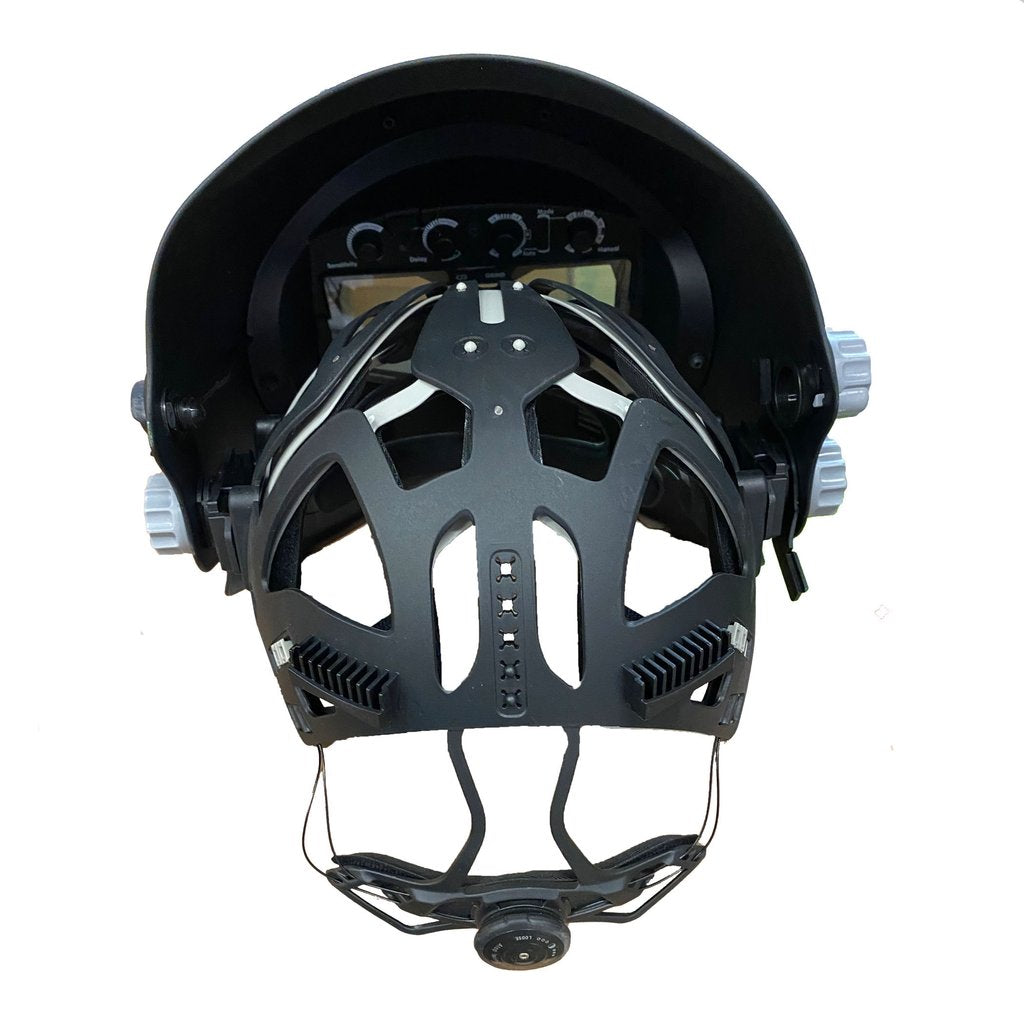

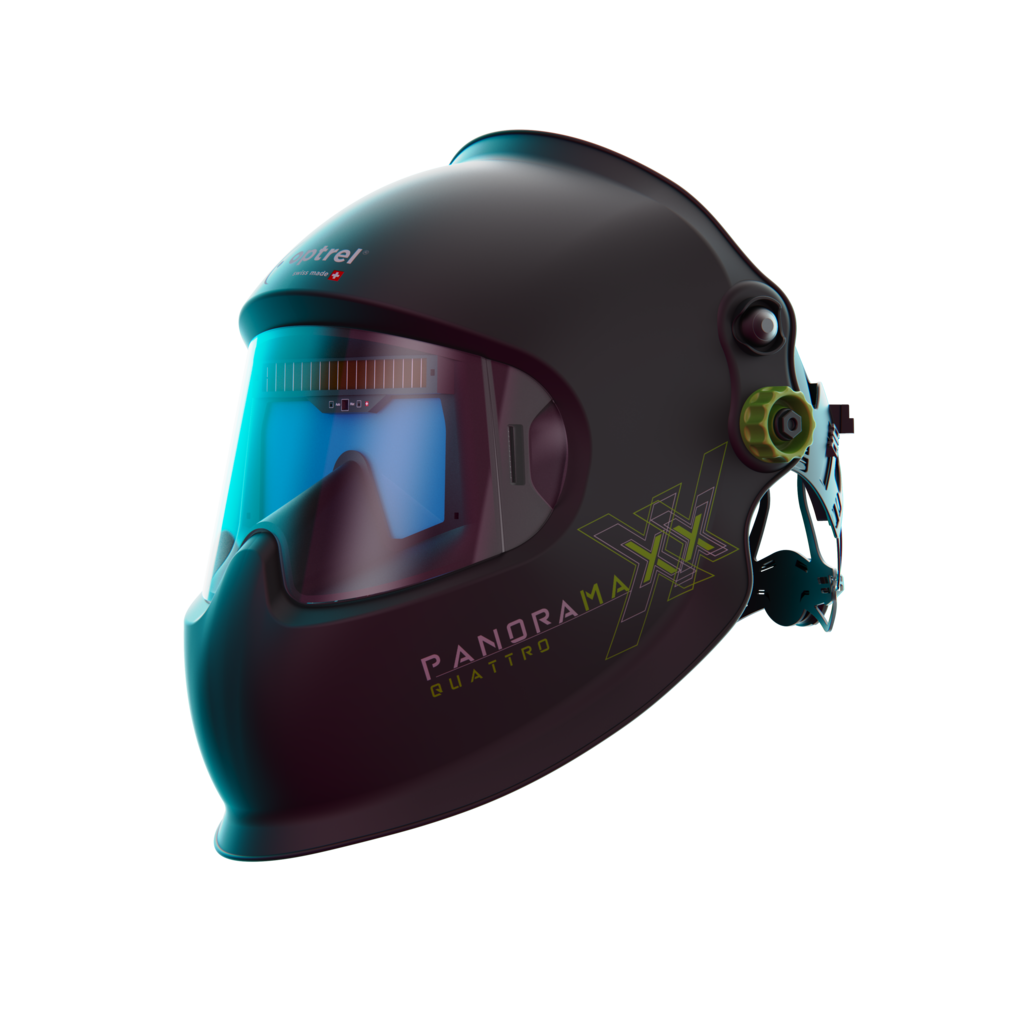

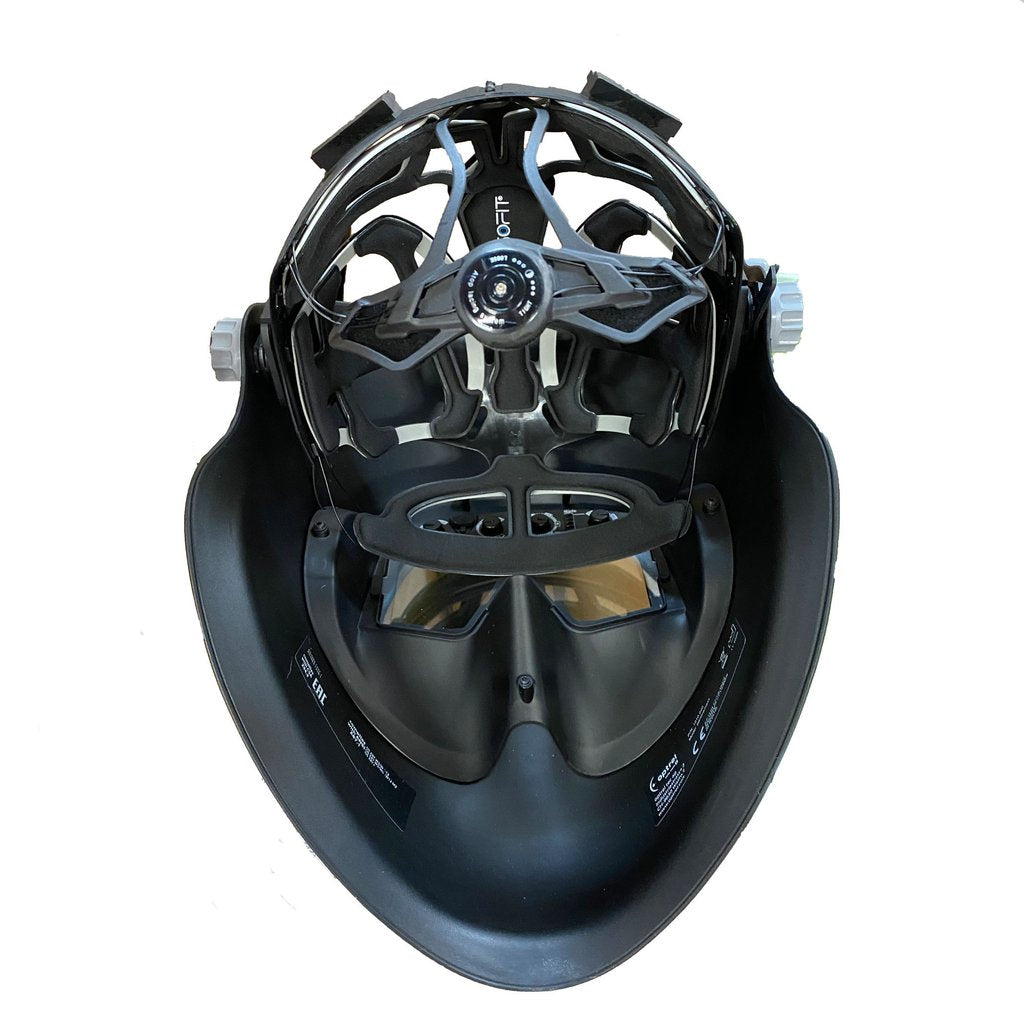

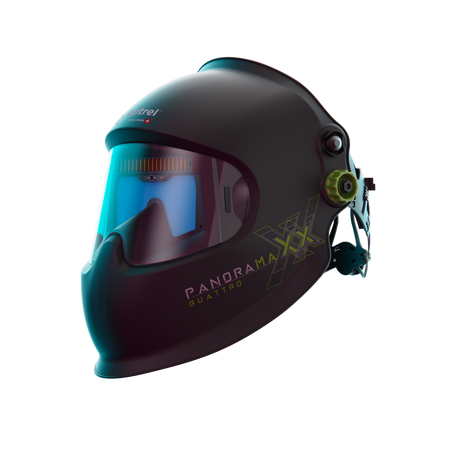

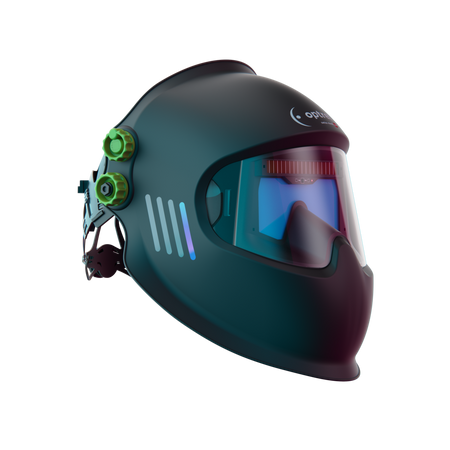

Optrel Panoramaxx Welding Helmet

  • Sale
  • Regular price $760.00
Tax included. Shipping calculated at checkout.

or make 4 interest-free payments of $190.00 AUD fortnightly with More info

Optrel Panoramaxx Welding Helmet

Optrel presents the most innovative and ergonomically optimal helmet to date, expanding the welder’s field of vision without compromising on comfort. The unique nose cut-out floats above the nose to position the auto-darkening display closer to the eyes. This enlarges the field of vision 6 times compared to conventional welding masks, without adding extra weight. The panorama view – in combination with the 2.5 shade at lightstate and the optrel True Colour optics – opens an entirely new visual dimension to the welding experience. The panoramaxx features optrel’s patented Autopilot function. Our unique 5-sensor array measures the brightness of the welding arc and automatically adjusts to the correct shade level. The panoramaxx also marks the launch of optrel’s unique new power system. Featuring a lithium-polymer power pack in combination with high-performance solar cells and an external USB charging option, the panoramaxx is the energy-independent, maintenance-free choice for professional welders. The panoramaxx combines optrel’s groundbreaking innovations with an unprecedented panorama view – making it the most advanced welding helmet of its time.

Maximise your horizon.

  • 6-times larger field-of-view compared to standard helmets
  • Fully-automated shade level adjustment
  • True Color View
  • Shade level 2.5 in inactive mode
  • New energy concept with Lithium-polymere battery

So wide. So light. So true color.

You’ve never seen welding this way before.

With panoramaxx optrel introduces a never seen before world of viewing to the welder. The nose cut-out brings the ADF closer to your eyes. As with eyeglasses, the ADF‘s frame becomes almost invisible to the welder, increasing the field of view by more than 6 times. Nevertheless, the panoramaxx is a real lightweight at only 550 g.

Technical Data

Shade levels
inactive: shade level 2,5
active, manual: shade level 7-12
 Automatic protection level regulation across a range from 5-12 with individual calibration option of ± 2
Power supply
Solar cells, lithium-polymer battery, rechargeable by USB-cable
Battery life
300 to 500 charging cycles
Five Sensors
Infinitely adjustable, now with “super high” sensitivity
Switching time
bright to dark:
0.090 ms at room temperature at 55°C
0.070 ms at 55°C
dark to bright:
0.1 s to 2.0 s (with dimming function)
Field of vision
Depending on headband setting, 2.3x to 6.3x field of vision of a 100 x 50 mm standard industry ADF
EN379 classification
Optical class: 1
Scattered light: 1
Homogeneity: 1
Angular dependence: 2
Shape stability
Welding mask: up to 220 °C / 428 °F
Front cover lens: up to 137 °C / 279 °F
Eye protection
Ultraviolet / Infrared Protection: maximum protection at any shade level
Operating temperature
-10°C to + 70°C / 14°F to 158°F
Storage temperature
-20°C to + 80°C / -4°F to 176°F
530 g / 18,7 oz
Scope of delivery
Welding helmet, manual, storage bag, Micro USB cable, warranty card and one front cover lens
2 years
1 year warranty extension (except batteries) for online product registration within the first 6 months.

Fields of Application

  • Stick Welding, (SMAW)
  • GMAW High melting rate process
  • Flux Cored Wire Welding
  • TIG Welding (GTAW)
  • Plasma Arc Welding
  • Plasma Cutting
  • Gas Welding
  • Grind Mode
