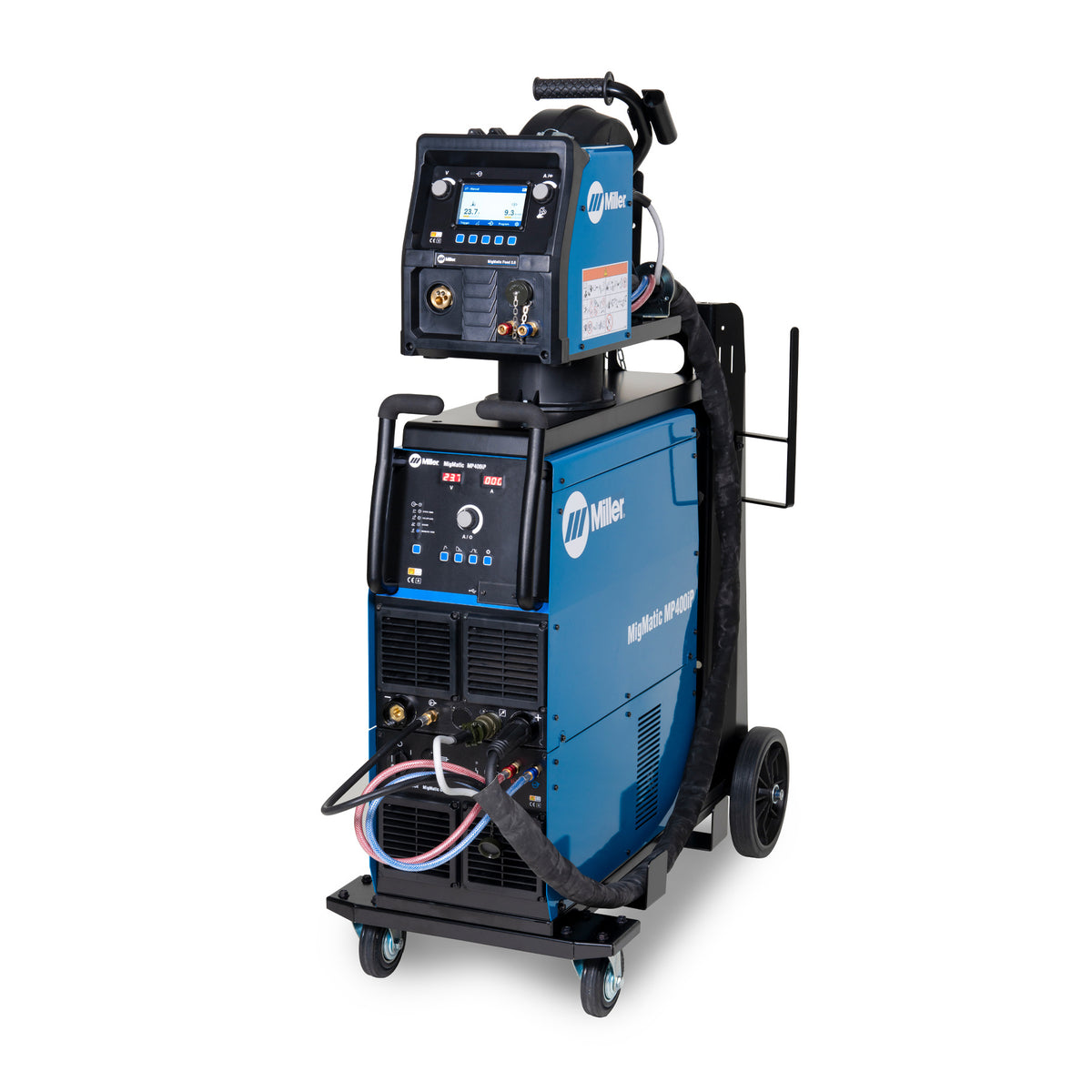

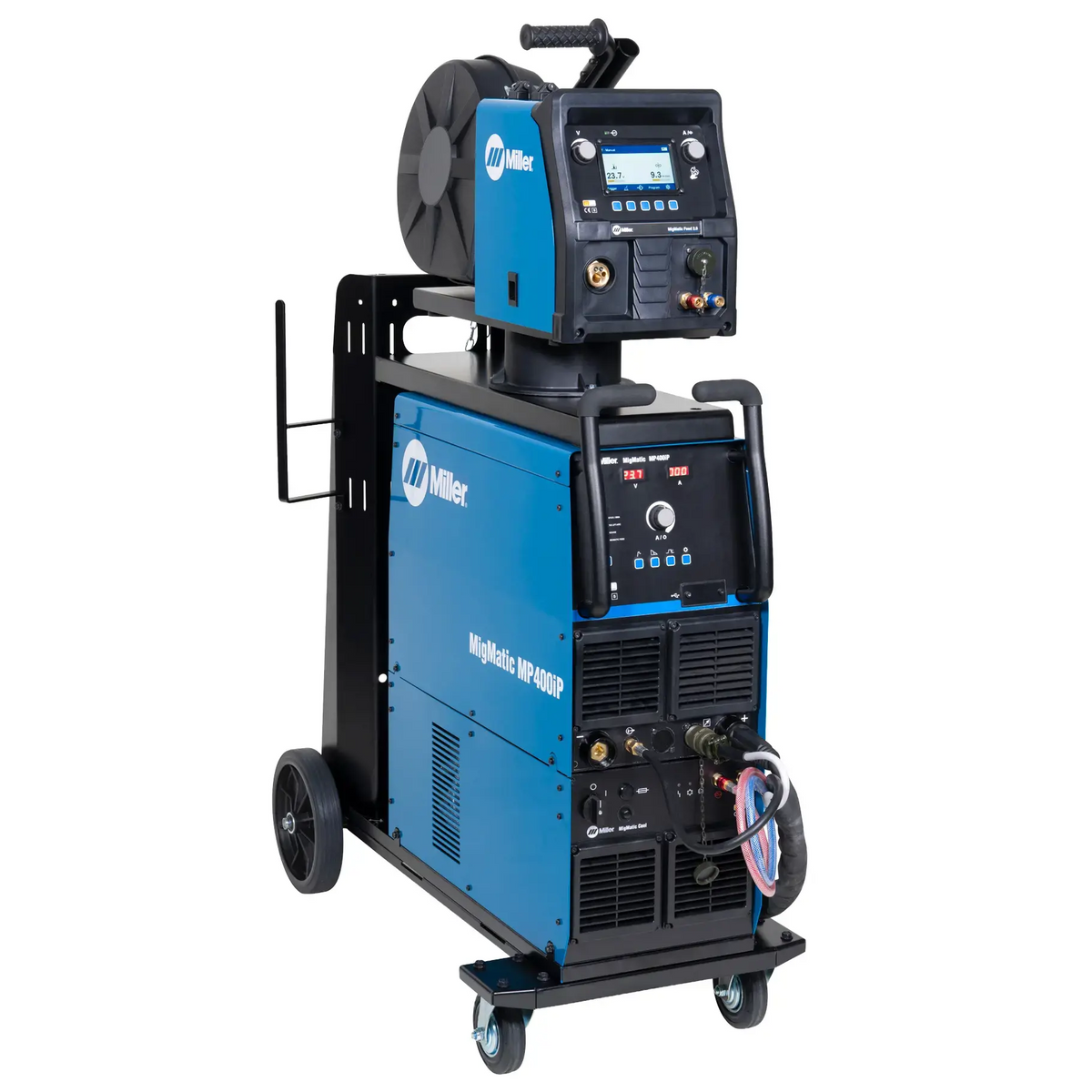

Miller MigMatic® MP400iP - Liquid Cooled Package

MigMatic® MP400iP Synergic Pulsed MIG System

The MigMatic® MP400iP is a versatile, industrial-grade multiprocess welding system designed for demanding fabrication environments. Combining synergic pulsed MIG, double pulse MIG, Stick, TIG and air carbon arc gouging capabilities in one unit, it delivers excellent versatility, productivity and weld quality across a wide range of applications.

With intuitive digital controls, full synergic pulse functionality and a robust industrial design, the MP400iP helps simplify setup, improve consistency and maximise welding productivity.

Key Features & Benefits

Multiprocess Welding Capability

Handle a wide range of welding applications with one versatile machine. Switch between MIG, Stick, TIG, pulsed MIG, double pulse MIG and air carbon arc gouging to reduce equipment investment, save floor space and move efficiently between jobs.

Single & Double Pulse Capability

Achieve high-quality weld finishes with the speed and efficiency of MIG welding. Single and double pulse functionality helps produce professional-looking results while improving control and reducing reliance on time-intensive TIG techniques.

Intuitive Digital Interface

Clear digital controls make machine setup straightforward for operators of all skill levels. Simplified adjustments help reduce training time, minimise setup errors and support consistent weld quality across shifts.

100% Duty Cycle at 400A

Designed for demanding industrial workloads, the MP400iP delivers 400A at a rated 100% duty cycle, allowing continuous welding at its rated output under specified conditions without routine cooling interruptions.

Full Synergic Pulse with Presets

Simplify setup with intelligent synergic controls. Select the wire size and shielding gas type, and the machine automatically configures the corresponding welding parameters using pre-programmed combinations.

• Faster machine setup.
• Reduced guesswork when selecting parameters.
• Consistent welding results.
• Less training required for new operators.

Trigger Program Switching

Recall up to four preset welding programs directly from a compatible standard MIG torch trigger. Quickly switch between stored settings to improve productivity when working on complex components and jobs requiring different parameters.

Industrial Durability & Reliability

Miller Robustness

Designed for demanding industrial environments, the MP400iP features an IP23S-tested and approved design to support reliable operation in challenging working conditions.

Fan-On-Demand™ Energy Efficiency

The cooling fan operates only when required, helping reduce noise, energy consumption and the amount of airborne contaminants drawn through the machine.

Wind Tunnel Technology™

Internal airflow is designed to help protect sensitive electrical components and circuit boards from dirt, dust and debris, supporting improved reliability and service life.

Versatility & Practical Design

• Air-Cooled or Water-Cooled Compatibility: Supports upgrading from air cooling to water cooling without modification to the machine or trolley.
• Wire Feeder Suspension Hook & Wheel Kit: Provides additional flexibility and reach when positioning the wire feeder.
• Cable Management System: Helps keep the interconnection cable off the floor for a tidier, more organised work area.
• On-Torch Control Compatibility: Compatible with on-torch adjustment of wire feed speed and voltage.

Push-Pull Compatible

Full push-pull capability provides greater reach, flexibility and convenience for wire feeding applications.

The MigMatic® Push-Pull MIG Gun Kit (Part No. KIT0009) is designed to pair with the MigMatic® MP400iP, helping deliver consistent wire feeding across a wider range of welding applications.

Welding Processes

• MIG/MAG (GMAW)
• Pulsed MIG (GMAW-P)
• Double Pulsed MIG
• Flux-Cored Welding (FCAW/FCAW-S)
• DC Lift-Arc TIG (GTAW/GTAW-P)
• DC Stick (MMAW/MMAW-P)
• Air Carbon Arc Gouging (CAC-A)

Weldable Materials

• Steel
• Stainless Steel
• Aluminium
• Specialty Metals

Ideal Industrial Applications

• Aerospace Fabrication
• Heavy Fabrication
• Aluminium Fabrication
• Ship Repair
• Shipbuilding
• Rental Operations
• Construction
• Maintenance & Repair
• Precision Fabrication
• Pipe & Tube Fabrication

MigMatic® MP400iP System Components

The MigMatic® MP400iP system combines a powerful multiprocess welding machine with a durable wire feeder, an efficient water cooling unit and a heavy-duty transport cart. Together, these components provide a versatile welding solution designed for demanding industrial applications, fabrication workshops and mobile job sites.

MigMatic® MP400iP Multiprocess Welding Machine

The heart of the system, the MigMatic® MP400iP delivers versatile multiprocess welding capabilities in one integrated power source.

• Multiple Welding Processes: Supports MIG, Stick, TIG, pulsed MIG, double pulse MIG and air carbon arc gouging.
• Reduced Equipment Investment: Combines multiple welding processes in one machine, reducing the need for separate power sources.
• Space-Saving Design: Helps minimise workshop floor space requirements.
• Flexible Operation: Switch between welding processes to suit different jobs and applications.

MigMatic® Feed 2.0 Wire Feeder

Built for demanding industrial environments, the MigMatic® Feed 2.0 features a robust four-wheel drive wire feeding mechanism designed for reliable and consistent wire delivery.

• Heavy-Duty Four-Wheel Drive: Designed for dependable wire feeding in challenging working conditions.
• Crane Suspension Capability: Can be suspended from a crane using an interconnection cable up to 30 metres long, supporting greater flexibility for large fabrication jobs.
• Extended Reach: Helps operators work across larger structures and work areas without needing to reposition the entire welding system.

MigMatic® Cool Water Cooling Unit

Powered by the MigMatic® MP400iP, the MigMatic® Cool provides active cooling for compatible water-cooled welding equipment. Its practical features help support reliable operation during demanding welding applications.

• Low-Flow Alarm: Alerts the operator when coolant flow is insufficient.
• Push-Button Pump Priming: Makes it easy to prime the cooling pump.
• 5-Litre Coolant Tank: Provides coolant capacity for the cooling system.
• Cooling Capacity: Generates 1 kW of cooling power, equivalent to approximately 3,412 BTU/h.

MigMatic® Cart

Designed for convenient transport and practical workshop use, the MigMatic® Cart can be adjusted to accommodate both air-cooled and water-cooled system configurations.

• Adjustable Configuration: Accommodates air-cooled and water-cooled setups.
• Large, Durable Wheels: Makes moving the welding system between work areas and job sites easier.
• Improved Mobility: Helps operators position the equipment where it is needed.
• Practical System Integration: Provides a convenient transport solution for the compatible welding equipment and accessories.

A Complete Welding System

With the MigMatic® MP400iP power source, Feed 2.0 wire feeder, MigMatic® Cool water cooling unit and adjustable MigMatic® Cart, this system is designed to deliver multiprocess versatility, reliable wire feeding, effective cooling and convenient mobility in demanding industrial environments.

Specifications

MigMatic® MP400iP Specifications

MigMatic® Feed 2.0 Specifications

MigMatic® Cooler Specifications

Welding Specifications

MIG Welding

Stick Welding

TIG Welding

Air Carbon Arc Gouging
