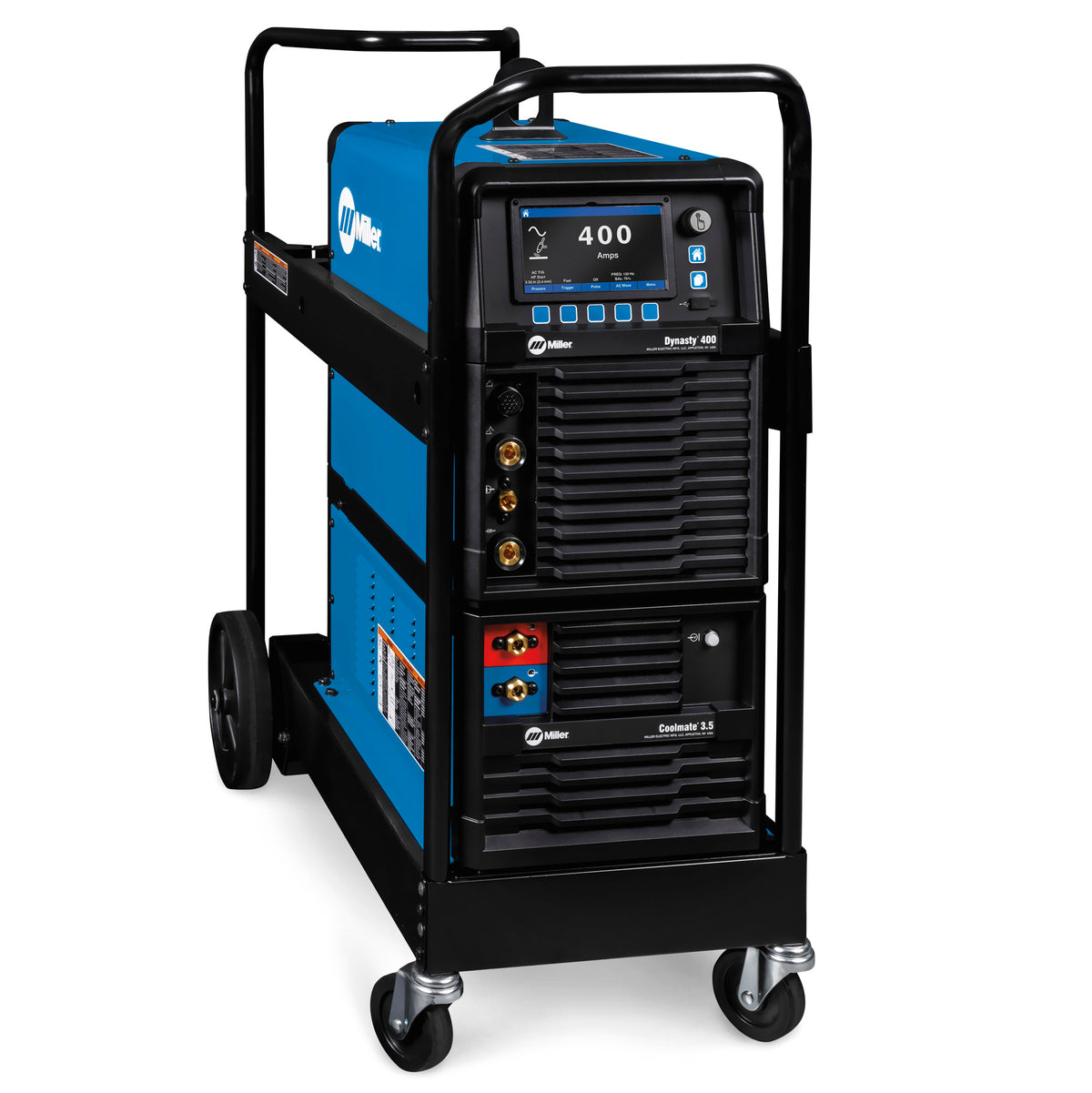

Miller Dynasty 400 AC/DC Water Cooled TIG Runner Package

Advanced Welding Technology & Features

Designed for precision, productivity and ease of use, this advanced welding machine combines intelligent controls with versatile AC/DC welding capabilities to deliver exceptional performance across a wide range of applications.

Processes: Stick SMAW, Pulsed TIG GTAW-P, ACDC TIG GTAW

Machine Features & Technology

180mm LCD Display

An easy-to-understand interface with a large 180mm LCD display helps ensure correct machine setup and parameter selection. Informative on-screen explanations and dynamic images simplify the setup process.

QUIET PULSE™

Select a sine or triangular waveform to reduce audible noise while maintaining excellent welding performance.

BLUE LIGHTNING™

Provides more consistent high-frequency (HF) arc starts and improved reliability compared with traditional arc starters.

LIFT-ARC™

Enables AC or DC arc initiation without using high frequency.

AUTO-LINE™ Technology

Accepts input voltages from 380V to 600V, making it an ideal solution for environments with fluctuating, unreliable or less-than-ideal power supplies.

Program Memory

Name, save and recall your favourite welding settings for faster setup and repeatable results.

• Eliminates the need to manually reset parameters for recurring jobs.
• Helps deliver consistent weld quality across operators of different skill levels.

PRO-SET™

Takes the guesswork out of setting welding parameters, helping operators quickly select suitable settings.

Locks & Limits

Control the available welding parameter ranges to minimise deviations from Welding Procedure Specifications (WPS) and help maintain consistency.

USB Connectivity

The front-panel USB port makes it easy to update software, back up machine settings and transfer saved welding programs between compatible units.

Cooler Power Supply (CPS)

Features an integrated 120V dedicated-use receptacle for powering the Coolmate™ 3.5 cooling unit.

COOLER-ON-DEMAND™

Operates the auxiliary cooling system only when required, helping reduce noise, energy consumption and the amount of airborne contaminants drawn through the cooler.

Welding Process Features

AC TIG Welding

Advanced AC TIG controls provide precise management of arc characteristics and heat input for high-quality aluminium welding.

• AC Balance Control: Adjusts oxide removal to help achieve clean, high-quality aluminium welds.
• AC Frequency Control: Controls arc cone width to improve directional control and precision.
• Independent Amplitude/Amperage Control: Allows electrode positive (EP) and electrode negative (EN) amperages to be adjusted independently for precise control of heat input to the workpiece and electrode.

AC Waveforms

• Advanced Square: Produces a fast-freezing weld puddle, deep penetration and faster travel speeds.
• Soft Square: Delivers a smooth, soft arc with excellent puddle control and good wetting action.
• Sine: Provides a traditional, quieter arc with good wetting characteristics.
• Triangular: Reduces heat input and is ideal for thin aluminium, supporting faster travel speeds.

DC TIG Welding

Provides an exceptionally smooth and precise arc for welding stainless steel and specialty metals. Pulse functionality helps improve puddle agitation and arc stability while increasing travel speeds and reducing heat input and distortion.

Pulse Waveforms

• Square: Creates a fast-freezing puddle for precise arc control.
• Sine: Reduces audible noise and produces a more fluid puddle, making it suitable for overlay applications.
• Triangular: Forms a puddle quickly while further reducing heat input for thin materials.

AC/DC Stick Welding

• DIG Control: Adjusts arc characteristics to suit specific applications and electrodes. Lower DIG settings provide a smoother arc for electrodes such as E7018, while higher settings deliver a stiffer, more penetrating arc for electrodes such as E6010.
• Hot Start™: Adaptive control helps provide reliable arc starts while reducing electrode sticking.
• AC Frequency Control: Improves arc stability for smoother AC stick welding.
• Stick-Stuck Detection: Detects when an electrode sticks to the workpiece and switches off the welding output to help remove it safely and easily. This feature is menu selectable.

Built for Precision, Control & Productivity

With advanced waveform control, intelligent parameter management, programmable memory and versatile AC/DC welding functions, this machine is designed to give welders greater control over their work while helping improve consistency, efficiency and weld quality.
