Manual Single Pipe Cutting Machine

SKU: SG-30
Regular price $1,154.00 inc. GST

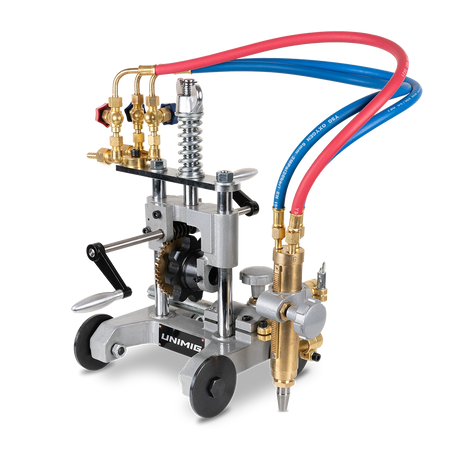

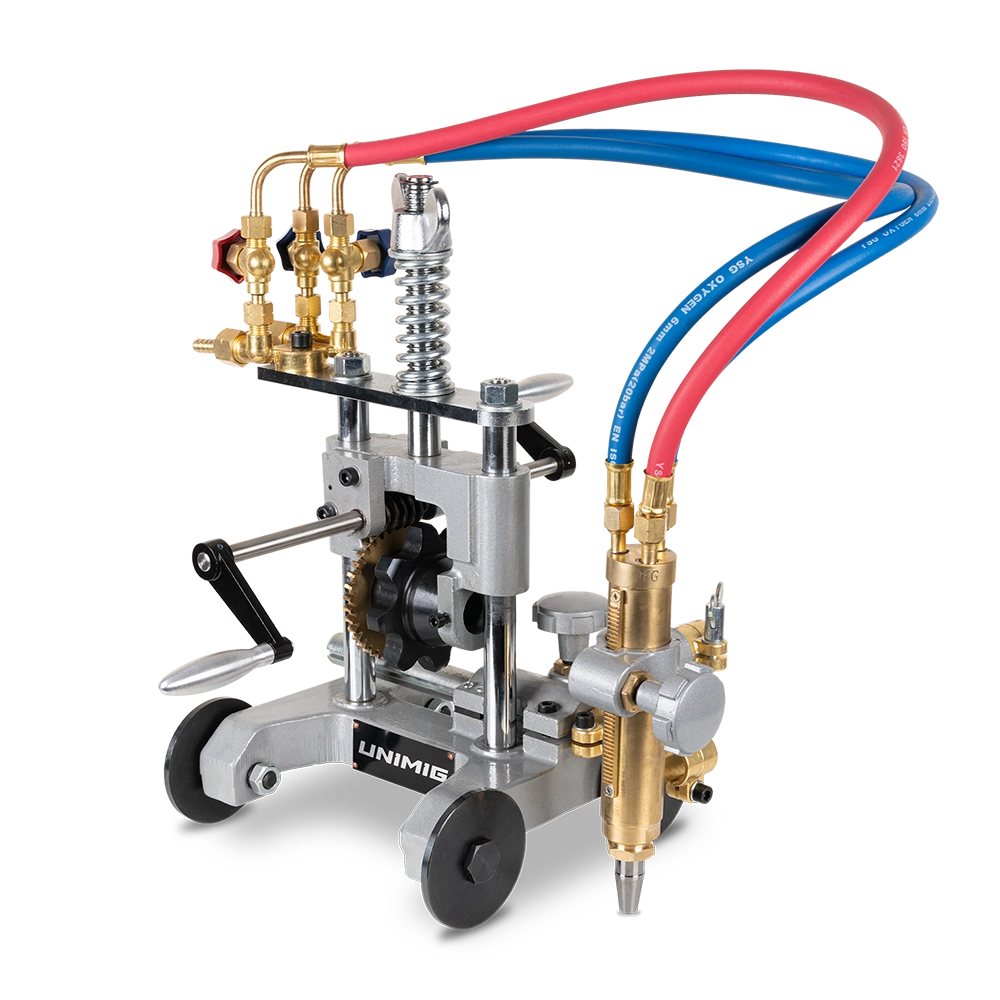

Unimig Manual Single Pipe Cutting Machine

Hand Crank Pipe Cutting Handypipe
This manually operated portable oxy fuel pipe cutting machine uses a chain and gear drive system. The drive chain is comprised of durable, interlocking links that can easily beaded or removed for quick change of pipe diameters. A graduated bevel collar ensures accurate bevel setting. The control valves for fuel, preheat oxygen and cutting oxygen are positioned away from heat yet conveniently placed for easy operator use.

Features & Benefits
Oxy Fuel Pipe Cutter - Bevel cut or straight cut steel Pipe
Manually Operated - No power needed to cut pipe; ideal for field use
Interlocking Chain Links - Add or remove links as needed for various size pipes; Standard chain configuration 24mm (9.5in) (82pcs chainl inks) with longer chain linkage optional.
Lightweight - At only 9kg (19.8 lbs) this unit is easy to carry, operate and maintain
Worm Gear Drive - Low gear ratio ensures extremely smooth travel
Optional Snap Valve - One-touch on/off gas valve

 Model SG-30

Chain type Single link chain
Quick clutch None (Same as Koike type)
Effective pipe diameter 114~600mm (4"~24") by standard chain(2.4m=96")
over 600mm by extra chain addition
Cutting thickness up to 50mm (2")
Cutting shape Square and bevel (up to 45 o)
Drive method Manual
Size 250*250*400
Weight 10.5kg
