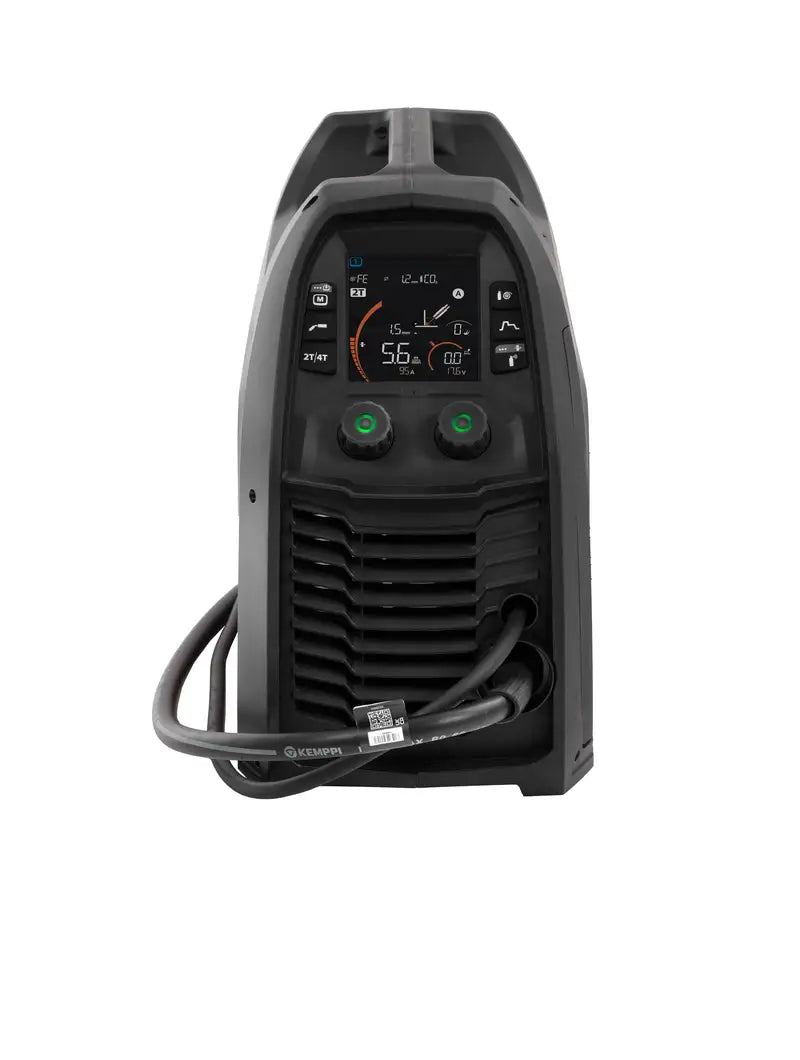

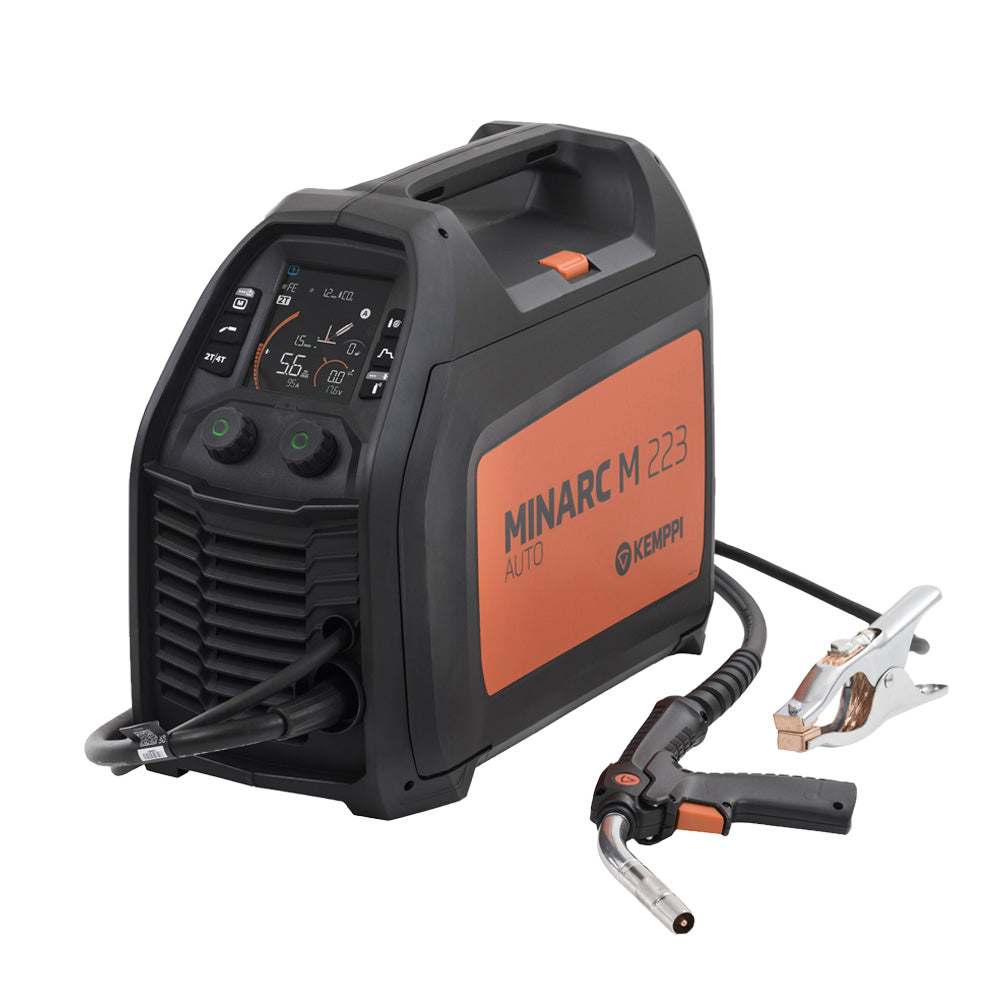

The Minarc M 223 AUTO is a Premium portable 240V MIG/MAG welding machine providing 220 A @ 20% duty cycle from a 1-phase mains supply and weighs 12 kg.
Manual and synergic welding options available. The power source can be used with a generator and it includes five memory channels.
Compatible with a wide range of materials, including steel (Fe), stainless steel (Ss), aluminum (Al), CuSi, Flux cored and Gasless filler wires.
Package includes power source, gas hose, drive roll, shoulder strap, earth return, power cable plug, gun handle and welding torch.
Technical Data
| Description | Value |
|---|---|
| Mains connection voltage | 230...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 7 kVA |
| Mains fuse | 15 A |
| Mains fuse (@MV low range) | 15 A |
| Idle state power consumption [P1idle] | 10 W |
| Output, duty cycle % at rated max. current, MIG | 20 % |
| Output at +40 °C, rated max current, MIG | 220 A |
| Output at +40 °C, 60% MIG | 160 A |
| Output at +40 °C, 100% MIG | 140 A |
| Output, duty cycle % at rated max. current, MIG (@MV low range) | 20 % |
| Output at +40 °C, rated max current, MIG (@MV low range) | 120 A |
| Output at +40 °C, 60% MIG (@MV low range) | 95 A |
| Output at +40 °C, 100% MIG (@MV low range) | 75 A |
| Output range, MIG | 15 A / 11 V ... 220 A / 28 V |
| Output range, MIG (@MV low range) | 15 A / 11 V ... 120 A / 23 V |
| Voltage adjustment range, MIG | 10 ... 32 V |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 85 % |
| EMC class | A |
| Welding connection type | Built-in |
| Wire feed mechanism | Single-motor, 2-roll |
| Diameter of feed rolls | 30 mm |
| Filler wire diameter, Fe | 0.6 ... 1.2 mm |
| Filler wire diameter, Fe-MC/FC | 1 ... 1.2 mm |
| Filler wire diameter, Ss | 0.6 ... 1 mm |
| Filler wire diameter, Al | 0.8 ... 1.2 mm |
| Wire feed speed | 0.5 ... 18 m/min |
| Maximum wire spool weight | 5 kg |
| Maximum wire spool diameter | 200 mm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 460 mm |
| External dimensions, width | 221 mm |
| External dimensions, height | 365 mm |
| Weight without accessories | 12 kg |
| Standards | IEC 60974-1, -10 |
