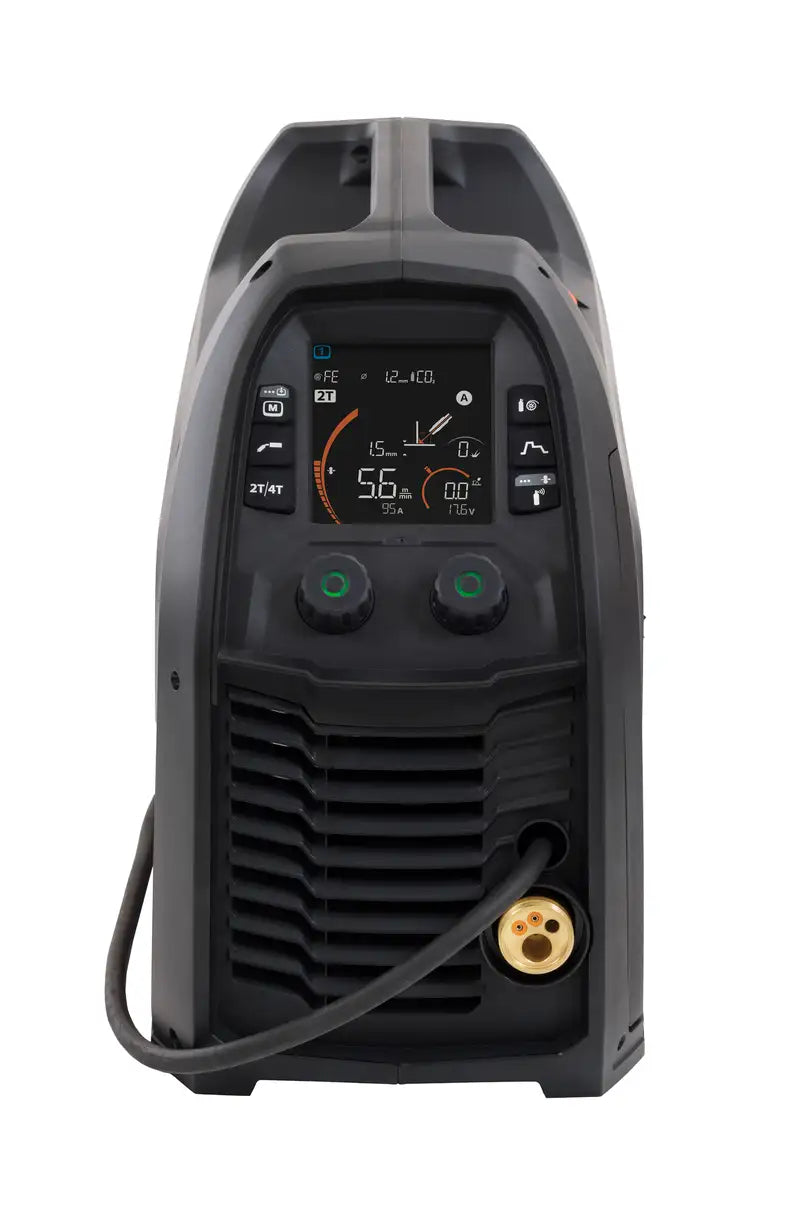

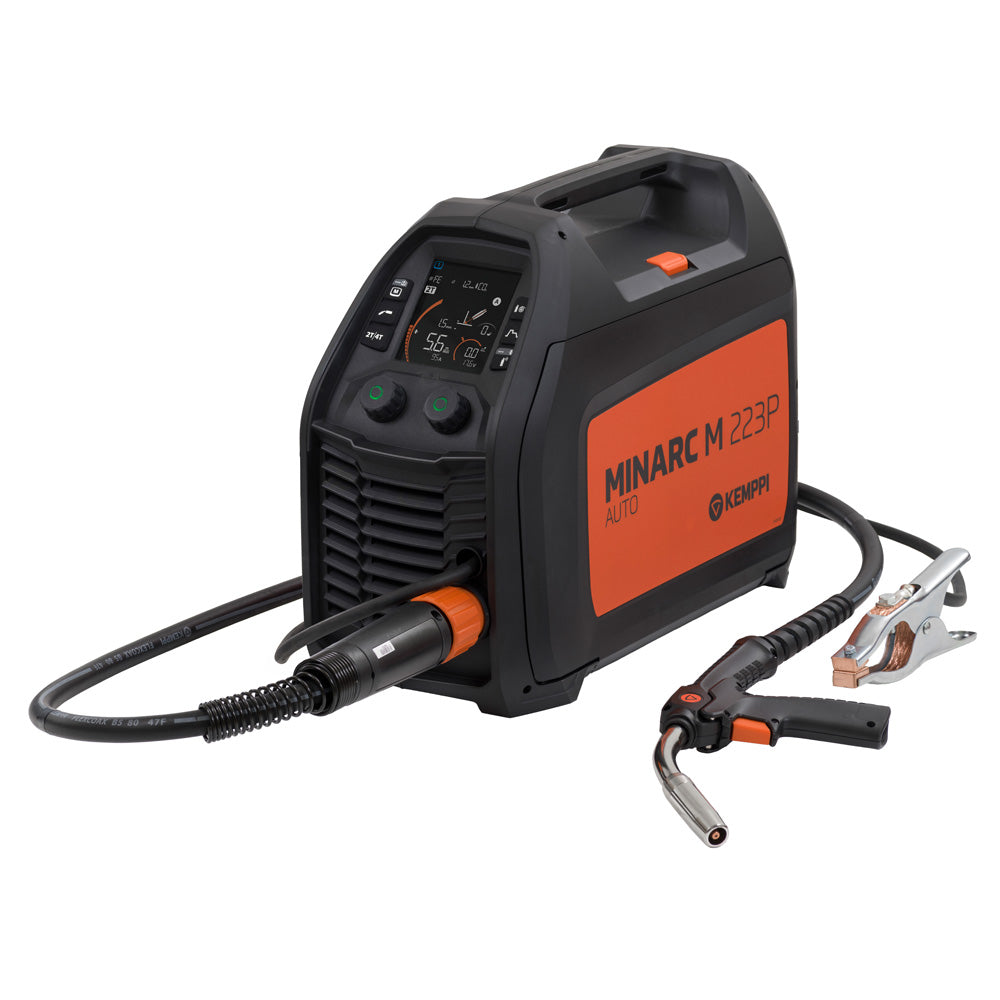

KEMPPI MINARC M 223P AUTO MIG WELDER
Couldn't load pickup availability
The Minarc M 223P AUTO is a single-phase 240V MIG/MAG machine that delivers serious power in a compact, portable package. Weighing just 12 kg, and up to 220 A of output, it offers one of the best power-to-weight ratios in its class. The precise digital wire feed control and wide range of filler materials & curves enable a variety of high-quality welding applications.
Built for real site treatment, Minarc M features a robust casing and a high-strength metal wire-feeder mechanism. Designed to get you welding fast; thanks to a large, easy-read display and clean controls that keep setup simple and downtime to a minimum.
The Minarc M 223P steps up with pulse welding capability, a Euro-connector, and an optional cooler which is ideal for fabrication environments where consistency and finish quality are non-negotiable. Both models come as a ready-to-weld package with the power source, gas hose, drive rolls, shoulder strap, earth return, power cable, separate pistol grip and gun package.
Exceed expectations with Kemppi’s Minarc M: the small but mighty MIG.
Technical data
| Description | Value |
|---|---|
| Mains connection voltage | 230...240 V ±10 % |
| Mains connection voltage (MV low range) | 110...120 V ±10 % |
| Mains connection phases | 1~50/60 Hz |
| Mains connection cable type | 3G, H07RN-F |
| Mains connection cable size | 1.5 mm² |
| Rated maximum input power [S1max] | 7 kVA |
| Mains fuse | 15 A |
| Mains fuse (@MV low range) | 15 A |
| Idle state power consumption [P1idle] | 10 W |
| Output, duty cycle % at rated max. current, MIG | 20 % |
| Output at +40 °C, rated max current, MIG | 220 A |
| Output at +40 °C, 60% MIG | 160 A |
| Output at +40 °C, 100% MIG | 140 A |
| Output, duty cycle % at rated max. current, MIG (@MV low range) | 20 % |
| Output at +40 °C, rated max current, MIG (@MV low range) | 120 A |
| Output at +40 °C, 60% MIG (@MV low range) | 95 A |
| Output at +40 °C, 100% MIG (@MV low range) | 75 A |
| Output range, MIG | 15 A / 11 V ... 220 A / 28 V |
| Output range, MIG (@MV low range) | 15 A / 11 V ... 120 A / 23 V |
| Voltage adjustment range, MIG | 10 ... 32 V |
| Power factor at rated maximum current [λ] | 1 |
| Efficiency at rated maximum current [η] | 85 % |
| EMC class | A |
| Welding connection type | Euro |
| Wire feed mechanism | Single-motor, 2-roll |
| Diameter of feed rolls | 30 mm |
| Filler wire diameter, Fe | 0.6 ... 1.2 mm |
| Filler wire diameter, Fe-MC/FC | 1 ... 1.2 mm |
| Filler wire diameter, Ss | 0.6 ... 1 mm |
| Filler wire diameter, Al | 0.8 ... 1.2 mm |
| Wire feed speed | 0.5 ... 18 m/min |
| Maximum wire spool weight | 5 kg |
| Maximum wire spool diameter | 200 mm |
| Operating temperature | -20 ... 40 °C |
| Storage temperature | -40 ... 60 °C |
| Recommended minimum generator power [Sgen] | 8 kVA |
| Degree of protection (fully installed) | IP23 |
| External dimensions, length | 460 mm |
| External dimensions, width | 221 mm |
| External dimensions, height | 365 mm |
| Weight without accessories | 10.85 kg |
| Standards | IEC 60974-1, -10 |
