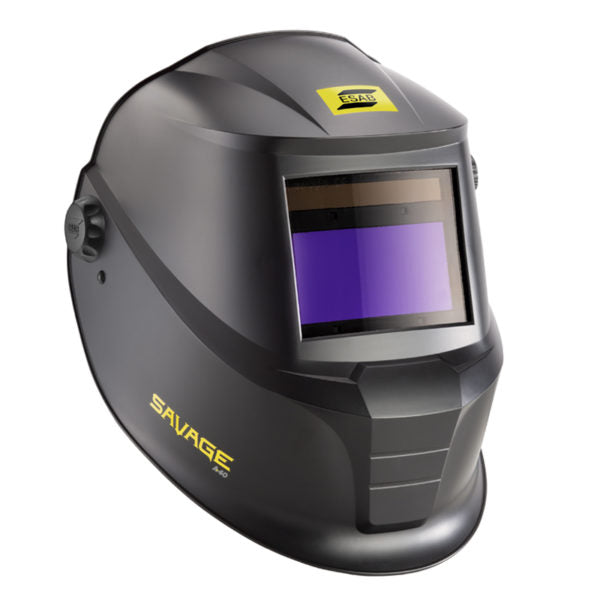

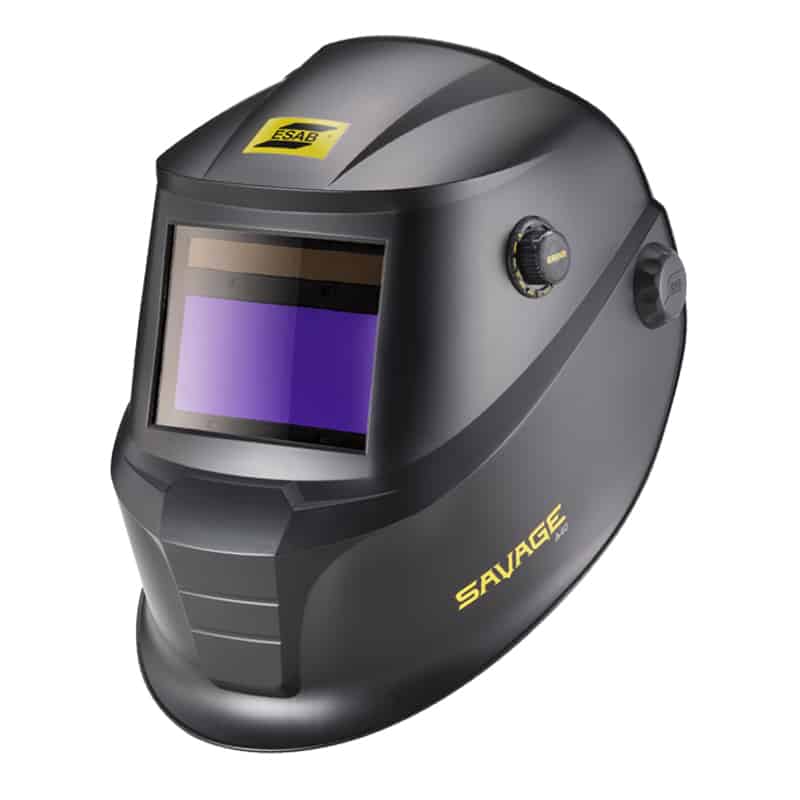

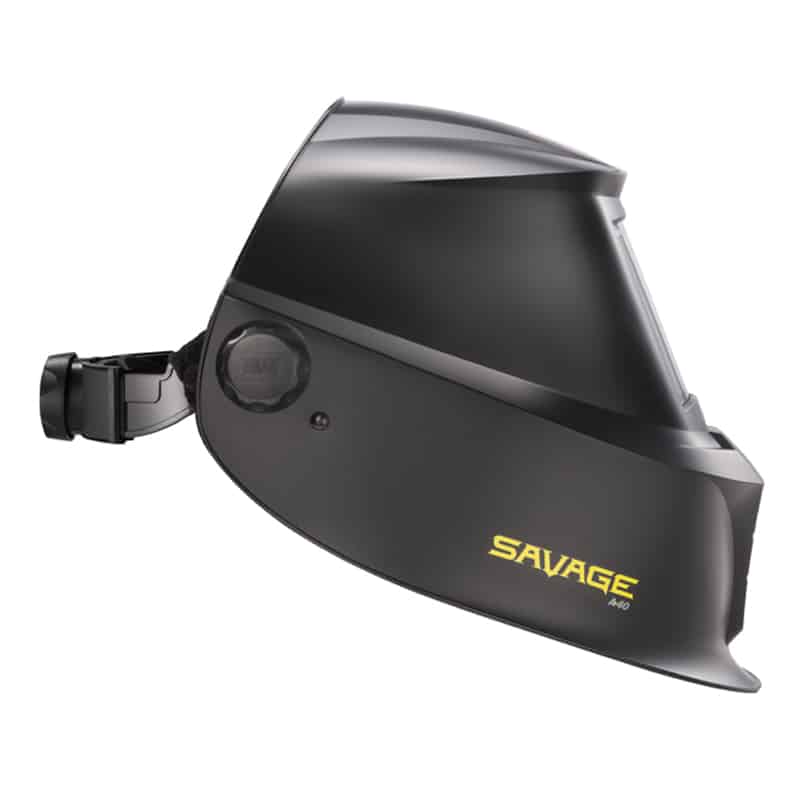

Esab Savage A40 Welding Helmet

ENTER SAVAGE MODE!

With radical design cues inspired by our best-selling Sentinel A50 Helmet, a brighter view, and enhanced colour definition, the SAVAGE A40 Automatic Welding helmet lets occasional and professional fabricators alike unleash a new world of welding and cutting performance. All backed by a massive 3-year warranty!

EXCEPTIONAL COMFORT

Savage A40’s lightweight shell comes with all-new adjustable headgear to provide exceptional comfort while protecting from heat, sparks, and spatter – no matter the application.

CRAZY OPTIMAL PERFORMANCE

We equipped Savage A40 with a 100 x 50mm viewing area for a wider field of vision and greater spatial awareness. Its 1/1/1/2 optical-class lens features our ultra-clear true-color technology for increased weld pool clarity and enhanced definition.
The result? A bigger, better view.

EXTREME TECHNOLOGY

With Savage A40, the sensitivity and delay controls inside the helmet allow for seamless setting adjustments. And Savage A40’s four light sensors provide a faster auto-darkening response, especially when working out of position.

Cartridge Dimensions
110 x 90 x 7.8 mm

Viewing Area
100 x 50 mm

Impact Rating
High

Lens Shade
9 - 13 Automatic

Power Supply
Solar cell, replaceable battery (1 x
CR2450 lithium); alerts when low
battery

Sensors
4

Switch Time, from Light to Dark
0.1–0.9 s

Switch Time, at 23°C
0.07 ms

Classifcation
1/1/1/2

Standards
CE EN379 and EN175,
ANSI, CSA, AS/NZS

Weight
500g
