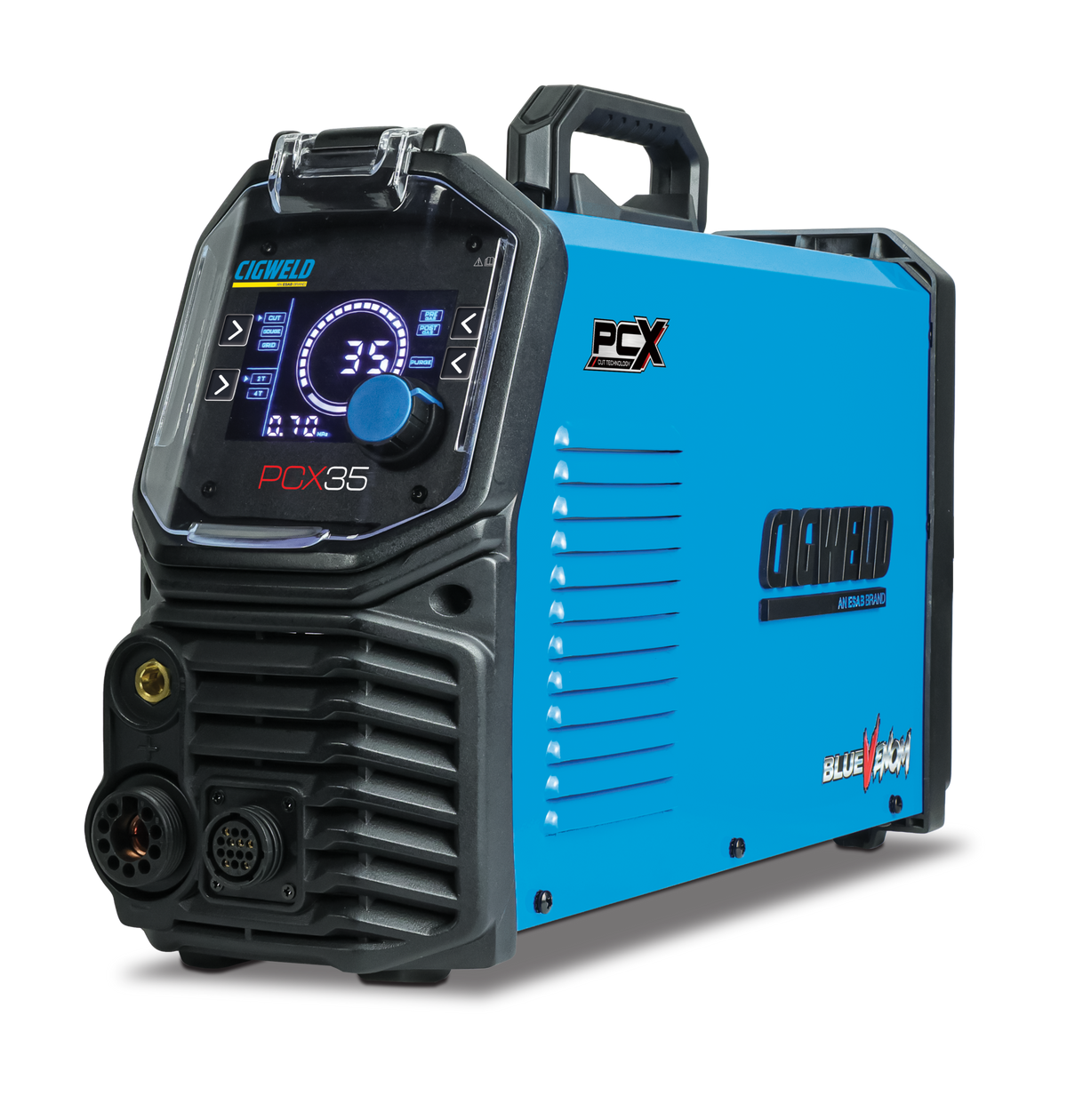

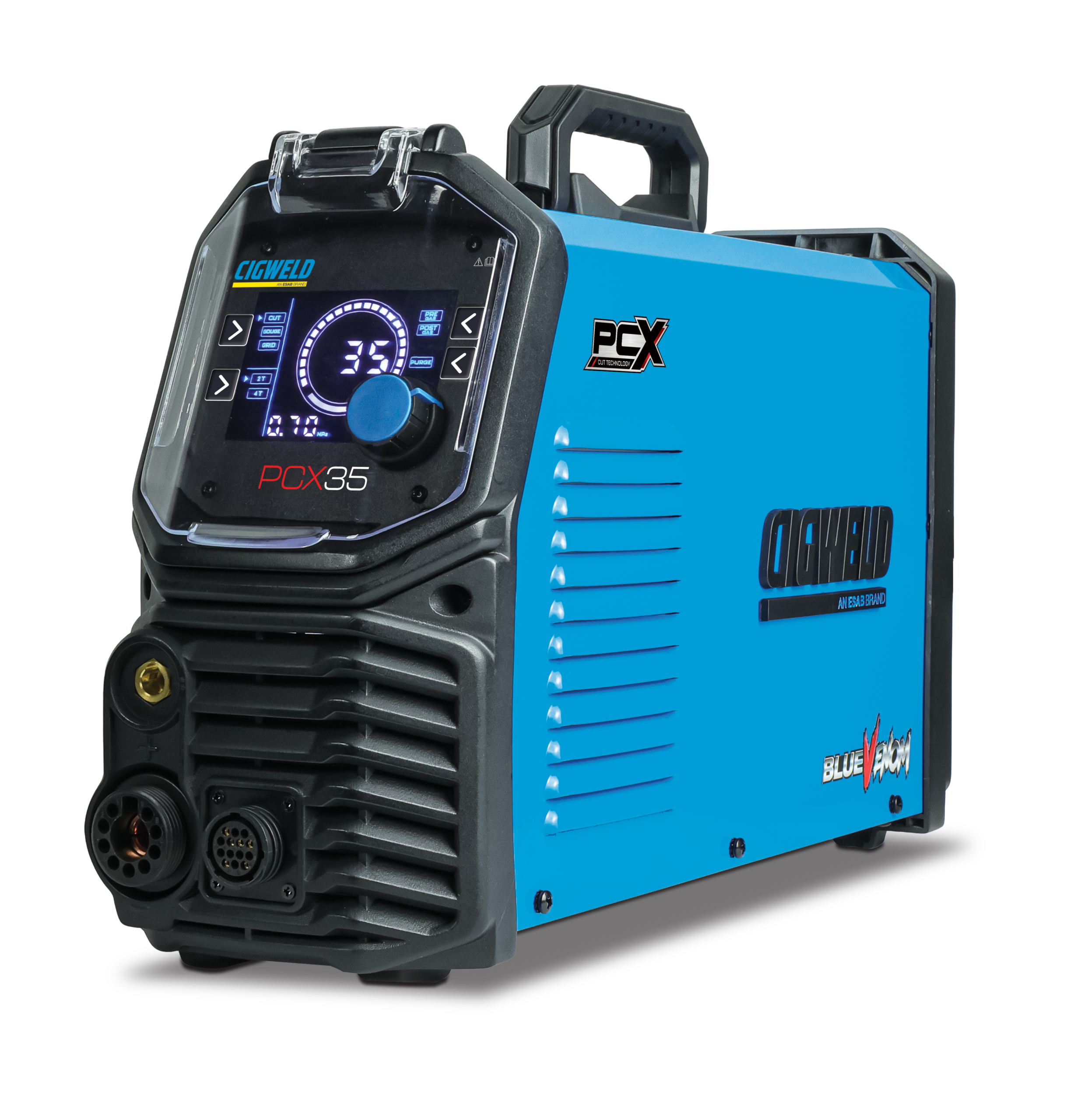

CIGWELD BlueVenom PCX35 Plasma Cutter
Couldn't load pickup availability
The BlueVenom PCX35 plasma cutter delivers serious cutting power in a compact and portable package. With cutting capacity of up to 12mm it is built for speed, precision, and productivity.
Weighing under 9kg, it makes it easy to carry on-site or around the workshop without compromising power. It can be used as a portable handheld plasma cutter or integrated into a CNC cutting system for automated precision.
Features & Benefits:
- Clean cut thickness: up to 12mm
- Severance thickness: up to 16mm
- Lightweight & portable – 8.8kg
- Hover Start arc striking for reliable ignition
- Power Factor Correction
- CNC Ready
- Simple torch connection with ergonomic handle
- Protected to IP21S
SPECIFICATIONS
Weight: 15kg
Warranty: 5 Years
Generator Requirement: 6kVA (0.8 Power Factorat Max Amps)
Dimensions Power Source: 483(L) x 147(W) x 292(H)mm
Power Supply: Single Phase 10A Plug 230V +/-15%"
Rated Duty Cycle @ 40°C: 35A @ 35%, 94.0V
Australian Standard: AS 60974.1:2020
Nominal Supply Frequency: 50/60Hz
Package Dimensions: 560(L) x 255(W) x 345(H) mm
Weight Power Source: 8.8kg
Mild Steel Clean Cut: 12mm
Mild Steel Severance: 16mm
Stainless Clean Cut: 10mm
Aluminium Clean Cut: 10mm
Supply Lead & Plug: 10 Amp
Amperage Range: 20A –35A
Input Air Required: 0.38 –0.75 MPa (5.5 –7.5 bar)

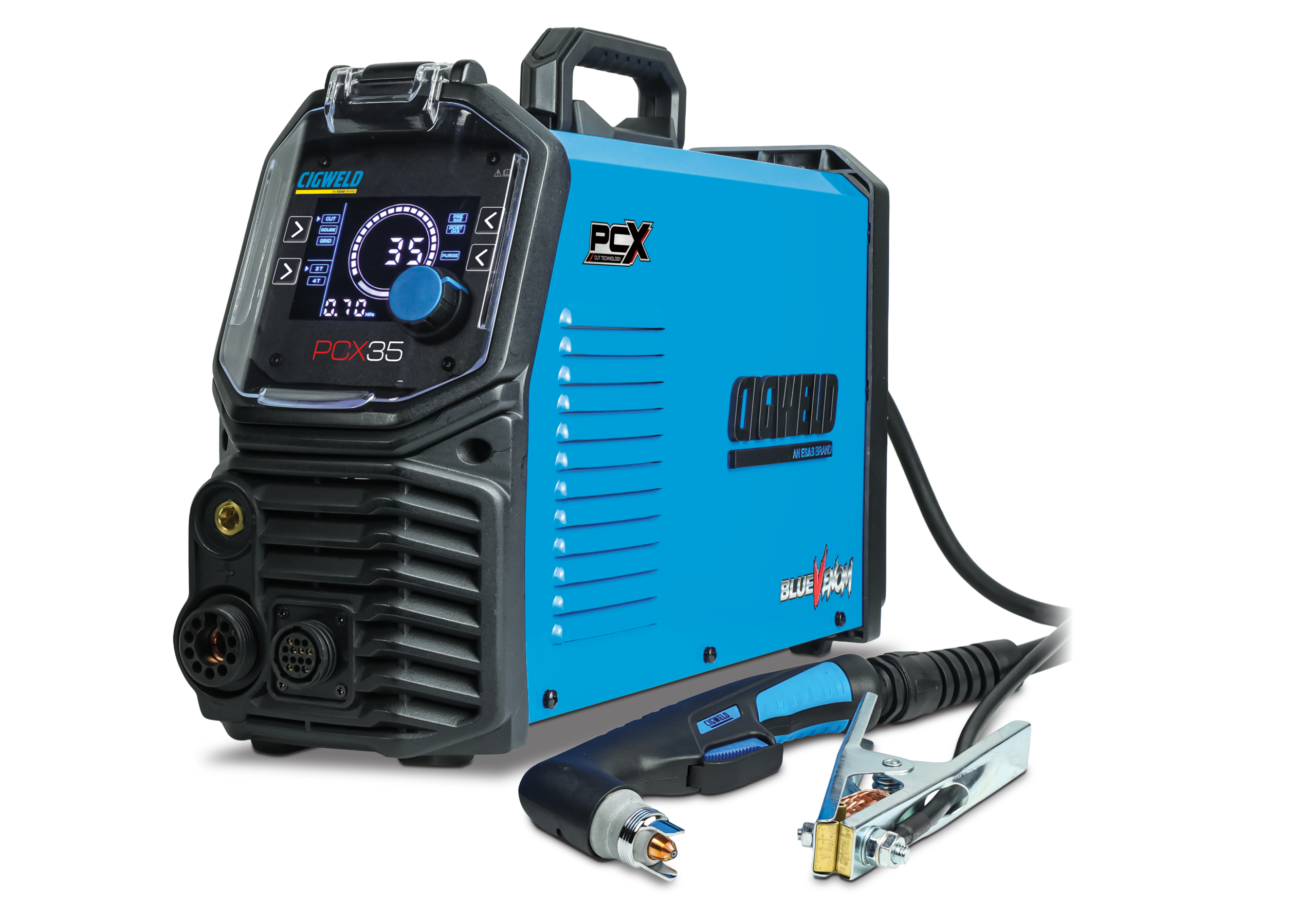

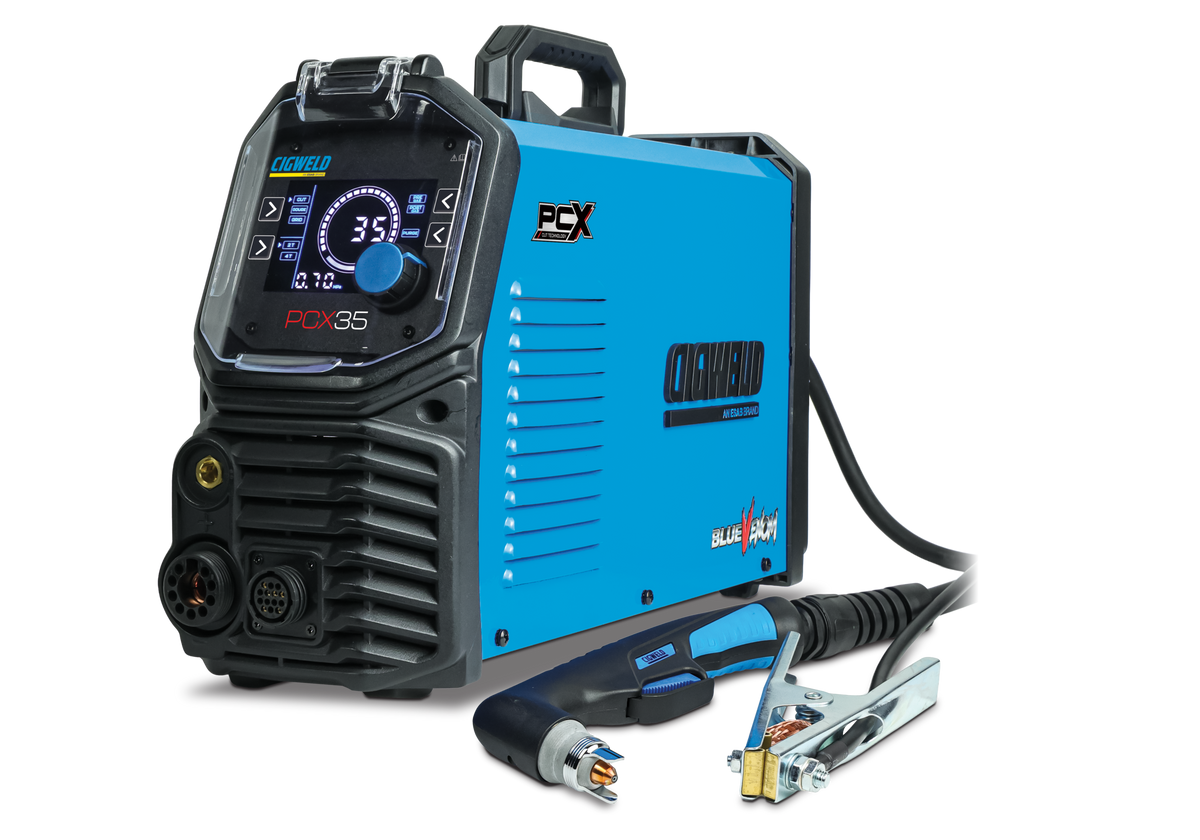

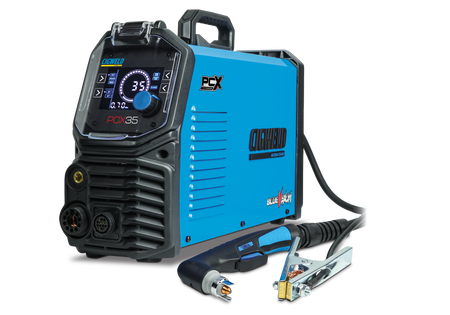

WHAT'S INCLUDED
• BlueVenom PCX35 Power Source
• BlueVenom 60A Plasma Torch 6m
• Work Cable and Clamp 3m
• ¼” Nitto Air Line Connector
• Operating Manual
