CIGWELD BlueVenom XF250 AC/DC SiC

The BlueVenom XF250 AC/DC is a 250 Amp, high-performance TIG inverter built for welders who demand flawless results. Designed to deliver showcase-quality welds, it features
precision-tuned synergic settings and multiple AC waveforms so you can jump straight into aluminium work and start stacking dimes from the first strike!

High Frequency Start. No touch. No contamination. Position the torch, press the trigger, and fire a clean, instant arc protecting your tungsten and delivering sharper, cleaner welds every time.

Operating from a standard 15A, single-phase 230V power supply, the BlueVenom XF250 AC/DC SiC incorporates Power Factor Correction (PFC) technology to maximise energy
efficiency and maintain consistent output, even when used with extended lead lengths.

Boasting an IP23S rating, the BlueVenom XF250 AC/DC SiC is protected against small debris and light rain, ready for use in industrial and outdoor environments.

Effortless control starts with the intuitive 5-inch full-colour touchscreen, giving instant access to every welding parameter through a clean, streamlined interface. Sync
settings to material thickness or take full manual control to fine-tune performance exactly your way.

Raising the bar for versatility and performance, the BlueVenom XF250 AC/DC SiC brings together multiple welding processes with advanced functionality to meet the
demands of virtually any application. Use AC TIG to weld aluminium with up to 9 different waveforms (sine, square, triangle). Combine the cleaning power of AC and the penetrating power of DC with Mixed AC+DC TIG mode to weld thicker aluminium plates. Select Cold TIG for ultra short pulses to weld thin delicate plates. The possibilities are endless with our most advanced welding range.

Dynamic Arc Control continuously monitors and adjusts current in real time to maintain a stable, consistent TIG arc, even as welding conditions vary. By compensating for changes in arc length and torch movement especially in challenging positions it ensures smoother arc performance, precise heat management, and consistently high-quality welds.

The BlueVenom XF250 AC/DC TIG continues its value packed offer by including Stick as well as Stick with Pulse producing cleaner welds with less spatter due to better arc and heat control – better for vertical or overhead welds (over standard Stick).

Stick also enables the user to weld where TIG is not feasible ie: outdoors, no gas availability, remote access, dirtier materials or where a more economical option is required.

With an impressive 100x memory bank, you can save and load job parameters instantly, enabling quick and seamless switching between jobs.

Powered by a 5” Full Colour Touch LCD display, you can access all you need from the 1 screen, allowing you to spend more time welding and less time searching for settings.

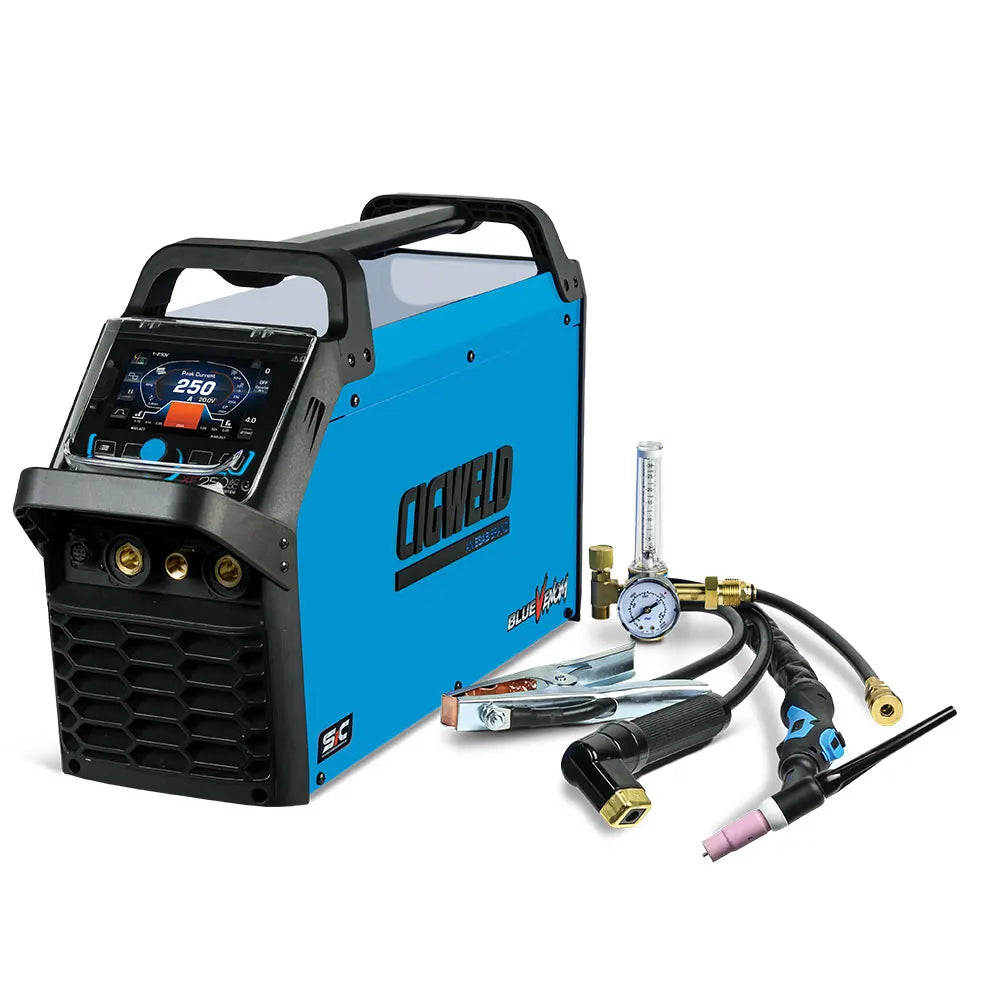

WHAT’S IN THE BOX:
• BlueVenom XF250 AC/DC SiC Power Source
• Dimex Elite 26F, 8m ‘Flex Head’ TIG Torch with Trigger
Button and Remote Current Control
• Fully Equipped with TIG Kits
• 250A Twist lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 250A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Operating Manual
