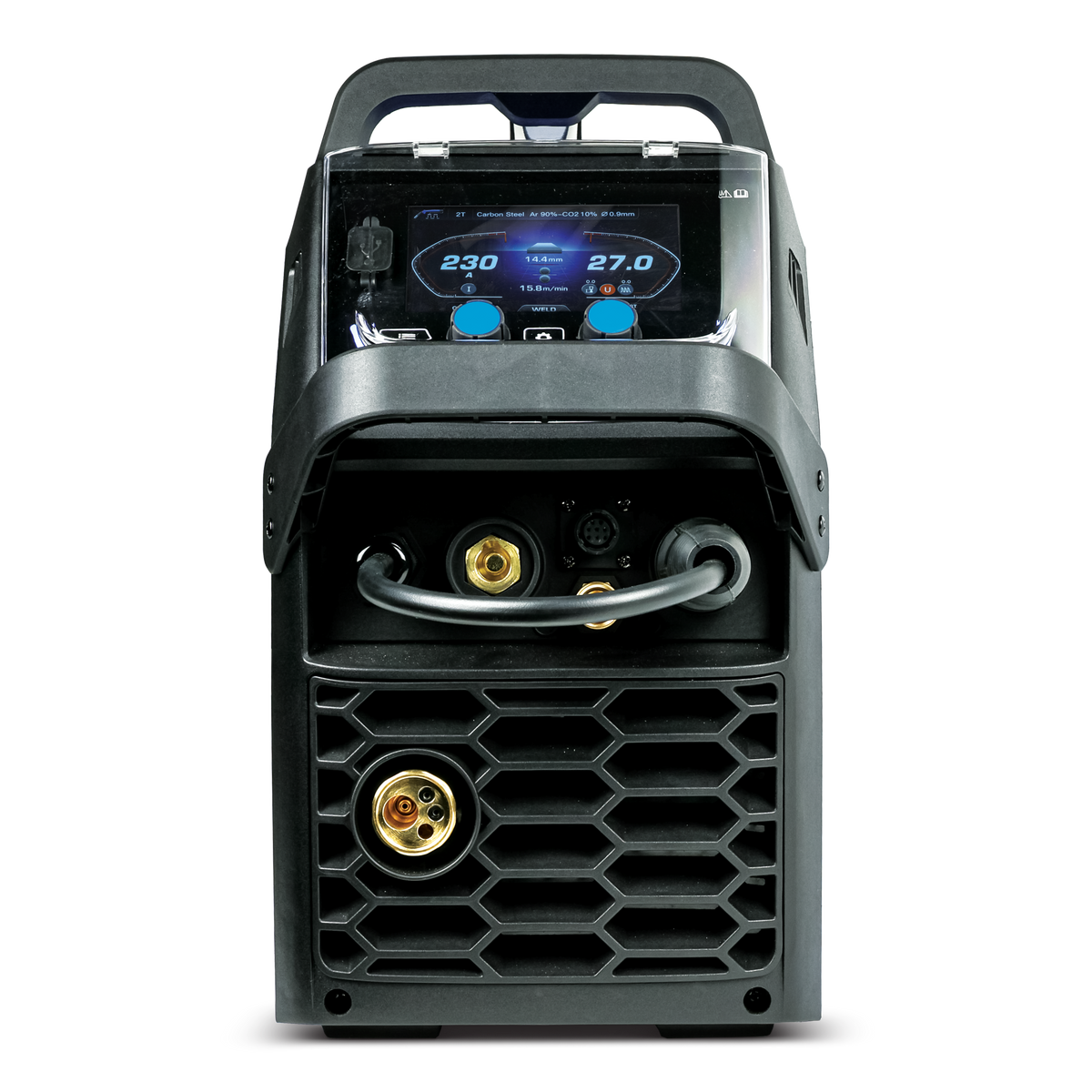

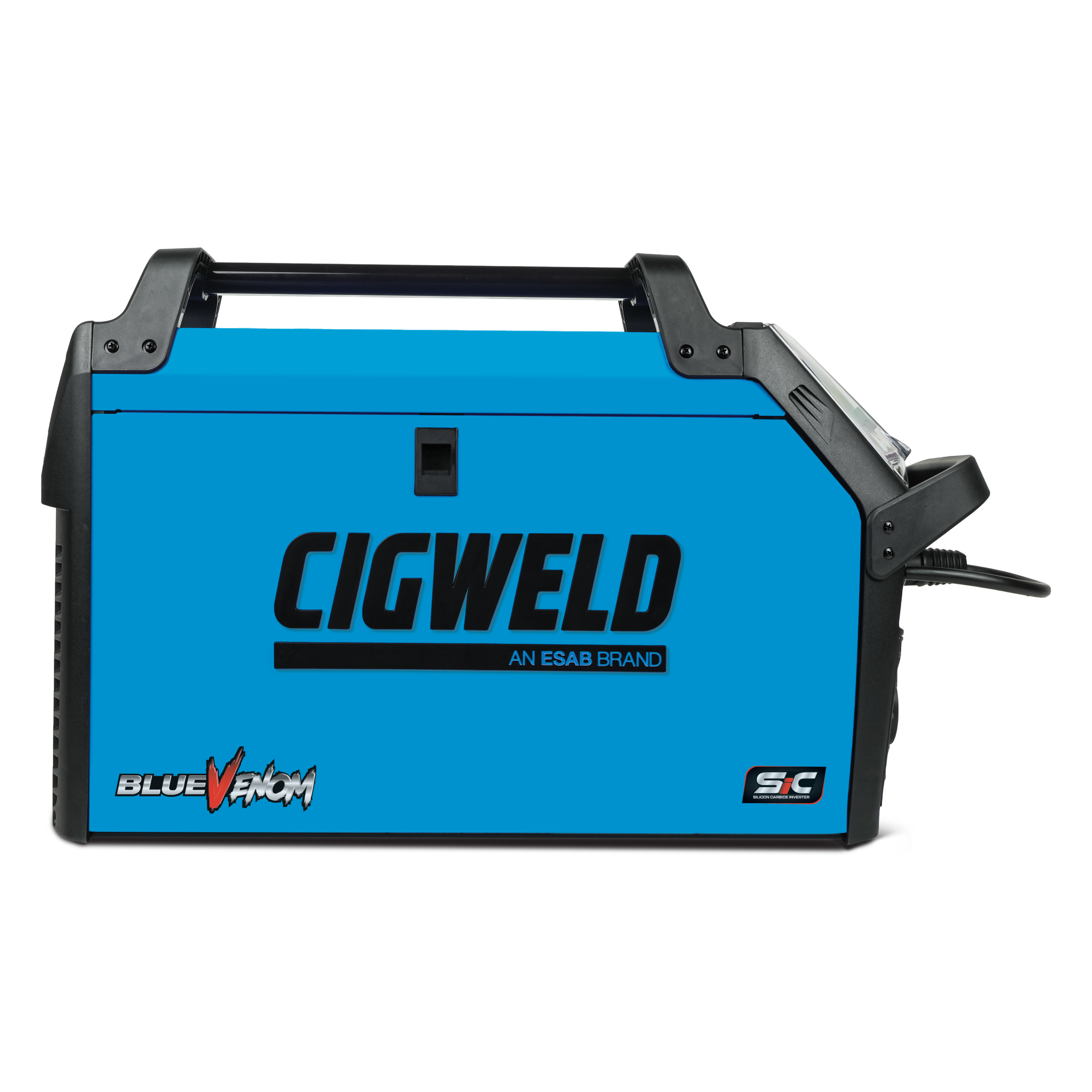

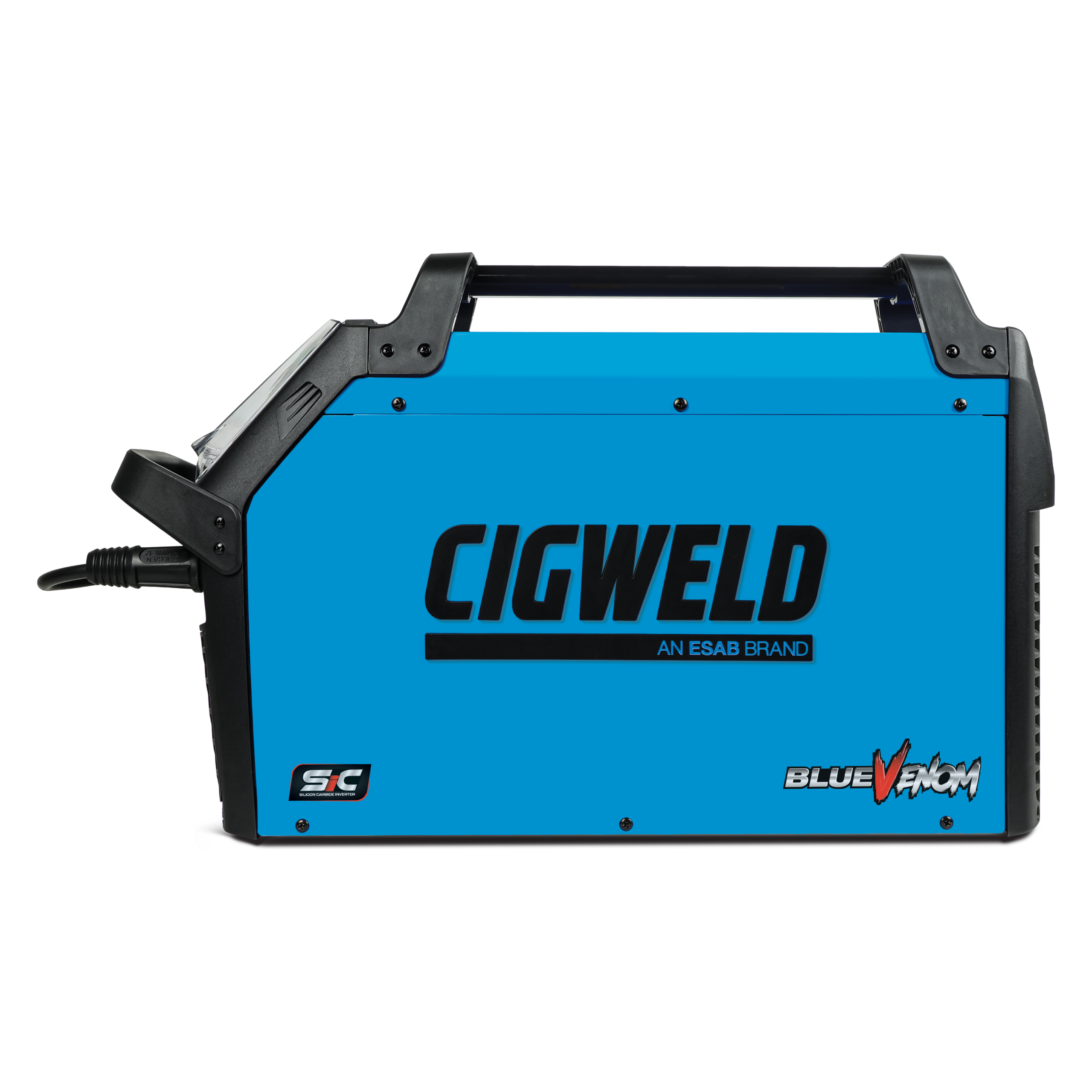

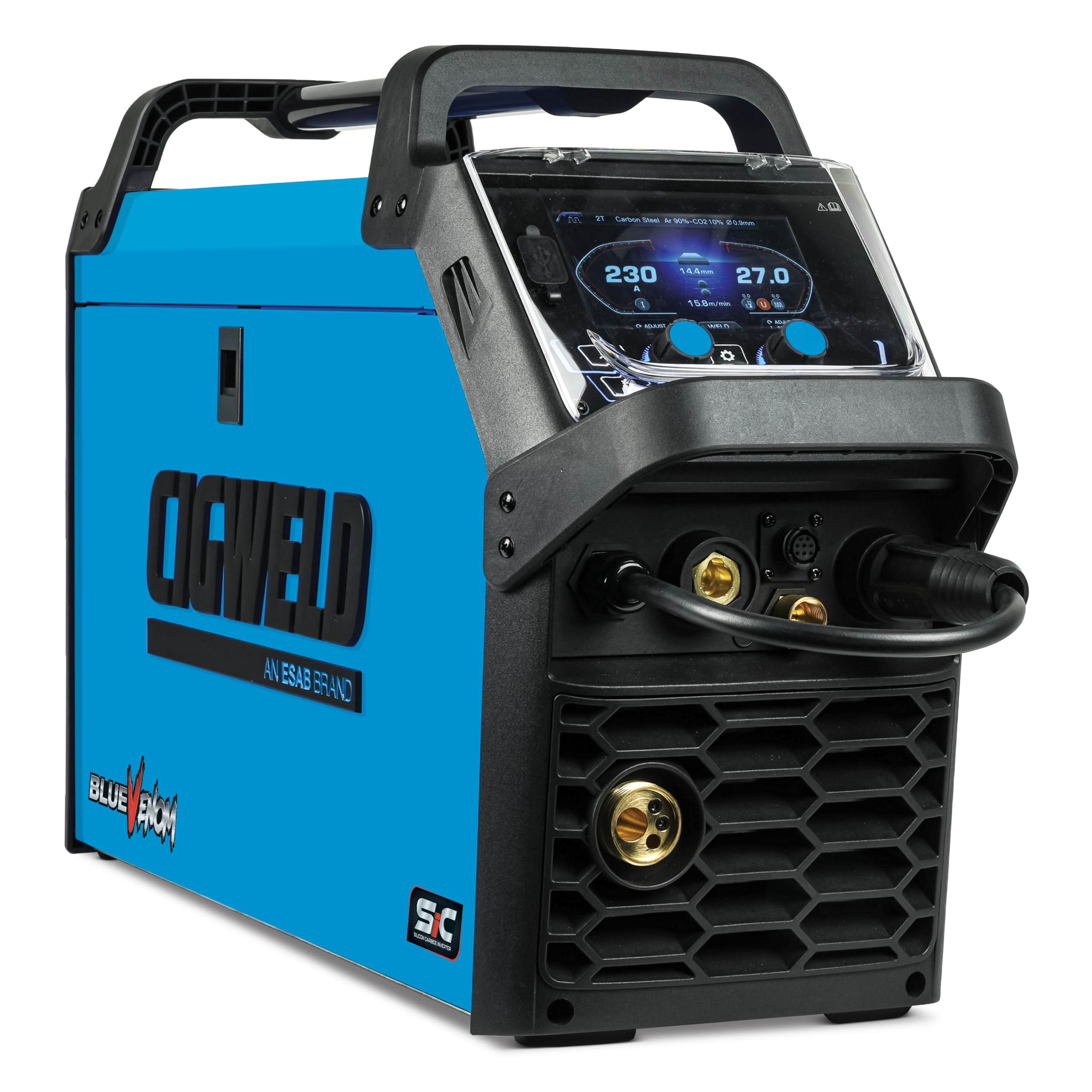

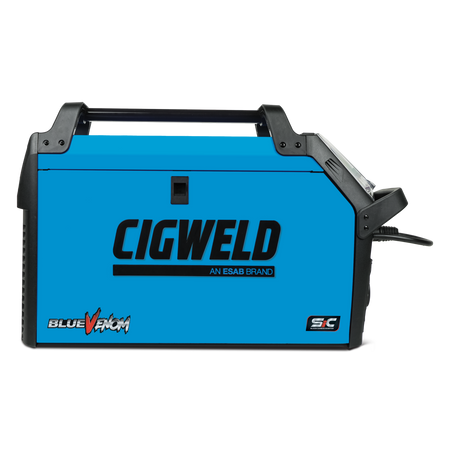

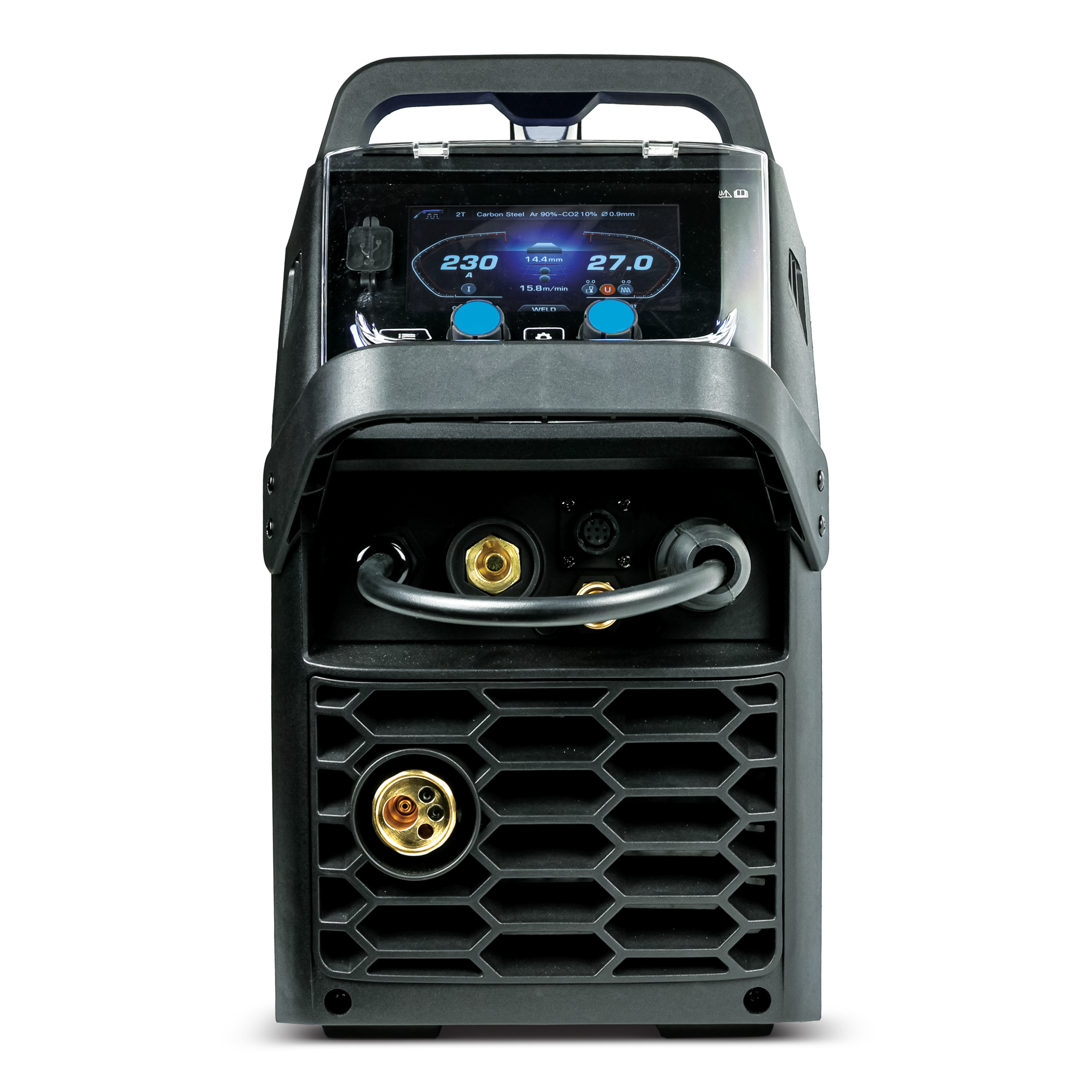

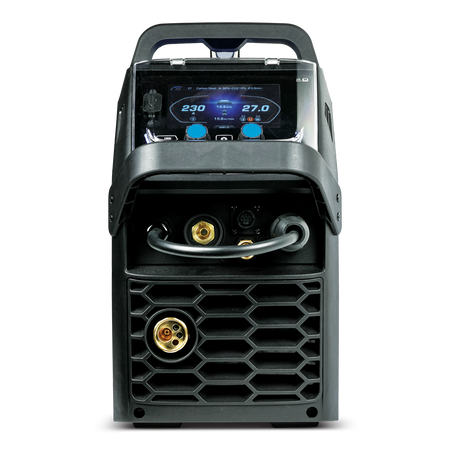

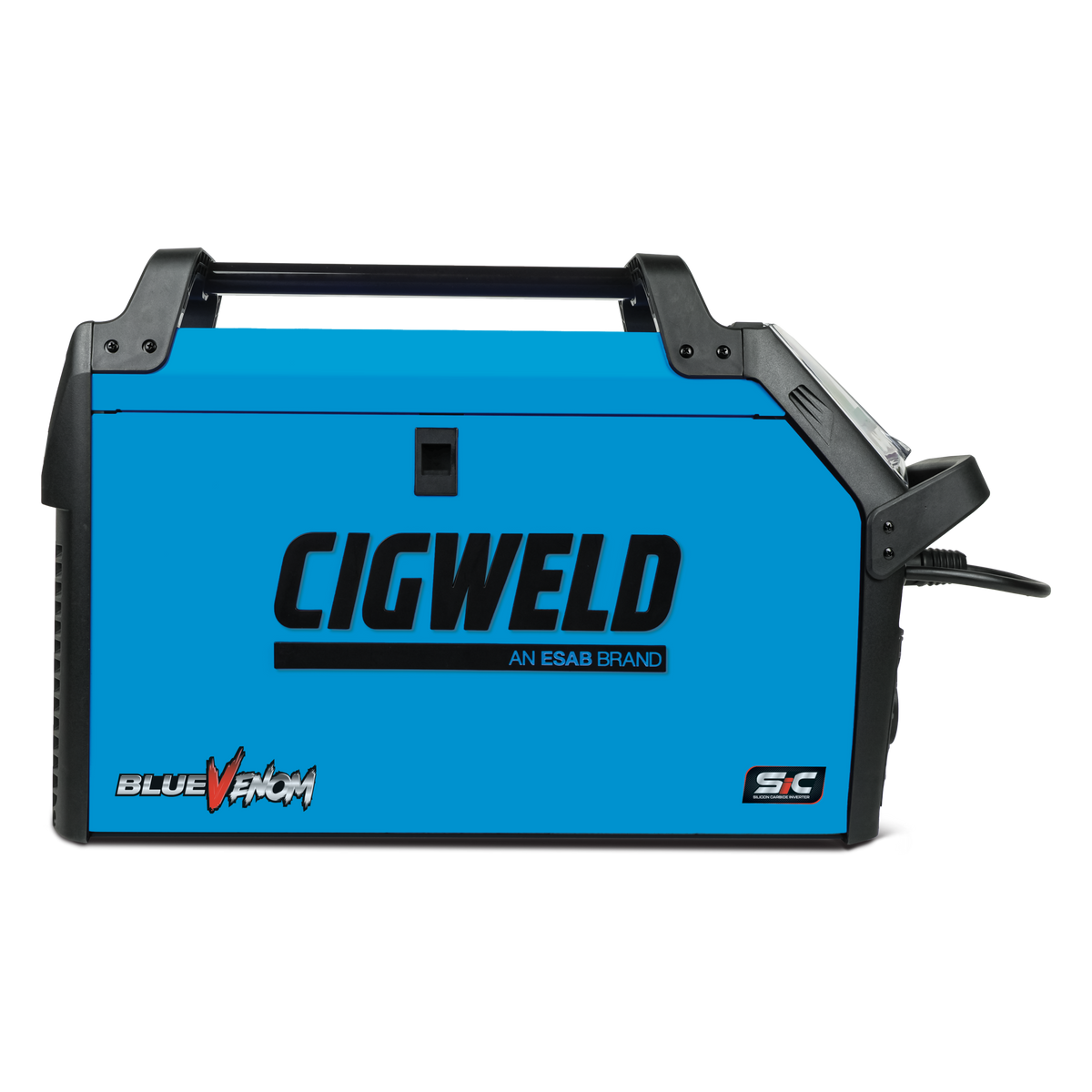

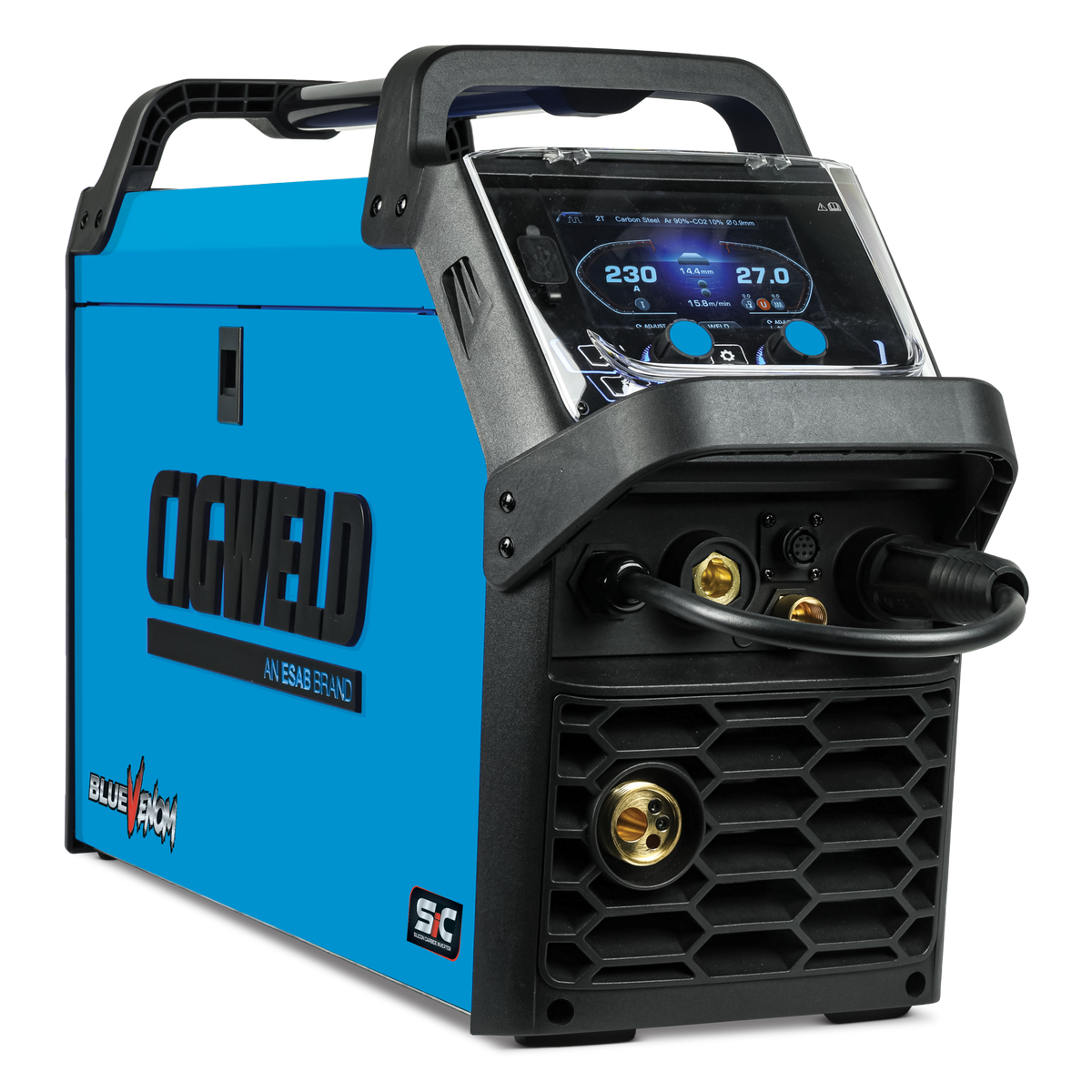

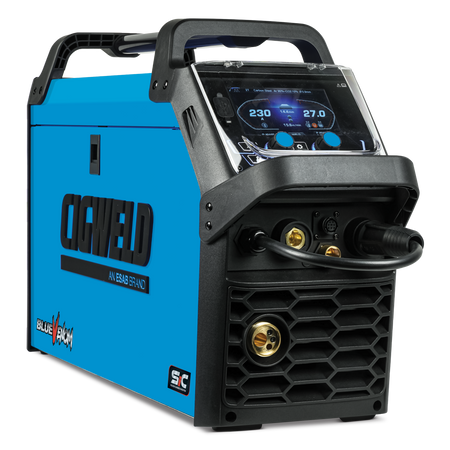

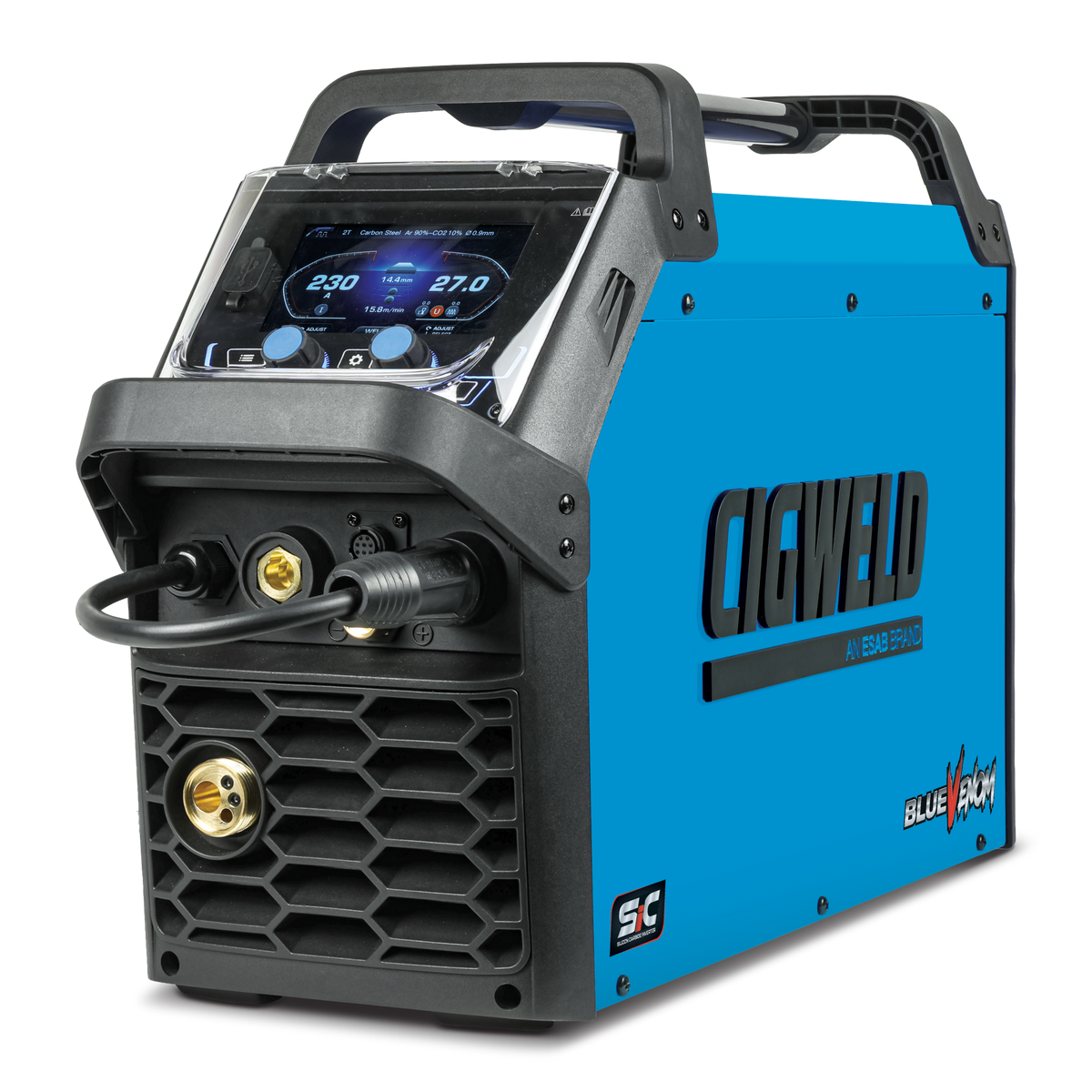

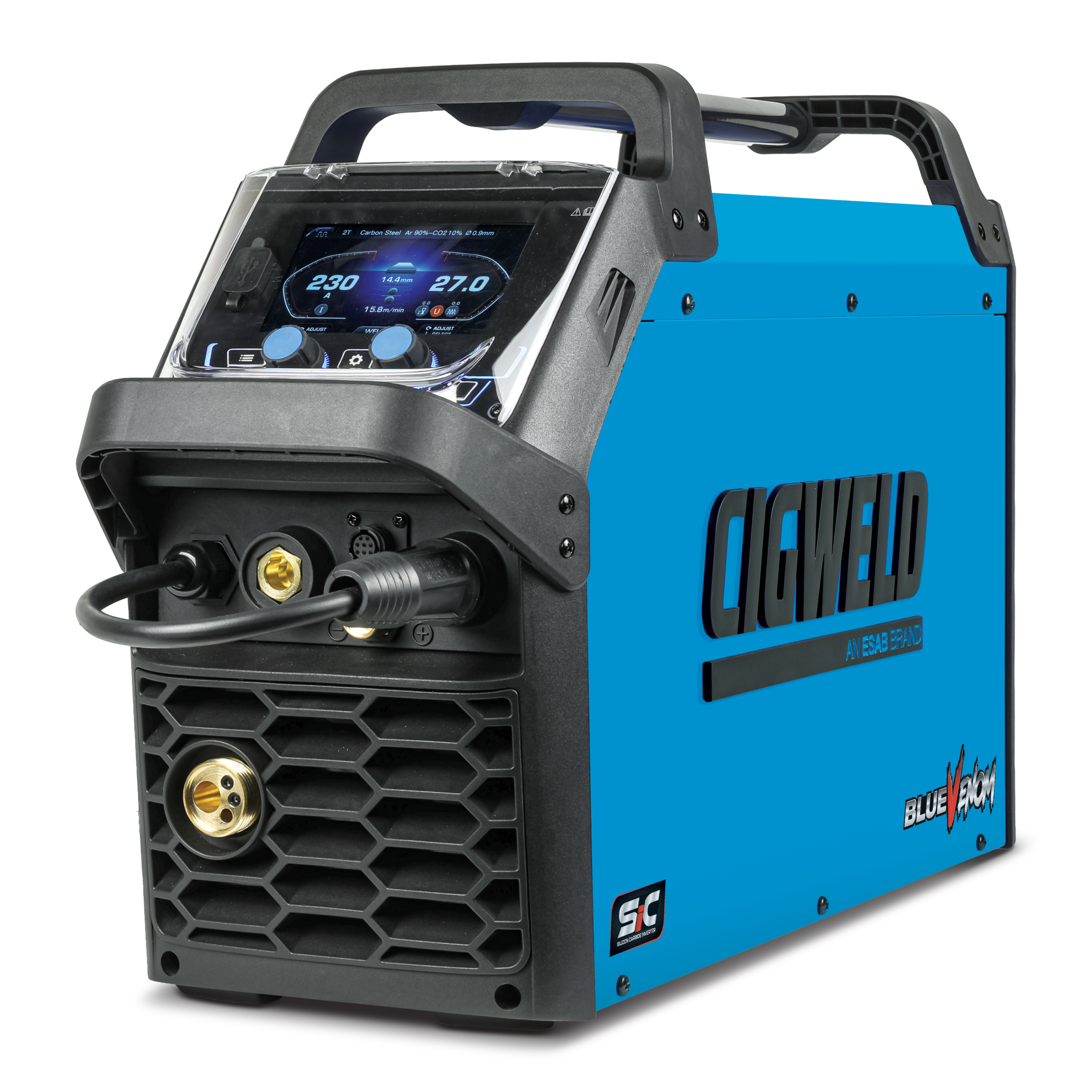

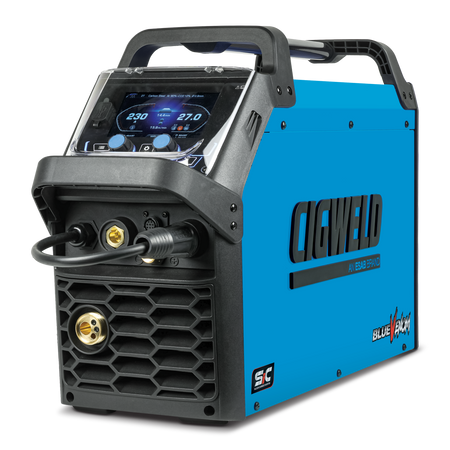

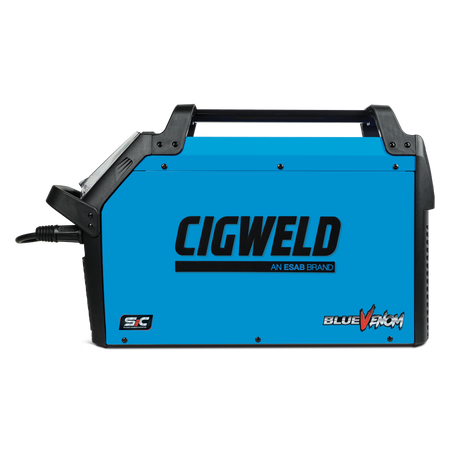

Cigweld BlueVenom XF230 6-in-1 SiC

The BlueVenom XF2306 SiC sets a new benchmark in welding performance. This 230 Amp multi-process powerhouse, driven byadvanced Silicon Carbide (SiC) Inverter technology, provides precise, consistent results across a wide range of materials and applications, empowering professionals to tackle any welding challenge with confidence.

Exceptional versatility enables seamless transitions from routine mild steel fabrication to high-precision AC TIG showcase welds, powered by six intuitive operating modes: MIG, Single Pulse MIG, Double Pulse MIG, HF DC TIG, HF AC TIG, and Stick. With further
advanced modes featuring Mixed AC+DC TIG, Cold Weld TIG and Pulse on both TIG and Stick.

Powered by a standard 15A, single-phase 230V supply, the BlueVenom XF2306 SiC is further enhanced with Power Factor Correction (PFC) technology, ensuring improved energy efficiency and stable performance, even when operating with extended cable
lengths.

Boasting an IP23S rating, the BlueVenom XF2306 SiC is protected against small debris and light rain, ready for use in industrial and outdoor environments.

The BlueVenom XF2306 SiC takes TIG welding up a notch, offering a wide selection of advanced TIG welding modes and control. Use AC TIG to weld aluminium with up to 9 different waveforms. Combine the cleaning power of AC and the penetrating power of
DC with Mixed AC+DC TIG mode to weld thicker aluminium plates. Select Cold TIG for ultra short pulses to weld thin delicate plates. The possibilities are endless with our most advanced welding range.

Developed with advanced Silicon Carbide (SiC) Inverter technology, the BlueVenom XF2306 SiC is engineered to handle your next project with confidence. It delivers
superior efficiency in a compact, reliable design by minimizing power losses, enhancing arc stability, and optimizing thermal performance, resulting in smoother welds and an extended machine life.

Fast, Precise, Unstoppable! Achieve TIG-like welds at MIG speed with MIG Single and Double Pulse, tackle bigger jobs, and master tricky angles with Pulse Stick technology. The BlueVenom 2306 SiC is your ultimate workhorse!

Need to weld aluminium? The BlueVenom XF2306 SiC is Spool Gun and Push-Pull Gun ready, granting you further reach and preventing birdnesting of softer aluminium wires.

The NEXARC MIG gun range is interchangeable, allowing you to upgrade the included DGX36 to an OLED screen with a quick swap.

With an impressive 100x memory bank, you can save and load job parameters instantly, enabling quick and seamless switching between jobs.

Powered by a 5” Full Colour Touch LCD display, you can access all you need from the 1 screen, allowing you to spend more time welding and less time searching for settings.

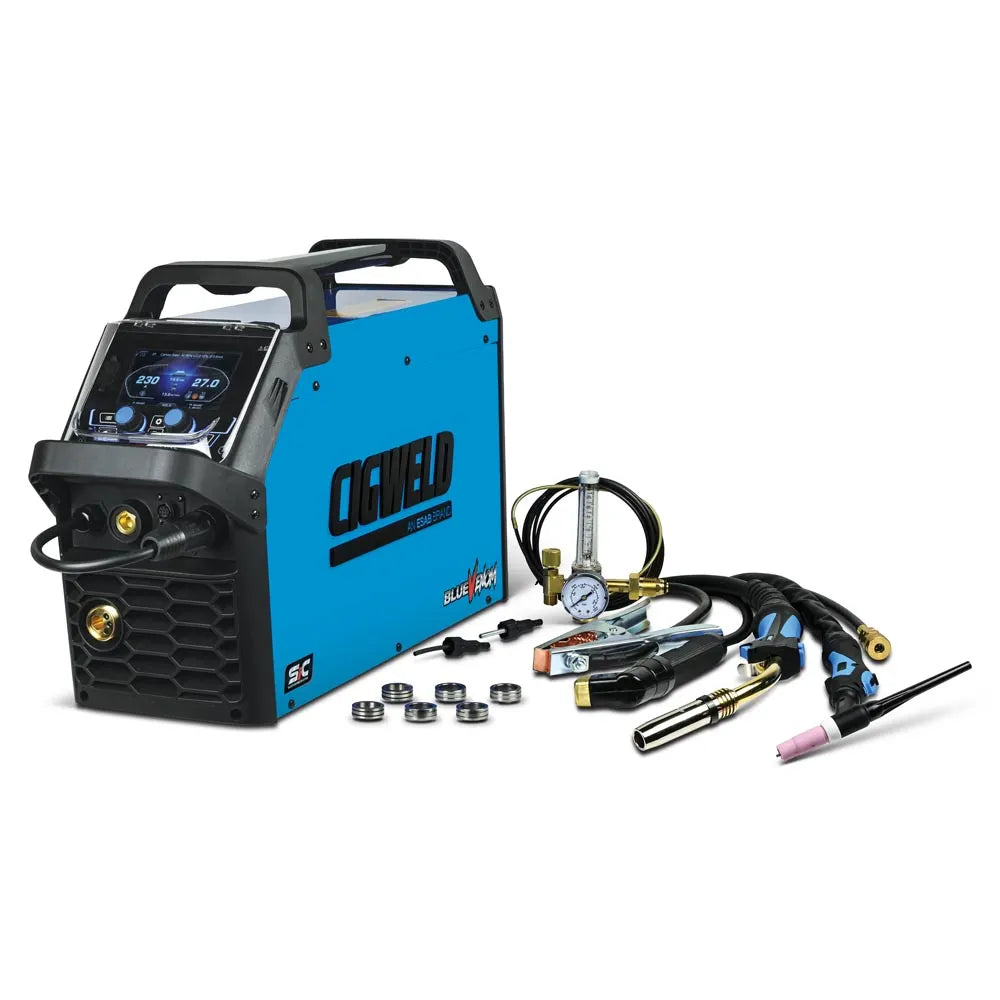

WHAT’S IN THE BOX:
• BlueVenom XF2306 SiC 6in1 Power Source
• NEXARC DGX 36, 3m MIG Gun with 4-Button Control, BZ36 Style
• Dimex Elite 26F, 4m ‘Flex Head’ TIG Torch with Trigger Button
and Remote Current Control
• Fully Equipped with Fitted MIG Consumables,
Spare Tip & TIG Kits
• 250A Twist lock Electrode Holder with 3m Lead
• 3m Quick Connect Gas Hose
• 250A Earth Clamp with 3m Lead
• BlueJet Regulator/Flowmeter
• Mild Steel & Nylon Liner, Inlet/Outlet Guides
• Feedrolls: 0.8/0.9mm (x2) Knurled (Fitted),
0.8/0.9mm V (x2), 1.0/1.2mm U (x2)
• Operating Manual
