BT Weld PULSEMIG 300 - Compact

SKU: 658301
$4,500.00 inc. GST
Finance Calculator

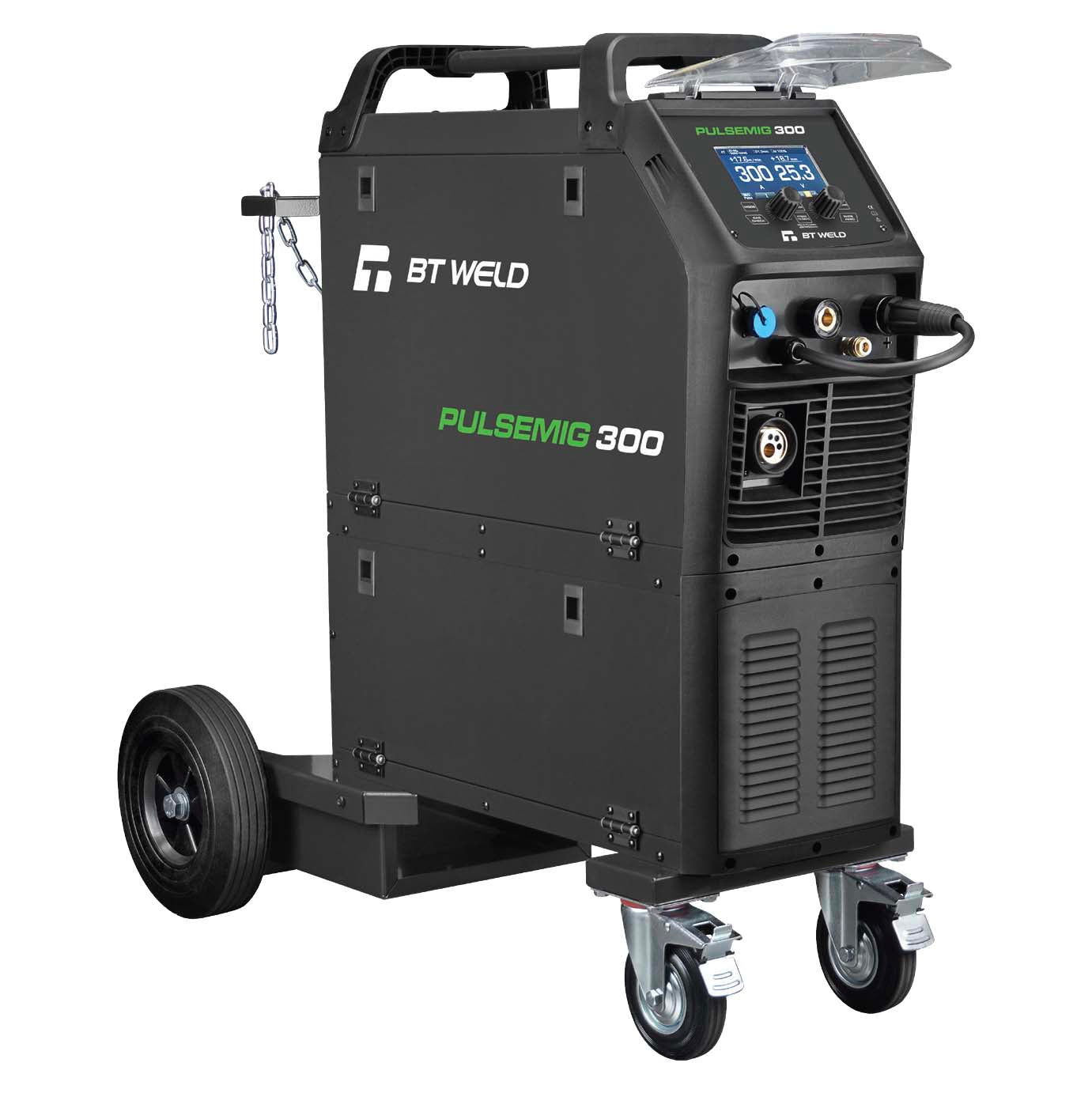

The BT Weld PULSEMIG 300 Compact is a high-performance 415V pulse MIG welder, designed for industrial and workshop applications requiring precision, efficiency, and power.

With 300A output, advanced pulse MIG technology, and a compact design, this welder ensures clean, high-quality welds with minimal spatter, making it ideal for fabricators, manufacturers, and trade professionals.

FEATURES:

    • 300A Output
    • 5" Colour LCD Screen
    • 2T/4T/S4T/Spot Weld
    • Suits D200 & D300 Spools
     • 4 Roll Wire Drive System
     • 4-Wheel Trolley
     • Weld Parameter Storage
     • Separate Wire Feeder

  • Duty Cycle: 60% @ 300A
  • Generator: 18 Kva
  • Plate Thickness: Max. 16mm
  • Material: Mild Steel, Stainless, Carbon Steel, Copper Steel, Aluminium (MIG only)



PROCESS:

  • MIG SINGLE / DUAL PULSE
  • MIG SYNERGIC / MANUAL
  • MIG GAS / GASLESS
  • TIG LIFT DC
  • STICK (MMA)

SPECIFICATIONS:

Primary Input Power 3 Phase 415V 50-60 HZ +/-15%
Duty Cycle @ 40 ̊C 10min   60% @ 300A
100% @ 235A
  MIG             TIG           MMA
Effective Current (A) 15.9 12.6 17.1
Rated Input Current (A) 20.6 16.3 22.1
Rated Input Power (KW) 14.3 11.3 15.4
Welding Current Range (A) 20-300 10-300 10-300
Welding Voltage Range (V) 15-26.5 10.4-22 20.4-32
I Max (A) 20.5 16.5 22.0
I eff (A) 15.9 12.8 17.0
Wire Diameter Range 0.6 – 1.6mm
Electrode Diameter Range 1.6 – 5mm
Protection / Insulation Class IP21S / S
Power Factor / Efficiency 0.99 / 85.8%
Thermal Overload Yes
Dimensions L72 x W26 x H49 cm/ 28.5kg
Weight 28.5 kg(A) / 30.5kg (W)
Warranty 3 Year
Part Number 658301

STANDARD PACKAGE INCLUSIONS:

  • BT PULSEMIG 300 Compact Inverter Welder 415V:  658302
  • BT 4 Wheel Trolley:  699577
  • Ergon BZ501 MIG Torch 3Mt:  92.ER.501.3
  • Twist Lock Electrode Holder 3Mt:  500044
  • Earth Clamp 300Amp 3Mt:  500060
  • Argon Twin Gauge Regulator:  400209T
  • Quick Connect Gas Hose 2Mt:  619000
  • Drive Roller 0.9/1.2mm V Groove (Fitted):  RV301012.09.12
  • Drive Roller 1.0/1.2mm U Groove Spare 2pcs:  RU301012.10.12
