Automatic Twin Straight Line Gas Cutting Machine

Share:
Price: $920.00

Collection: Gas Equipment,

Product Type: Gas Equipment

Brand Name: Unimig

Product Description

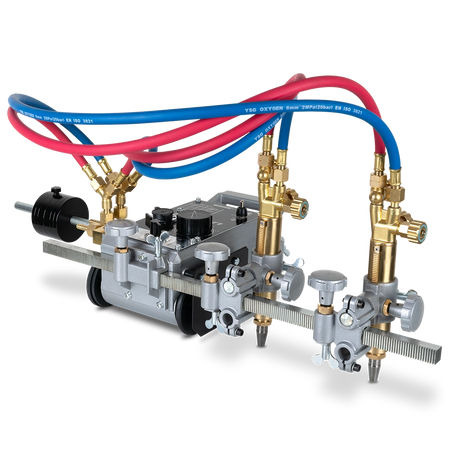

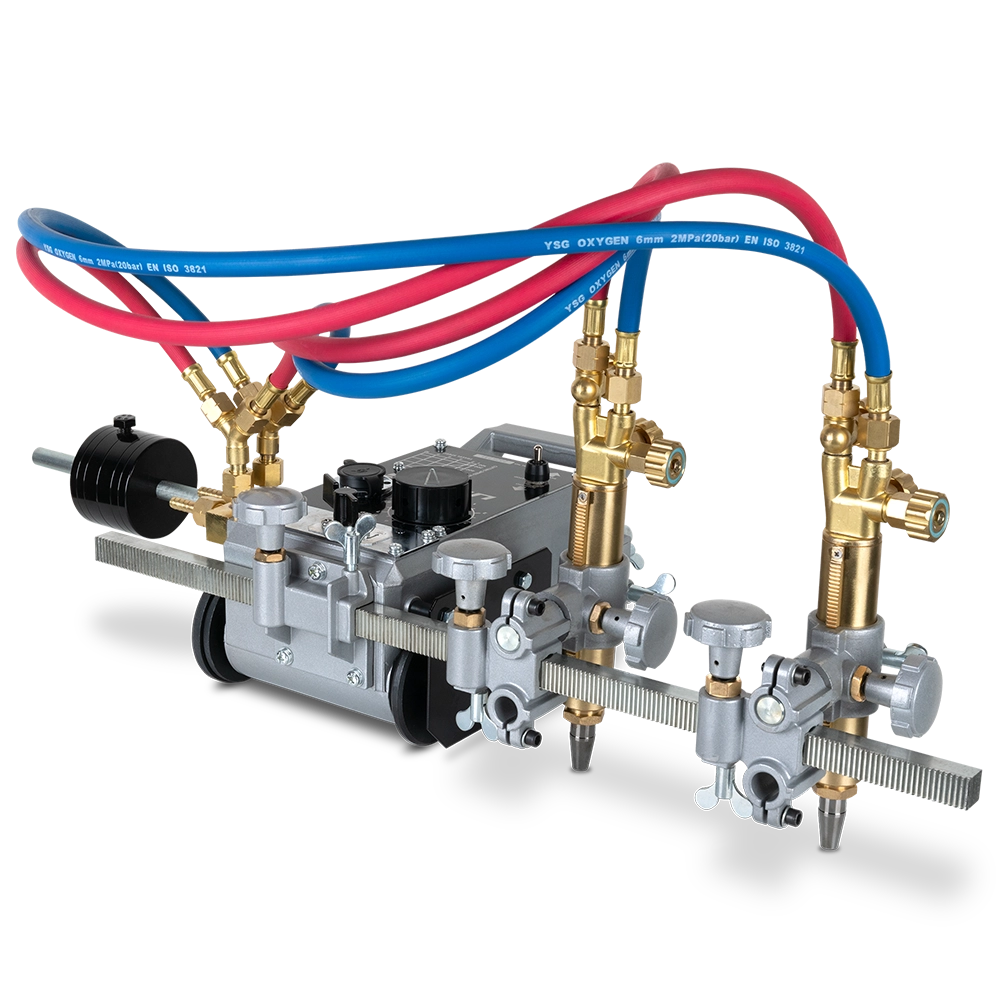

Unimig Automatic Twin Straight Line Gas Cutting Machine

The CG-30-TWIN is an affordable portable oxy fuel cutting machine. It is known around the world as one of the best portable cutting machines in the industry.

Features & Benefits

Single or Dual Torch Models - Performs high quality straight, circle and bevel cuts; single model includes 1 torch and 3 tips; dual model includes 2 torches and 6 tips; both include 1800mm (72in) rail


Stepless Drive System - Maintains constant travel speed even with high temperatures ensuring stable, trouble-free cutting


Multiple Use Oxy Fuel Machine - Performs straight line and optional circle oxy fuel cutting


Light Weight - 9.5 kgs (20.9 lbs), easy to carry and use yet rugged enough to be a true workhorse


Use on Radiagraph Track - Possible replacement for discontinued Radiagraph; user can use existing track


Extendable 1800mm (72in) Track Sections - Cut longer parts. 2 more pcs 1800mm tracks are recommended per set machine.


High Quality Tips - Superior design torch tips are included to ensure fast, smooth cuts


Optional Snap Valve - One-touch on/off gas valve


Model CG-30-TWIN
Cutting Capacity: 5 to 60 mm
Bevels: 0o to 45o
Straight Cuts: 1.8 m and multiples
Circle Cutting (Diameter): 30 to 2400 mm
Cutting Speed: 180 to 800 mm/min (50HZ)
100 to1000 mm/min (60HZ)
Torch: Injector Type to suit Acetylene / LPG
Gas Connection (Fuel LH & Oxygen RH): 1/4" G,91/6o
Gross Weight: 10 kgs w/1 torch.
14.5kgs w/2 torches
Dimensions W/O rail (m): 350x140x175
