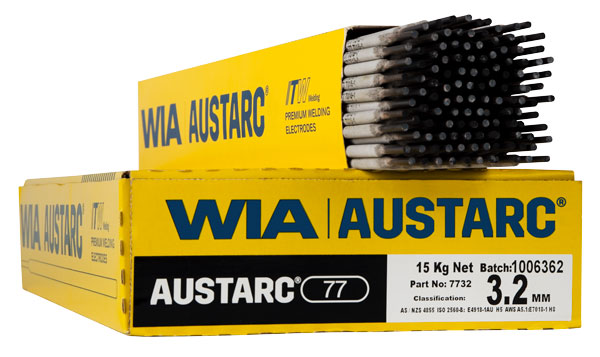

AUSTARC 77

Share:
Price: from $47.20

Collection: Consumables,

Product Type: Electrodes

Brand Name: WIA

Product Description

AUSTARC 77

SUMMARY

Basic Coated Iron Powder Electrode Low Hydrogen Status

Suitable for All Positional Welding Except Vertical Down Excellent Low Temperature Fracture Toughness
Easy to Strike and Re-Strike
Excellent Low Temperature Fracture Toughness

IDENTIFICATION
Coating - Light Grey Tip - Black Imprint - WIA 4918-1A

CLASSIFICATION - AS/NZS 4855-B - E49 18-1 A U H5 AWS A5.1: E7018-1 H8

DESCRIPTION AND APPLICATION

The Austarc 77 is a smooth running basic type of low hydrogen iron powder electrode used for all positional welding except vertical down. The arc is very quiet with little spatter and the welds are exceptionally smooth with excellent wash in at the toes of the weld, thus giving minimum undercut. This electrode is used where the highest restrained work pieces are fabricated for mining equipment, pressure vessels, heavy girders, earth moving plant, repair and maintenance etc.

For the highest weld quality with low hydrogen levels, Austarc 77 electrodes should be baked at 400 ̊C for one hour to obtain <5mL/100g weld metal. After baking, the electrodes should be used from a hot box set at 100 - 150 ̊C.

OPERATIONAL DATA

ELECTRODE SIZE (MM)

ELECTRODE LENGTH (MM)

WELDING CURRENT RANGE *(A)

ARC VOLTAGE RANGE **(V)

2.5

305

60 - 105

20

3.2

380

90 - 145

22

4.0

380

140 - 200

24

5.0

455

180 - 300

26



*Recommended for DC +/- or AC (minimum 70 OCV) operation. **Voltage is determined by arc current and electrode arc length. Arc voltage shown is typical and is only to be used as a guide.

SHIPPING APPROVAL - LR 4Ym H5 DNV 3Y H5



TYPICAL ALL WELD METAL CHEMICAL ANALYSIS

C

Mn

Si

P

S

Fe

0.06

1.40

0.36

0.015

0.006

Bal

TYPICAL ALL WELD METAL MECHANICAL ANALYSIS

Yield Stress

455 MPa

Tensile Strength

534 MPa

Elongation

30%

CVN Impact Values

123J @ -50°C

PACKAGING DATA

ELECTRODE SIZE (MM)

PACKAGING (KG)

APPROX. NO. OF RODS PER KG

PART NO.

PACKET

CARTON

2.5

2.2

11

48

7725

3.2

5.0

15

25

7732

4.0

5.0

15

17

7740

5.0

5.0

15

9

7750

The information contained or otherwise referenced herein is presented only

as “typical” without guarantee or warranty, and Welding Industries of Australia expressly disclaims any liability incurred from any reliance thereon. Typical data is obtained when welded and tested in accordance with the AWS and or AS/NZS specification. Other tests and procedures may produce different results. No data is to be construed as a recommendation for any welding condition or technique by Welding Industries of Australia.

Issue CA - December 2014
