AUSTARC 13S
SUMMARY
General Purpose Rutile Type Electrode
Versatile/All Positional (Especially Vertical Up) Capabilities
Ideal for Down Hand Fillet Welding of Mild Steel Smooth Performance on Low OCV AC Welding Machines
IDENTIFICATION
Coating - Blue/White Stripe Tip - Plain Imprint - WIA 4313A
CLASSIFICATION
AS/NZS 4855-B - E43 13A AWS A5.1: E6013
DESCRIPTION AND APPLICATION
Austarc 13S is the popular “blue and white striped” general purpose electrode for smooth mitre fillet welding applications. 13S has a soft and stable arc and produces flat, uniform fillet welds with ease and a self peeling slag action.
Austarc 13S is formulated primarily for fillet welding in all down hand positions. It is ideal for the general purpose and structural welding of sheet and plate steels (galvanised or otherwise) and tubular components, including trailers, duct work, hoppers and storage tanks, etc.
OPERATIONAL DATA
|
ELECTRODE SIZE (MM) |
ELECTRODE LENGTH (MM) |
WELDING CURRENT RANGE *(A) |
ARC VOLTAGE RANGE **(V) |
|
2.0 |
300 |
40 - 60 |
19 |
|
2.5 |
300 |
60 - 85 |
20 |
|
3.2 |
380 |
100 - 130 |
21 |
|
4.0 |
380 |
140 - 180 |
22 |
*Recommended for DC +/- or AC (minimum 45 OCV) operation. **Voltage is determined by arc current and electrode arc length. Arc voltage shown is typical and is only to be used as a guide.
SHIPPING APPROVAL - LR 2m ABS 2 DNV 2
TYPICAL ALL WELD METAL CHEMICAL ANALYSIS
|
C |
Mn |
Si |
P |
S |
Fe |
|
0.07 |
0.48 |
0.41 |
0.016 |
0.005 |
Bal |
TYPICAL ALL WELD METAL MECHANICAL ANALYSIS
|
C |
Mn |
Si |
P |
S |
Fe |
|
0.07 |
0.48 |
0.41 |
0.016 |
0.005 |
Bal |
In as welded condition.

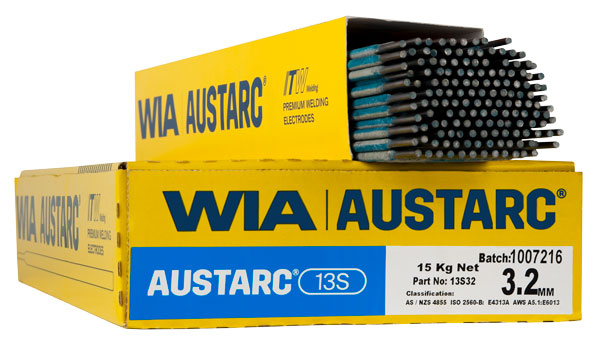

PACKAGING DATA
|
ELECTRODE SIZE (MM) |
PACKAGING (KG) |
APPROX. NO. OF RODS PER KG |
PART NO. |
|
|
PACKET |
CARTON |
|||
|
2.0 |
2.5 |
12.5 |
99 |
13S20 |
|
2.5 |
2.5 |
12.5 |
64 |
13S25 |
|
3.2 |
5.0 |
15 |
31 |
13S32 |
|
4.0 |
5.0 |
15 |
20 |
13S40 |
The information contained or otherwise referenced herein is presented only
as “typical” without guarantee or warranty, and Welding Industries of Australia expressly disclaims any liability incurred from any reliance thereon. Typical data is obtained when welded and tested in accordance with the AWS and or AS/NZS specification. Other tests and procedures may produce different results. No data is to be construed as a recommendation for any welding condition or technique by Welding Industries of Australia.
Issue CA - December 2014
