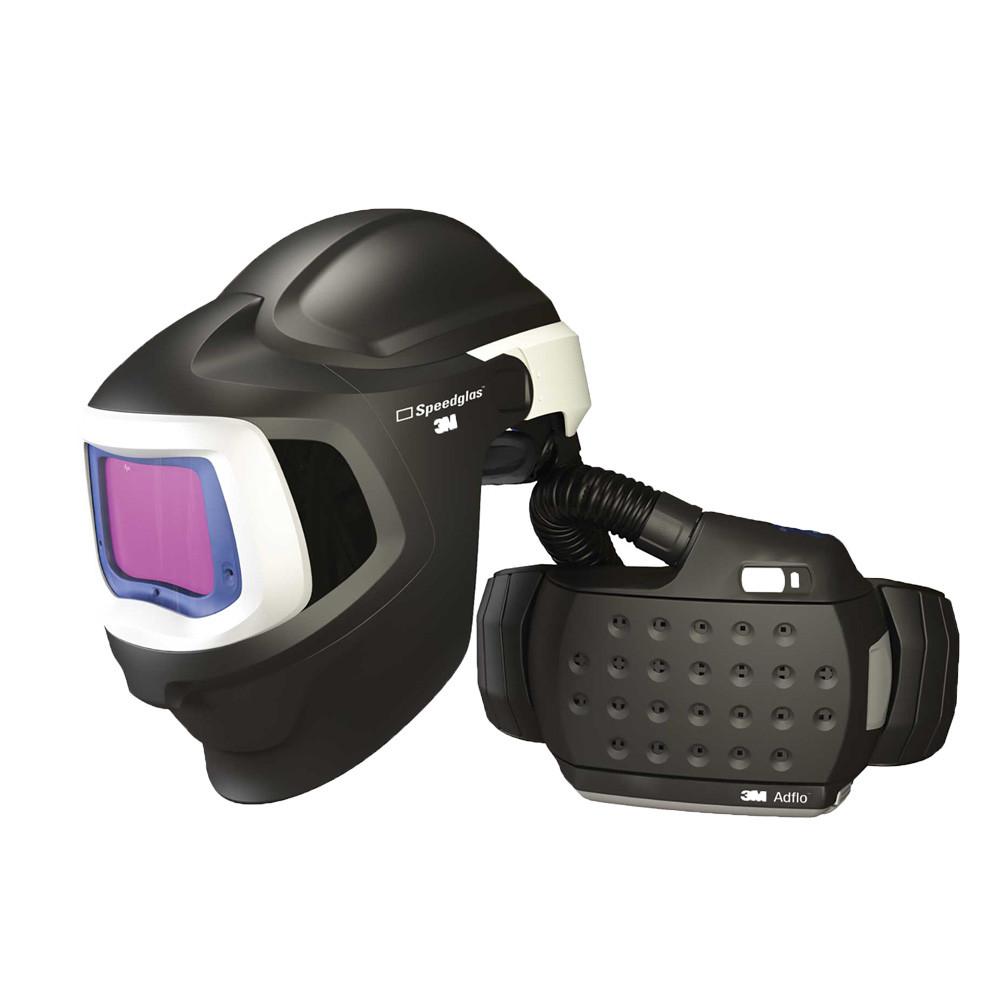

3M Speedglas 9100XXi MP Welding & Safety Helmet with Adflo PAPR Heavy Duty Part No. 577726HD

Speedglas 577726HD 9100XXi MP Air Welding And Safety Helmet With Heavy Duty Adflo PAPR

With a design and ergonomic features unlike any other, the Speedglas 9100XXi MP Air Welding Helmet provides welders with comprehensive protection. It seamlessly integrates eye, face, head, hearing, and respiratory protection, all while meeting Australian & NZ safety standards. Additionally, it ensures ultimate comfort, making long welding sessions more manageable. Now equipped with the Speedglas 9100XXi welding lens, it features a built-in motion detector and True-View technology, offering unparalleled optical clarity.

Moreover, this helmet boasts the largest viewing area currently available, especially when combined with the Speedglas SideWindows. This expanded field of vision helps welders stay more aware of their surroundings, improving both safety and efficiency. The flip-up mechanism further enhances usability by revealing a 170 x 100mm clear grinding visor. As a result, welders can switch seamlessly between welding and grinding tasks without removing their helmet.

In addition, the helmet maintains consistent respiratory protection, thanks to the award-winning 3M™ Adflo™ powered air respirator. Notably, it now includes a Heavy Duty battery, ensuring longer-lasting protection for extended shifts. Consequently, welders experience less downtime, allowing them to focus on their work with greater confidence and safety.

Speedglas 9100XXi MP Air Welding Helmet Features & Benefits

• New upgraded Adflo PAPR is super light with rapid charge
• Comfortable safety helmet provides overhead protection (AS/NZS1801)
• Flip-up mechanism reveals a clear high impact grinding visor (AS/NZS1337.1)
• Optional hearing protection (AS/NZS1270)
• Made in Sweden with Auto-On
• Largest viewing area on the market with peripheral SideWindows
• New True-View for colour and contrast
• Highest possible optical classification (1/1/1)
• Advanced TST (TIG Sensor Technology) down to industry leading 1 amp
• Centre photo-sensor for TIG
• Peripheral SideWindows for enhanced vision
• Weld, Cut, Grind, Hidden Arc, Outdoor, Passive and Tack
• Shades 5, 8, 9-13 with a light shade of 3 (AS/NZS1338.1)
• Required minimum protection factor of 50
• Revolutionary powered airflow delivery results in improved respiratory protection and comfort (AS/NZS1716)
• Two adjustable air flow settings 170/200 litres per minute
• Compliant with all relevant Australian & New Zealand standards

Specifications:

• Relevant Welding Helmet Standards: Eye Protection - AS/NZS1338.1, Face Protection - AS/NZS1337.1 (High Impact), Head Protection - AS/NZS1801, Optional Hearing Protection - AS/NZS1270, Respiratory Protection - AS/NZS1716
• Speedglas TrueView Welding Lens: Yes
• Stick Welding: Yes
• MIG Welding: Yes
• TIG Welding: Yes (industry leading detection down to 1 Amp)
• Grinding Featur:e: Large Clear Grinding Visor (Flip-Up)
• SideWindow Peripheral Vision: Yes
• Hidden Arc Mode: Yes
• Welding Lens Viewing area: 73 x 107mm + SideWindows
• Auto Darkening Lens Classification: 1/1/1 & TrueView
• Variable Dark Shades: Shade 5, 8, 9-13
• Light State: TrueView Shade 3
• UV Protection: Shade 13 (permanent)
• Switching time, light-dark: 0.1 ms (+23 C)
• Delay (switching time, dark-light): 40-800 ms
• Comfort Exhaust Vents:    No (positive pressure seal for powered air)
• Head Harness: N/A
• Safety Helmet: Yes
• Required minimum protection factor: 50
• Air flow Level: 170 & 200 l/min
• Adflo Battery Run Time: 12 hours
• Adflo Battery Charge Time: 1 hour rapid charge (80% capacity), 5.5 hours complete

Summary

The upgraded Adflo PAPR is now lighter than ever and features rapid charging for extended use. Paired with a comfortable safety helmet, it provides overhead protection (AS/NZS1801) while ensuring all-day comfort. The flip-up mechanism reveals a high-impact grinding visor (AS/NZS1337.1), allowing seamless transitions between tasks. Additionally, optional hearing protection (AS/NZS1270) is available, ensuring comprehensive safety in demanding work environments.

Made in Sweden, this helmet features Auto-On technology for added convenience. It offers the largest viewing area on the market, enhanced by peripheral SideWindows for increased situational awareness. The new True-View technology improves colour and contrast, while the highest possible optical classification (1/1/1) ensures exceptional clarity. Advanced TIG Sensor Technology (TST) detects arcs down to 1 amp, supported by a centre photo-sensor for superior TIG welding performance.

With multiple shade options (5, 8, 9-13) and a light shade of 3 (AS/NZS1338.1), this helmet is designed for welding, cutting, grinding, and more. The Adflo PAPR system delivers powered airflow at adjustable rates (170/200 LPM), significantly improving respiratory protection (AS/NZS1716). Compliant with all Australian & New Zealand standards, it provides a minimum protection factor of 50, ensuring maximum safety and performance.
